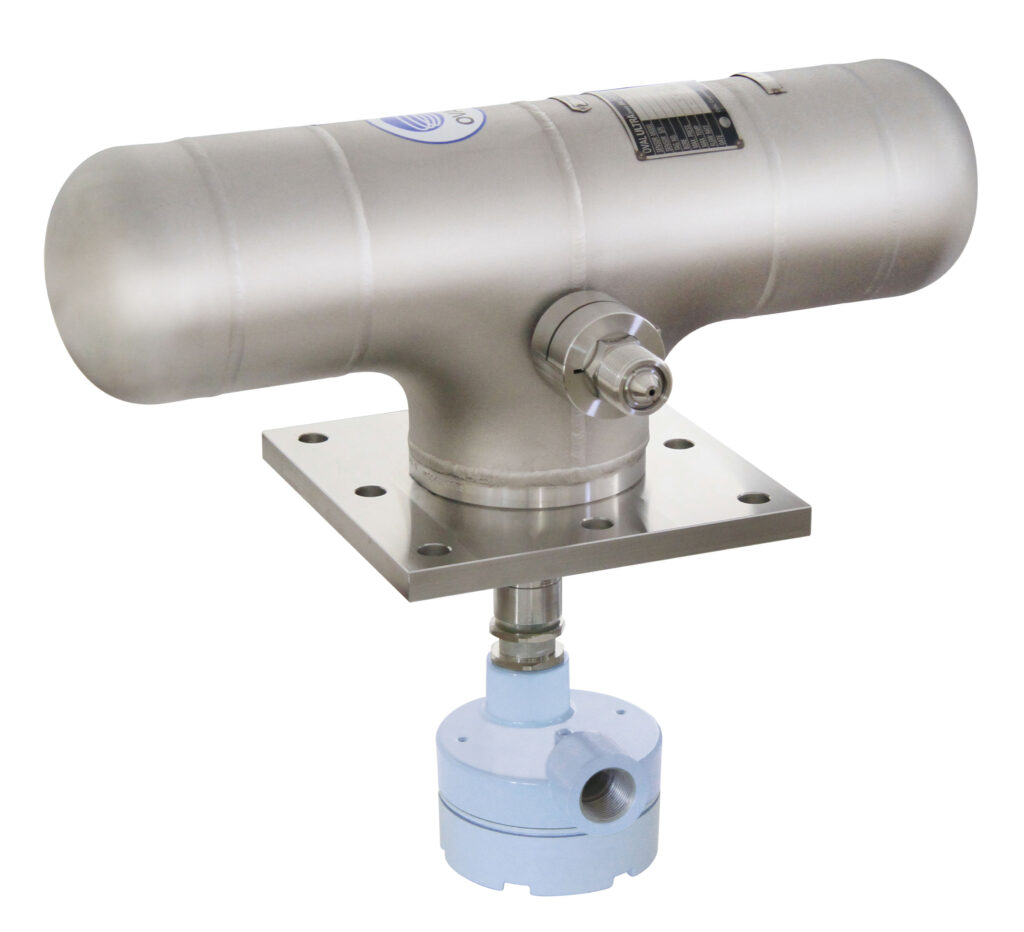

120MPa High-Pressure Coriolis Flowmeter
The 120MPa Super High-Pressure Coriolis Flow Meter is engineered for hydrogen society applications, offering direct mass flow measurement with exceptional accuracy. Its robust, weld-free design ensures reliability under extreme pressure, supporting both liquid and gas measurement across a wide range. With minimal pressure loss, accurate temperature sensing, and easy-to-clean branch-less flow paths, it is ideal for demanding R&D, energy, and industrial environments.● The maximum operating pressure is 120MPa. ● It is suitable for high-pressure hydrogen measurement. ● Wide flowrate range (2.4 to 300Kg/h) ● No welded point: Highly reliable structure suitable for high-pressure gas measurement. ● Accepts both liquid and gas. Measures a wide flowrange accurately with low pressure loss. ● Measures temperature accurately besides mass flow rate. ● Branch-less flow path design offers ease of cleaning.
Applicable fluid
✅Water
✅Hydrogen
✅Other
| Nominal size | 9/16″ | |||
| Applicable fluids | Liquid and Gas | |||
| Flow range | 2.4 to 300kg/h | |||
| Mass flow measurement range | Accuracy | ±0.125% of max. allowable rate (Less than 9.6kg/h) | ||
| ±0.5% of RD (9.6kg/h or above to 300kg/h or less) | ||||
| Repeatability | ±0.0625% of max. allowable rate (Less than 9.6kg/h) | |||
| ±0.25% of RD (9.6kg/h or above to 300kg/h or less) | ||||
| Explosionproof specification | TIIS, ATEX, IECEx, KCs, CSA, EAC, NEPSI | |||
| Dusttight, waterproof configuration | IP67 | |||
| Transmitter configuration | Integrally mounted model or Separately mounted model, Rack-mount transmitter | |||
| Temperature range | Structural rating | −40 to +130℃ | ||
| Max. operating pressure | 120MPa (at 93℃) | |||
| Materials | Wetted parts | TPXM-19 UNS S20910 SA-312 | ||
| Housing | SUS304 | |||
| Power supply | AC or DC | |||
| Output | Flowrate, Temperature, Status | |||
