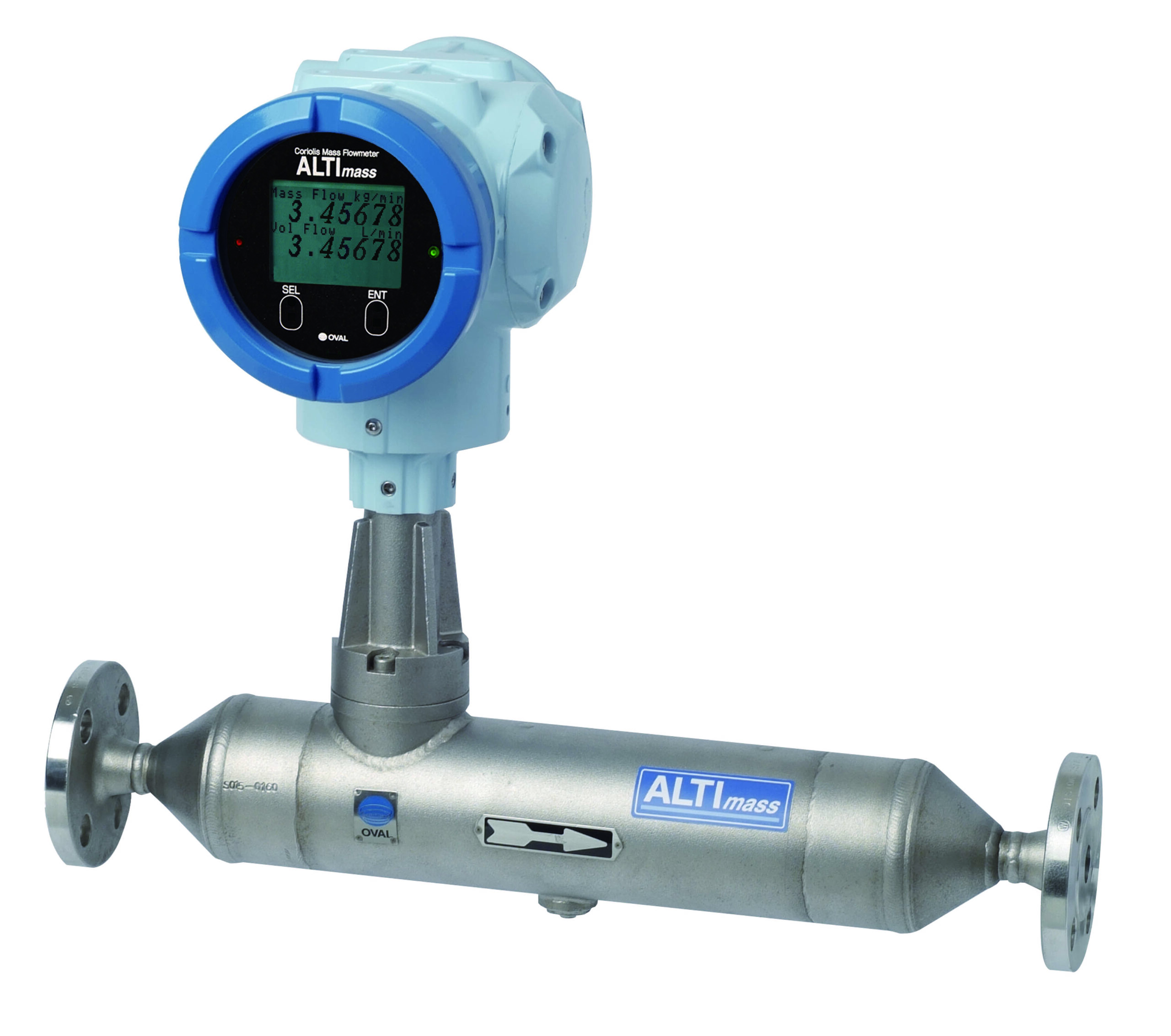

OVAL ALTImass Type S Straight-Tube Coriolis Flowmeter

Titanium-alloy, single straight-tube Coriolis flowmeter for liquid processes requiring straightforward draining and product changeover.

The OVAL ALTImass Type S uses a vibration-resistant, single straight-tube measuring structure. It is designed for liquid processes where material can accumulate, solidify or require complete replacement between production batches. Its straight-through measuring path simplifies flow-path cleaning and draining compared with more complex tube geometries.

Six models, from CS010 to CSR50, cover nominal sizes of 10 to 80 mm and a combined published flow capacity of up to 91,800 kg/h. The manufacturer lists liquid mass-flow accuracy as ±0.15% of reading plus the zero-stability error; the final uncertainty depends on operating point and installation.

The transmitter provides local zero-point adjustment, error logs, sensor-disconnection monitoring, pipeline-vibration checks and parameter backup. Select connections, process temperature and explosion-proof certification to match the liquid, piping and installation conditions.

Single straight tubeTitanium-alloy, drainable measurement path
91,800 kg/hMaximum published flow across six models
±0.15% RDPlus zero-stability error
10–80 mmNominal connection sizes across the series

Straight-tube geometry

Helps with product replacement, cleanout and drain-down in liquid lines.

Titanium-alloy wetted path

Offers a defined material option for compatibility engineering.

Six sensor sizes

CS010, CS015, CS025, CS040, CS050 and CSR50 span multiple process duties.

Zero-point adjustment

Local transmitter settings support zero adjustment during commissioning and maintenance.

Diagnostic and error logs

Supports troubleshooting through sensor, vibration and error-status checks.

Parameter backup

Stores operating settings in the display unit and supports recovery of configured parameters.

Liquid Batch Changeover

Support lines requiring repeatable draining between liquid batches.

Viscous or Depositing Liquids

Evaluate a straight tube where fluid buildup and cleaning are important.

Chemical Process Monitoring

Measure mass flow of compatible liquid chemicals.

Water and Utility Liquids

Monitor water flow and related liquid utility services.

Cleaning-Sensitive Process Lines

Specify a straight measurement path for equipment with frequent cleanout.

Plant Flowmeter Maintenance

Use transmitter error logs and vibration checks during troubleshooting.

SpecificationDetails
Sensor modelsCS010, CS015, CS025, CS040, CS050, CSR50
Nominal sizes10, 15, 25, 40, 50, 80 mm
Applicable fluidsLiquids
Combined series flow range0 to 91,800 kg/h; model-dependent maximum
Mass-flow accuracy±0.15% of reading (RD) plus zero-stability error
Operating-fluid temperature−40 to +130°C; explosion-proof specification may affect range
Wetted materialsTitanium alloy
Process connectionsJIS 10/20K RF; ASME 150 RF; JPI 150 RF; ferrule
Maximum operating pressureDepends on selected flange/connection rating
Transmitter diagnosticsInput signal (sensor) check; pipeline-vibration check; error log
Zero adjustmentVia transmitter front-key operation or adjustment button
Configuration recoveryParameter backup and factory-default reloading supported
Explosion-proof approvals listedJPEx, ATEX, IECEx, KCs, CSA, NEPSI, ITRI; check model and regional approval

The original description lists liquids, gases and steam, but the manufacturer’s Type S general specifications list liquids. Temperature and pressure limits are configuration-specific. Do not use ALTImass II PLUS Type S optional density accuracy or transmitter features on this page.
