$2,140

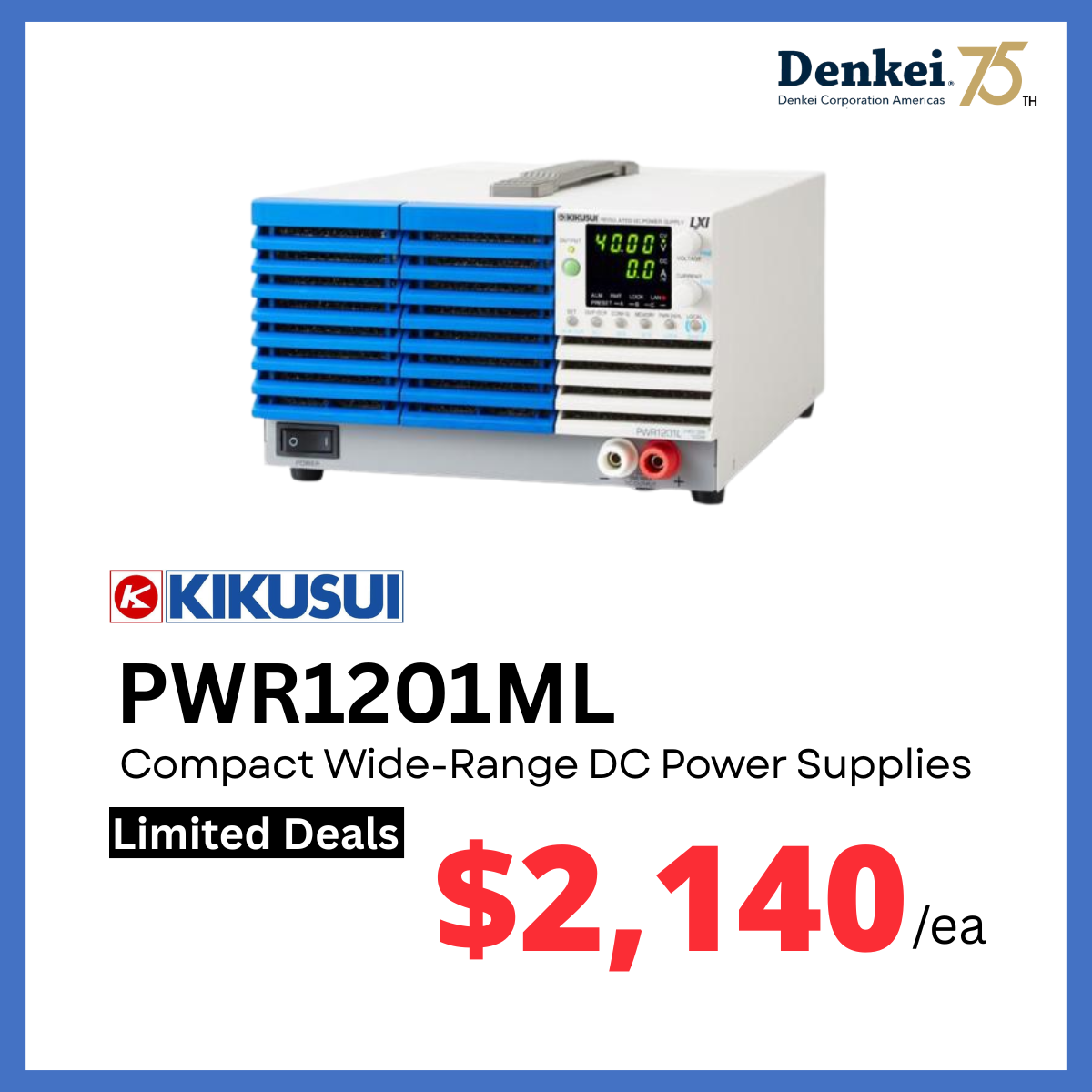

The KIKUSUI PWR1201ML is a 1200 W compact wide-range programmable DC power supply rated for 0 to 80 V and 0 to 60 A.
It combines CV/CC operation with sequence programming, variable internal resistance, VMCB multi-channel control, remote sensing, and standard LAN, USB, and RS232C interfaces for bench and automated test applications.
The KIKUSUI PWR1201ML is a compact programmable DC power supply delivering up to 1200 W with rated output of 80 V and 60 A for flexible CV/CC power delivery across a wide operating range.
The PWR1201ML combines wide-range output capability with programmable sequence control, variable internal resistance, remote sensing, output timing functions, and digital interfaces for both standalone laboratory use and automated test systems.
A universal 85 Vac to 265 Vac input range simplifies installation across different AC supply environments, while remote sensing, configurable protections, soft start/stop, output delay, and preset memory support repeatable test-system operation.
Provides rated output of 0 to 80 V and 0 to 60 A within a 1200 W power envelope, reducing the need for multiple fixed-range supplies across different voltage and current requirements.
Maximum settings are 84 V and 63 A. Voltage setting accuracy is ±(0.05% of setting + 0.05% of rating), while current setting accuracy is ±(0.5% of setting + 0.1% of rating).
The PWR1201ML specifies 5 mVrms / 50 mVp-p CV ripple noise, ±10 mV line regulation, ±10 mV load regulation, and 120 mArms current ripple noise.
Stores one sequence program with up to 64 steps. Step times can be programmed from 0.1 seconds to 100 hours, with repetition, interval loops, ramp transitions, and triggered synchronization.
In CV mode, programmable internal resistance from 0.001 Ω to 1.333 Ω allows the output behavior to be adjusted for applications requiring a defined source resistance characteristic.
The Virtual Multi-Channel Bus function allows a PC to control a group of PWR-01 supplies through a single master connection, simplifying network-based multi-channel systems.
Remote sensing compensates for voltage drop in load wiring, with up to 4 V compensation per sensing line on the PWR1201ML. Output delay and soft start/stop functions provide additional control over power application and removal.
LAN with LXI support, USB, and RS232C are standard. GPIB control can be added using the optional PIA5100 converter.
| Model | PWR1201ML |
|---|---|
| Product Type | Compact Wide-Range Programmable DC Power Supply |
| Operating Modes | Constant Voltage (CV) / Constant Current (CC) |
| Rated Output Power | 1200 W |
| Rated Output Voltage | 0 to 80 V |
| Rated Output Current | 0 to 60 A |
| Maximum Settable Voltage | 84 V |
| Maximum Settable Current | 63 A |
| Voltage Setting Accuracy | ±(0.05% of setting + 0.05% of rating) |
| Current Setting Accuracy | ±(0.5% of setting + 0.1% of rating) |
| CV Line Regulation | ±10 mV |
| CV Load Regulation | ±10 mV |
| CC Line Regulation | ±8 mA |
| CC Load Regulation | ±17 mA |
| CV Ripple Noise | 5 mVrms / 50 mVp-p |
| CC Ripple Noise | 120 mArms |
| CV Transient Response | 2 ms or less |
| Remote Sensing Compensation | Up to 4 V per line |
| Variable Internal Resistance | 0.001 Ω to 1.333 Ω (CV mode) |
| Internal Resistance Resolution | 0.001 Ω with FINE |
| Sequence | 1 program / 64 steps |
| Sequence Step Time | 0.1 s to 100 h |
| Sequence Repetition | 1 to 99,998 or infinite |
| Preset Memory | 3 sets |
| Standard Interfaces | LAN / USB / RS232C |
| GPIB | Optional via PIA5100 converter |
| Nominal AC Input | 100 to 240 Vac, 50/60 Hz, single phase |
| AC Input Voltage Range | 85 to 265 Vac |
| Input Frequency Range | 47 to 63 Hz |
| Dimensions (W × H × D) | 214 × 124 × 350 mm (8.43 × 4.88 × 13.78 in) |
| Weight | Approx. 7.5 kg (16.54 lb) |
Maximum voltage and current settings cannot be used simultaneously beyond the 1200 W output power limit. Specifications are defined at the rear-panel output terminals unless otherwise stated.
The PWR1201ML combines onboard sequence execution with synchronized operation and VMCB multi-channel control for automated DC power systems.
A sequence program can contain up to 64 steps with step times from 0.1 seconds to 100 hours. Programs are created through a communication interface and can then be executed from either the front panel or remote control.
LAN, USB, and RS232C are standard interfaces. WAVY software for PWR-01 is available separately for graphical sequence creation and control, while SCPI-based control can also be integrated into custom automated test software.
