Delivering High Accuracy Performance Over a Measurement Band 40 Times Broader than Legacy Models

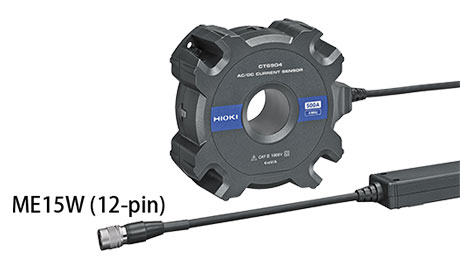

U.S.-based sales, and delivery available. Hioki pull-through AC/DC current sensors are best-in-class devices for use with power analyzers,, Memory HiCorders and high performance oscilloscopes. The AC/DC Current Sensor CT6904 is a DC to 4 MHz/500A sensor, ideal for capturing current signals from switching power supplies, inverters, power conditioners, etc. CAT III 1000 V• 500 A (rms) rated for measurement of large currents • DC to 4 MHz (±3 dB) wide measurement frequency range • ±10 ppm excellent linearity • 120 dB (100 kHz) high Commona-Mode Rejection Ratio (CMRR) • ±0.04% power accuracy in combination with the Hioki Power Analyzer PW6001
| Rated current | 500 A AC/DC | |||||
|---|---|---|---|---|---|---|
| Max. allowable input | 550 A (requires derating at frequency, However, up to ±1000 A peak is allowable if within 20 ms (design value) | |||||
| Frequency characteristics | Amplitude: DC to 4 MHz Phase: DC to 1 MHz | |||||
| Linearity | ±10 ppm Typical (23°C (73°F)) | |||||
| Offset voltage | ±10 ppm Typical (23°C (73°F), no input) | |||||
| Amplitude and Phase accuracy | DC (±0.025 % rdg. ±0.007 % f.s.) 45 Hz ≤ f ≤ 65 Hz (±0.02 % rdg. ±0.007 % f.s., Phase: ±0.08°) Defined to 1 MHz | |||||
| Output voltage rate | 4 mV/ A (2 V / rated current value) | |||||
| Core diameter | φ 32 mm (1.26 in) | |||||
| Operating temperature, humidity | -10°C to 50°C (14°F to 122°F) 80% RH or less (with no condensation) | |||||
| Power supply | Power supplied from PW6001, PW3390, and CT9555* | |||||
| Power consumption | 7 VA Max. (500 A/55 Hz measurement, with a power supply of ±12 V) | |||||
| Dimensions and mass | 139 mm (5.47 in)W × 120 mm (4.72 in)H × 52 mm (2.05 in)D, 1 kg (35.3 oz), cord length: 3 m (9.84 ft) (excluding protrusions and cables) | |||||
| Included accessories | Instruction manual ×1, Carrying case ×1, Color labels (for channel identification) ×1 | |||||
ACCURACY GUARANTEED FOR 1 YEAR
