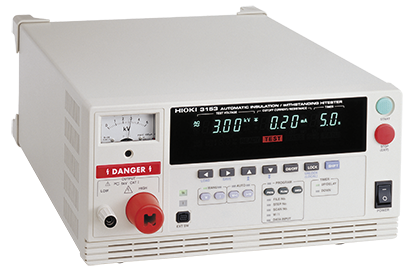

HIOKI 3153 Automatic Insulation / Withstanding HiTESTER

HIOKI
Type: Electrical Safety Tester
Supplier / Manufacturer: HIOKI
Model: 3153

Industries & Applications:
Production TestingQuality Control
Contact Us

0.2 kV to 5 kV AC Programmable and Fully Remote Controllable Automatic Hipot Tester

U.S.-based sales, and delivery available. The Hioki electrical safety testers are designed for insulation resistance and voltage withstand testing of electrical devices and components according to various safety standards. The 3153 is an automatic insulation and AC/DC voltage withstanding tester that fully supports automated testing.

• Programmable insulation (50 to 1,200 V DC) and dielectric strength (AC/DC) testing • Program up to 32 files of test types, test points (50 steps), and measurement settings • Optional scanner for multipoint automatic testing • Uses the PWM method to generate accurate test voltages that do not depend on the supply voltage • Ramp timer function for increasing or decreasing the applied voltage during dielectric strength testing at user-specified times
