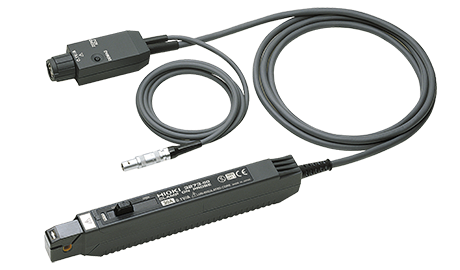

HIOKI 3273-50 Clamp On Probe

50 MHz Wideband AC/DC Current Probe for Oscilloscope Measurements

The HIOKI 3273-50 is a clamp-on AC/DC current probe for viewing fast transient current waveforms, with DC-to-50 MHz bandwidth and a 30 A rms continuous input rating subject to frequency derating.

Its magnetic-shield design and thin-film Hall sensing help reduce interference when measuring low-level currents near switching equipment. A nominal 0.1 V/A output connects to a suitable oscilloscope or recorder BNC input.

DC–50 MHz Rated frequency bandwidth (−3 dB)
30 A rms Continuous allowable input; frequency dependent
≤7 ns Specified rise time
0.1 V/A Output conversion rate

A 5 mm conductor aperture and noise level of 2.5 mA rms maximum (at 20 MHz bandwidth) make the probe suitable for compact power electronic circuits and measurements down to the 10 mA range under appropriate conditions.

Use a compatible ±12 V probe supply such as the HIOKI 3269 or 3272 when the measuring instrument cannot supply power. Use an oscilloscope or recorder with at least 1 MΩ input impedance; take care when connecting the metal BNC connector to plastic recorder inputs.

DC-to-50 MHz Measurement Bandwidth

Captures both steady DC currents and rapid switching-current components up to the specified −3 dB bandwidth.

30 A rms Current Capability

Measures up to 30 A rms continuously, with frequency-dependent derating and a 50 A peak non-continuous limit.

Fast Transient Response

Rise time of 7 ns or less supports observation of rapid current transitions in power electronics.

Low-Noise Sensing Design

Thin-film Hall detection and magnetic shielding help maintain signal clarity near high-current conductors.

Direct BNC Signal Output

Provides 0.1 V/A output for compatible oscilloscope or recorder inputs of 1 MΩ or higher.

External Power Supply Options

Operates with a compatible 3269 or 3272 probe power supply when instrument-supplied power is unavailable.

Switching Power Supply Design

Observe inductor and switch currents during converter development and troubleshooting.

Inverter Current Waveforms

Capture switching waveforms and transient behavior during inverter verification.

Motor Controller Development

Analyze short-duration current events within motor drive electronic circuits.

Wideband Oscilloscope Measurements

Measure AC and DC current over a broad bandwidth without inserting a series shunt.

Low-Level Current Waveform Observation

Use the probe’s high signal-to-noise design for milliamperes-range waveform characterization.

Power Electronics R&D

Compare switching and transient current behavior across prototype revisions.

SpecificationDetails
Model3273-50
Sensor TypeClamp-on AC/DC current probe
Frequency BandwidthDC to 50 MHz (−3 dB)
Rise Time7 ns or less
Continuous Allowable Input30 A rms; frequency derating required
Non-Continuous Peak Limit50 A peak
Amplitude Accuracy±1.0% rdg. ±1 mV f.s. at DC or 45–66 Hz, 0–30 A rms (specified conditions)
Output Conversion Rate0.1 V/A
Noise Level2.5 mA rms maximum, limited to 20 MHz bandwidth
Measurable ConductorInsulated conductor
Maximum Conductor Diameter5 mm
Measurement Instrument Input1 MΩ or higher
Power Requirement±12 V ±0.5 V, 5.6 VA maximum
Compatible External Supply3269 or 3272
Sensor Dimensions175 W × 18 H × 40 D mm
Sensor MassApprox. 230 g
Sensor Cable Length1.5 m (BNC)
Power Cable Length1 m
Included AccessoriesInstruction manual and soft case

The 30 A rms continuous rating is subject to frequency derating. A suitable external probe power source and high-impedance instrument input are required. Take care with metal BNC connectors on plastic inputs.
