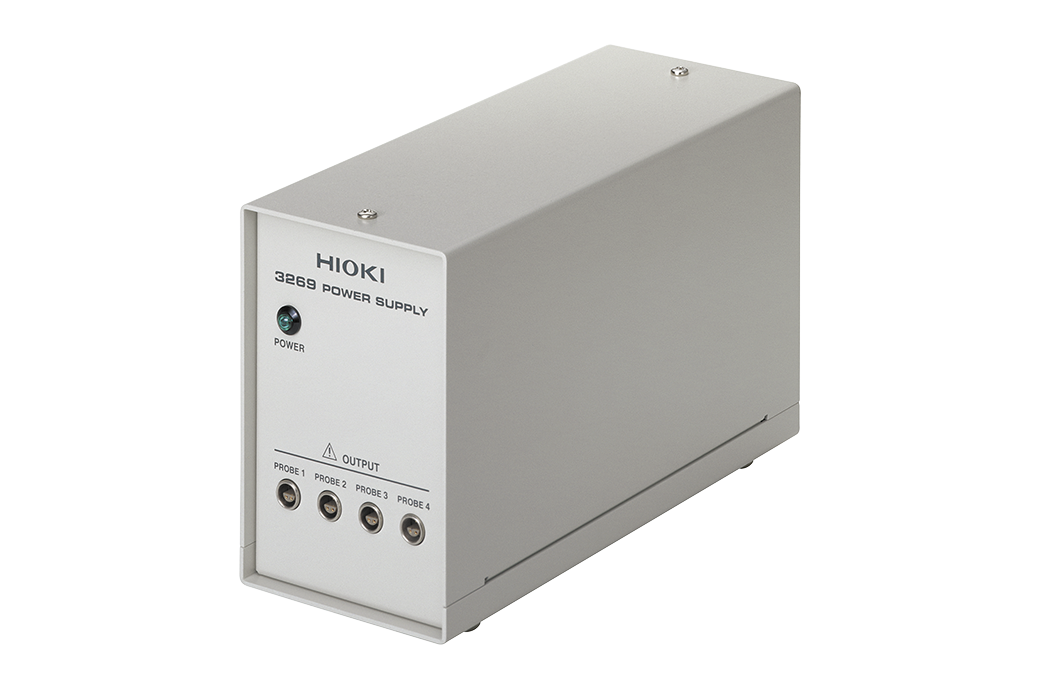

For Probes 3273-50, 3276, CT67000 Power Supply Unit for Outputting Current Probe Signals to Memory HiCorders and Oscilloscopes
U.S.-based sales, and delivery available. Hioki flat bandwidth current probes are best-in-class current sensors for use with Memory HiCorders and high performance oscilloscopes. The 3269 is a 4 channel power supply for outputting signals measured by the 3270 Series AC/DC Clamp On Probe to the data acquisition equipment.- Power supply for the Clamp on probe 3273-50 - 3276, CT6700 and CT610 series
- Supplies power when connected to a general-purpose instrument such as a recorder
| Compatible sensors | The CT6710, CT6711: up to 2 units | |||||
| The CT6700, CT6701, 3273-50, 3274, 3275 or 3276: up to 4 units | ||||||
| Note: Also up to 4 units for the discontinued Model 3273 | ||||||
| Number of power supply connectors | 4 | |||||
| Output | ±12 V ±0.5 V, ±2.5 A | |||||
| (sum total of all channels) | ||||||
| Power supply | 100 V to 240 V AC (free) 50/60 Hz 170 VA max. | |||||
| Dimensions and mass | 80 mm (3.15 in)W × 119 mm (4.69 in)H × 200 mm (7.87 in)D, 1.1 kg (38.8 oz) | |||||
| Accessories | Instruction manual ×1, Power cord ×1 | |||||
