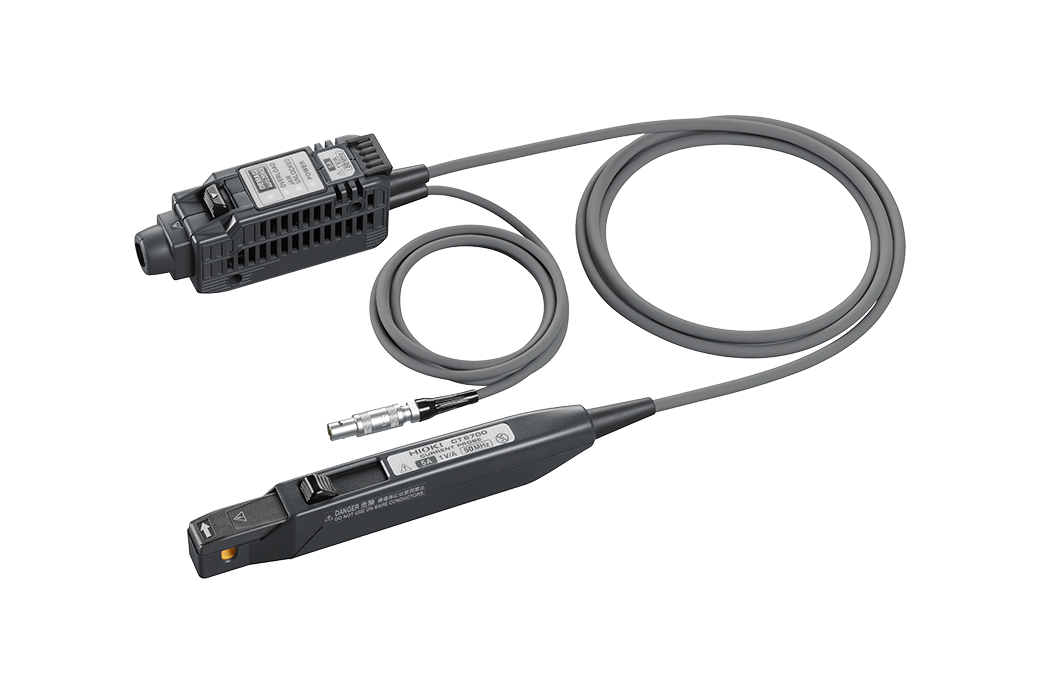

HIOKI CT6700 Current Probe

HIOKI
Type: Current Probe
Supplier / Manufacturer: HIOKI
Model: CT6700

Industries & Applications:
Power & EnergyR&D
Contact Us

High S/N characteristic ideal for ultra low 1 mA order current waveforms Clearly Observe Even 1 mA Waveforms

U.S.-based sales, and delivery available. Hioki flat bandwidth current probes are best-in-class current sensors for use with Memory HiCorders and high performance oscilloscopes. The CT6700 is a high-sensitivity current probe that offers a wide DC to 50 MHz bandwidth and 5A of continuous input, and applications include capturing transient current signals from switching power supplies, inverters, and motor controllers. The probe is designed with a high permeability magnetic shield to reduce the effects of electric fields, making it ideal for measuring low currents or nearby high-current lines.
  • Wide band: DC to 50 MHz (-3 dB)
  • High S/N characteristic ideal for ultra low 1 mA order current waveforms
  • Connect directly to an oscilloscope’s BNC input terminal (*1)
Frequency bandwidth DC to 50 MHz (-3 dB)
Rise time 7.0 ns or shorter
Noise level 60 μA rms typical, 75 μA rms max (for 30 MHz band measuring instrument)
Continuous allowable input 5 A rms (DC, and sine wave, requires derating at frequency)
Max. allowable peak input ±7.5 A peak (non-continuous)
Amplitude accuracy Typ.: ±1% rdg. ±1 mV (DC, 45 to 66 Hz sine wave, 0 to 5 A rms)
Guaranteed: ±3% rdg. ±1 mV (DC, 45 to 66 Hz sine wave, 0 to 5 A rms)
Output rate 1 V/A (The output of this probe is internally terminated)
Measurable conductors Insulated conductor
Core diameter φ 5 mm (0.20 in)
Power supply ±12 V ±0.5 V, 3.2 VA
Dimensions and mass Sensor: 155 mm (6.10 in)W × 18 mm (0.71 in)H × 26 mm (1.02 in)D, Terminator: 29 mm (1.14 in)W × 83 mm (3.27 in)H × 40 mm (1.57 in)D mm, Mass: 250 g (8.8 oz), Sensor cable BNC terminal: 1.5 m (4.92 ft), Power cable: 1 m (3.28 ft), Power plug: FFA.0S.304.CLAC37Y / LEMO inc.
Accessories Instruction manual ×1, Carrying case ×1
