HDMI 2.1 Generator
ASTRODESIGN VG-887 HDMI 2.1 Signal Generator
Compact HDMI 2.1 signal generator supporting FRL and TMDS workflows for R&D, quality assurance, and production-oriented display testing.
View VG-887HDMI · DisplayPort · Protocol · Video Generation
HDMI & Display Interface Testing Solutions
Explore ASTRODESIGN solutions for HDMI signal generation, protocol analysis, automated source testing, DisplayPort, and multi-interface video validation.
Start with the device or interface behavior you need to test, then select the generation, analysis, or automated validation platform that fits your workflow.
FIND YOUR SOLUTION
What do you need to test?
Choose the signal-generation, protocol-analysis, source-testing, or multi-interface workflow that best matches your development requirement.
Selected solution
HDMI Signal Generation
HDMI video signal generation
HDMI Signal Generation & Sink Evaluation
Generate repeatable HDMI video signals for display development, sink-device evaluation, high-resolution video testing, and HDMI interface validation.
Typical applications
- HDMI 2.1 display development
- 8K and 4K/120p evaluation
- Television and monitor testing
- HDMI sink-device development
Recommended for this solution
Recommended Products
Modular Video Generator
ASTRODESIGN VG-879-B Digital Video Generator
Modular digital video generator for configurable HDMI and other professional video-interface testing environments.
View VG-879-B
Configurable Platform
ASTRODESIGN LS-8500 Universal Video Generator / Analyzer
Configurable generator and analyzer platform that can support HDMI testing according to the installed interface board and configuration.
View LS-8500
Selected solution
HDMI Protocol Analysis
HDMI interface and protocol validation
HDMI Protocol & Link Analysis
Analyze HDMI signal behavior, protocol information, link status, HDCP, EDID, SCDC, audio, and related communication during source, sink, and repeater development.
Typical applications
- HDMI source-device development
- HDMI sink-device development
- Repeater and interface debugging
- HDMI 2.1 pre-compliance evaluation
Recommended for this solution
Recommended Products
HDMI 2.1 Protocol Analyzer

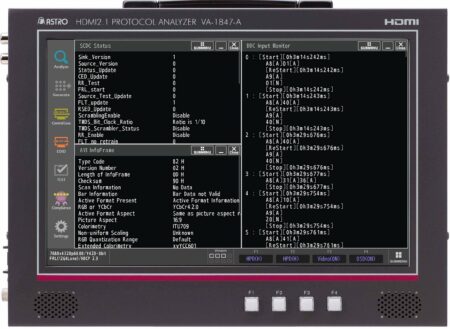

ASTRODESIGN VA-1847-A HDMI2.1 Protocol Analyzer
HDMI 2.1 protocol analyzer supporting FRL and TMDS signal analysis, HDCP, EDID, SCDC, DDC/CEC monitoring, and HDMI 2.1 CTS pretest workflows.
View VA-1847-A
Selected solution
Source Testing & Production QC
Automated HDMI source validation
HDMI Source Testing & Quality Control
Automate HDMI source-device inspection and quality-control workflows using repeatable measurements, protocol verification, link-training tests, and externally controlled test sequences.
Typical applications
- HDMI source production testing
- Quality-control inspection
- Automated test systems
- FRL Link Training verification
Recommended for this solution
Recommended Products
Automated Source Tester
ASTRODESIGN VA-1849-C HDMI 2.1 Source Tester
HDMI 2.1 source tester designed for automated measurement and analysis through external PC control in production and quality-control environments.
View VA-1849-C
Selected solution
DisplayPort & Multi-Interface
Multi-interface display validation
DisplayPort & Multi-Interface Video Testing
Extend display and video-interface evaluation beyond a single HDMI workflow using configurable platforms for DisplayPort and other professional video interfaces.
Typical applications
- DisplayPort development
- Multi-interface display systems
- Professional video equipment
- Flexible laboratory validation platforms
Recommended for this solution
Recommended Products
Multi-Interface Generation
ASTRODESIGN VG-879-B Digital Video Generator
Modular signal-generation platform supporting configurable video interfaces including HDMI, DisplayPort, SDI, and V-by-One HS depending on the installed units.
View VG-879-B
Universal Validation Platform
ASTRODESIGN LS-8500 Universal Video Generator / Analyzer
Flexible generator and analyzer platform supporting HDMI, DisplayPort, and MIPI configurations through selectable interface hardware and functionality.
View LS-8500HDMI & Display Test Workflow
Choose the Test Layer Before the Instrument
Display-interface testing can require several different functions. Separate signal generation, protocol analysis, automated source inspection, and multi-interface validation before selecting the appropriate platform.
- 1. Generate Create repeatable HDMI and video test signals for display, sink-device, and image-system development.
- 2. Analyze Inspect HDMI protocol behavior, FRL or TMDS operation, HDCP, EDID, SCDC, and related communication.
- 3. Automate Use externally controlled source-testing workflows for repeatable production and quality-control inspection.
- 4. Expand Use modular or configurable platforms when the test environment spans DisplayPort, HDMI, or additional professional video interfaces.
Application Support
Need help selecting HDMI or display interface test equipment?
Share the interface, resolution, FRL or TMDS requirement, DUT type, protocol-analysis need, automation requirement, and other video interfaces in your system. Denkei Americas can help narrow the appropriate test workflow.
