AIKOH Peeling data software for RZE(RZ) Series RZ-3000P

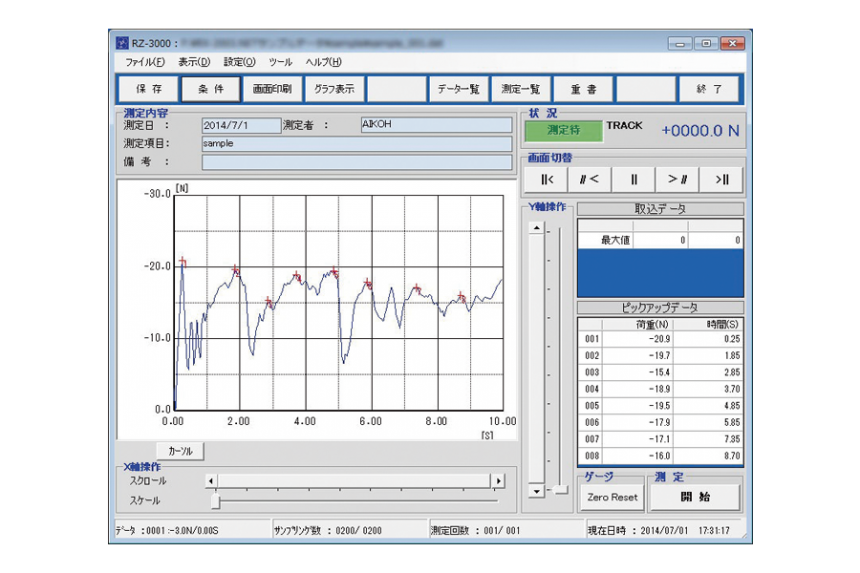

The Aikoh RZ3000P is specialized software designed for use with the RZE(RZ) Series force gauges. It supports continuous data acquisition, allowing users to monitor changes in force values in real time and display them as graphs over time. Additionally, it automatically calculates maximum and minimum values, streamlining data analysis for quality control and research applications. Ideal for detailed peeling and force measurement evaluations.・Capable of acquiring changes in force values successively and drawing graphs on the time axis. ・You can automatically calculate the maximum value, minimum value, average value within the specified range. ・Combined with electric stand, simple peel strength test is possible. ・The USB cable is included with the RZE(RZ) main unit as a standard accessory.
・Peel test Related Product AIKOH Digital force gauge RZE Series
| Model | RZ-3000P |
| Major application | Data software for RZE(RZ) Series |
| Computer standard | DOS/V compliant IBM/PC compatible |
| Operating system（OS） | Microsoft Windows 7,8 : Japanese |
| CPU | Intel Core i3 Processor 2.0GHz min. |
| Main memory | 2048 MB min. (4096 MB min. recommended) |
| Hard disk drive | 20 to 300 MB according to operating environments |
| Optical drive | CD-ROM drive x 1 When this software is installed. |
| Display | High color (16 bits) min. (32 bits. min. recommended) Desktop area 1024 x 768 min. recommended |
| Communication port | USB port x 1 |
