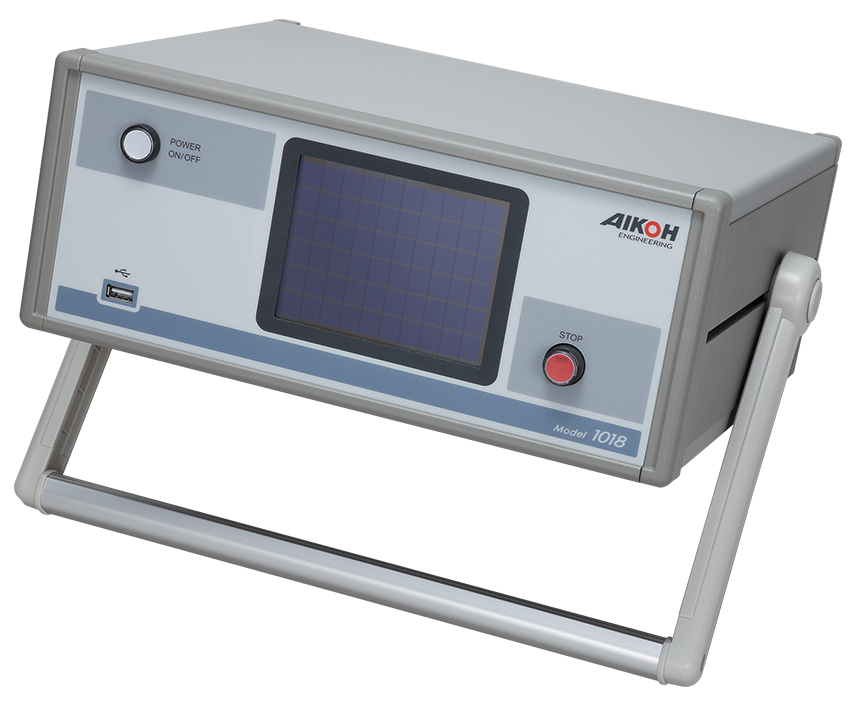

AIKOH Force measuring amplifier MODEL-1018
The MODEL-1018 from Aikoh is a versatile amplifier designed for force and torque testing applications. It supports force-displacement and torque-angle measurements, switch feeling tests, and creep tests. The device allows data saving directly to a USB flash drive, enhancing data management efficiency.・Force – displacement and torque – angle measurement. ・Switch feeling test. ・Creep test. ・Save the data to the USB flash drive.
・LCD touch panel. ・Four-quadrant operation necessary for reciprocal measurement realized. ・Communication rate as high as 230.4 kbps. ・Capable of calibrating loads of ten load cells maximum. ・Capable of reading force and displacement at points selected with the cursor.
| Model | MODEL-1018 |
| Major application | Amplifier and stand control for force/torque tester sensors |
| Max. force | Depends on the load cell used. |
| Accuracy | Depends on the load cell used. |
| Controller | Stand control output STOP/UP/DOWN/QUICK |
| Test speed | Depends on the stand used. |
| Speed setting method | Main unit only. |
| Displacement detection method | A/B phase up/down counter x 2 channels, resolution 24 bits |
| Dimensions | W363×D280×H132.5mm |
| Mass | Approx. 5.6kg |
| Power supply | AC100V(100～110V) or AC200V(200～220V) |
