Most suitable for strength evaluation test.

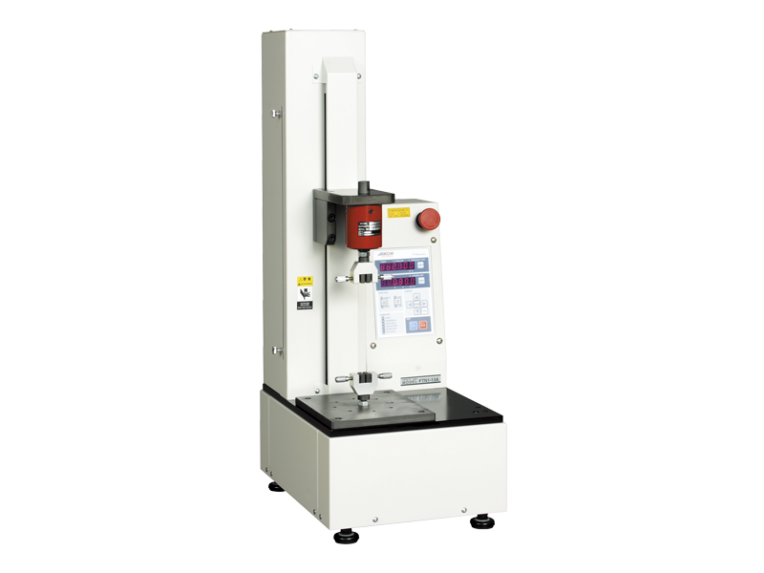

This is an integrated force tester with a built-in amplifier for the compression and tensile force tests up to 2kN (200Kgf). Two measurement speeds are available depending on the load cell capacity (300mm/min. for 500N, and 125mm/min. for 2kN). A rotary encoder is provided for displacement detection.7-segment LEDs are in use for data display. A software program is provided as the standard for easy tester operation and result output. Test conditions can easily be set by anybody.- A desktop force tester.
- Most suitable for strength evaluation test.
- Displacement resolution 0.01 mm.
- Most suitable for testing small parts.
- Dedicated PC software included (control & data acquisition).
- Up to three load cells can be used.
- Strength test.
- Electronic device properties evaluation.
| Model | FTN1-13A | |
| Max. force | 500N（50kgf） | 2KN（200kgf） |
| Force accuracy | Depends on the load cell used. | |
| Force measuring amplifier | Built in | |
| Controller | Built in | |
| Test speed | 5～300mm/min | 5～125mm/min |
| Speed changing | Numeric input (Settable on the PC) | |
| Stroke | 390mm | |
| Distance between test center and column | 100mm | |
| Table size | W174×D200mm | |
| Drive motor | Stepping motor | |
| Detector | Rotary encoder | |
| Display accuracy | ±0.2mm | |
| Dimensions | W300×D400×H823mm | |
| Stand mass | Approx. 40 kg | |
| Power supply | Single phase, 100VAC – 240VAC 3A | |
| Standard set | Tester, load cell(3000 Series or UP Series) 1 piece, free download version software FTN-3000 | |
| Options | Additional load cell, jig/fixture, paid software FTN-3001 | |
