For tensile & compression tests

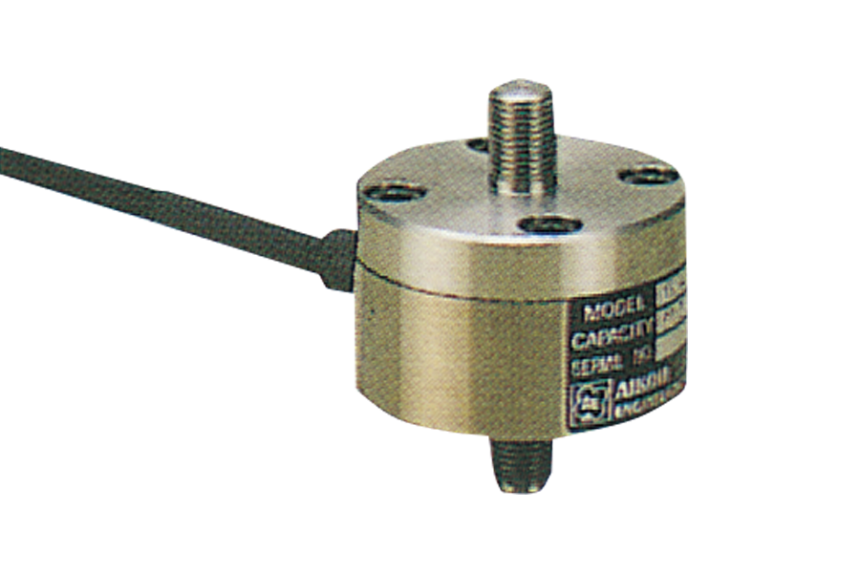

Made of stainless steel to ensure high corrosion resistance. A small-sized, light-weight and high-performance load cell for both tension and compression.| DUD Series | |
| Rated capacity | 500N～20kN |
| Rated output | 2mV/V±1％ |
| Nonlinearity | 0.15％R.O. |
| Hysteresis | 0.1％R.O. |
| Repeatability | 0.1％R.O. |
| Recommended applied voltage | 10V |
| Allowable applied voltage | 15V |
| Input/output resistance | 350Ω±2％ |
| Insulation resistance | 1000 MΩ or over |
| Temperature compensation range | -10～+70℃ |
| Allowable temperature range | -20～+80℃ |
| Zero point influence by temperature | ±0.01％R.O./℃ |
| Output influence by temperature | ±0.01％R.O./℃ |
| Allowable overload | 150％R.C. |
| Cable length | 3m |
| Tip shape | Y terminal |
