Designed to measure operating forces of switches and variable resistors and test endurance by applying torsional force.

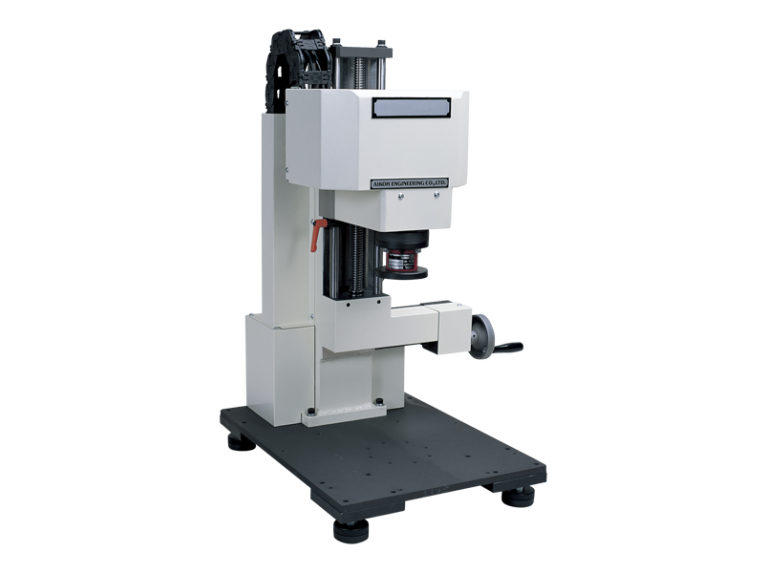

The MODEL-5401VC-50 and MODEL-5401VC-200 are capable of torque angle measurement up to 340 degrees. Samples are fixed in the lower positions, and the torque meter in the upper positions rotate. The optional X-Y tables or jigs are installed on the sample measuring side. Attaching the automatic centering table to the torque meter enables smooth adjustment of the torque meter center to the work center. This function is convenient for samples that may not be rotated..- A desktop torque tester.
- Designed to measure operating forces of switches and variable resistors and test endurance by applying torsional force.
- Rotary switch operating force test.
- Product/board torsion test.
- Cap opening force test.
- Screw tightening torque measurement.
- Evaluation test of various complicated parts.
- Test of key cylinder insertion / withdrawal.
- Knob evaluation test.
| MODEL | Max. output torque | Torque accuracy | Test speed | Display accuracy |
| MODEL-5401VC/50 | 5N・m（0.5kgf・m） | 0.01N・m | 0.2～1RPM | 1deg |
| MODEL-5401VC/200 | 20N・m（2kgf・m） | 0.01N・m | 0.2～1RPM | 1deg |
