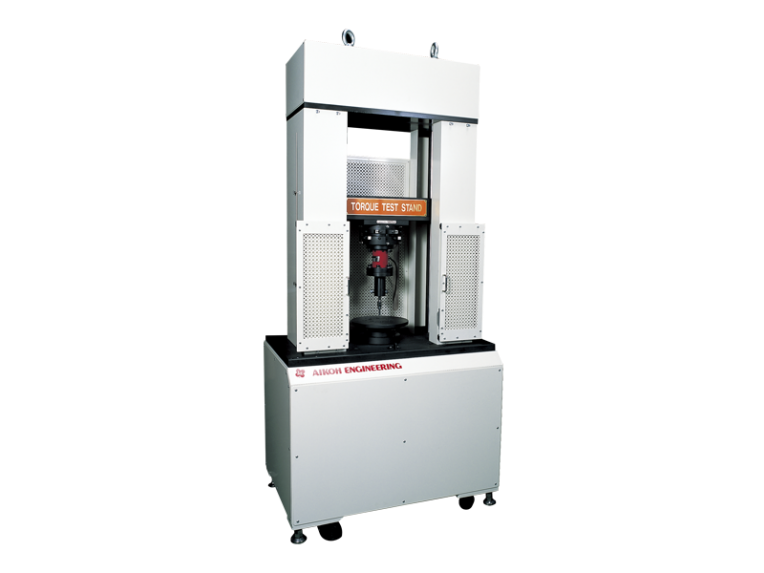

AIKOH 5127VC Series Large torque tester

Type: Torque Tester

Supplier / Manufacturer: AIKOH ENGINEERING

Model: 5127VC/500 / 5127VC/2000 / 5127VC/5000

Industries & Applications:

The MODEL-5127VC Series are designed to measure correlation of the torque angles of large automobile parts,electronic parts and so forth.

Jigs or chucks are set on rotary tables in lower positions. Spans from works are adjusted with the cross head in upper positions, which are moved up and down by motors. Torque meters is fixed to the cross head. The MODEL-5127VC Series employ the MODEL-1016C amplifier for versatile evaluation tests of parts, including general torque breaking tests, repetitive durability evaluation tests and so forth..

A stationary type large-sized torque tester.
Capable of testing the strength of individual parts such as shafts, hubs and gears and measuring the combined axial forces of gear units, cam units, etc.

Hub torque measurement.
Axial force measurement.
Torque breakage test.

MODEL	Max. output torque	Torque accuracy	Load table rotating speed	Display accuracy
5127VC/500	50N・m（5kgf・m）	±0.5%F.S.	0.2～6RPM	1deg
5127VC/2000	200N・m（20kgf・m）	±0.5%F.S.	0.2～6RPM	1deg
5127VC/5000	500N・m（50kgf・m）	±0.5%F.S.	0.2～6RPM	1deg
