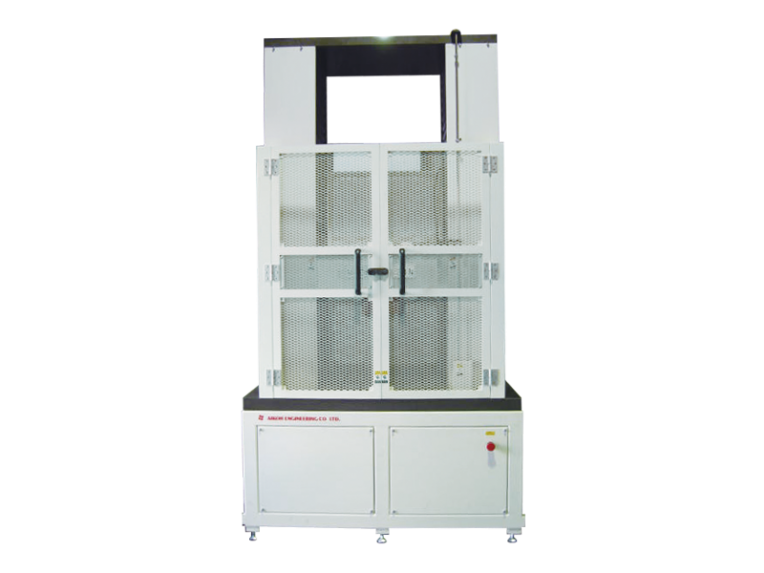

AIKOH 1431VC Series Large force tester

AIKOH ENGINEERING
Type: Force Tester
Supplier / Manufacturer: AIKOH ENGINEERING
Model: 1431VC/5000 / 1431VC/10000 / 1431VC/20000

Industries & Applications:
Research & LaboratoryR&DQuality Control
Contact Us

Multi-purpose large-size force testers.

The MODEL-1431VC Series are multi-purpose large-size force testers designed for compression, tensile, bending and other tests of various large works at 1, 2, 5, 10 and 20tonf. They employ precision ball screws and servo motors in the driving mechanisms and rotary encoders for displacement detection. They offer repetitive tests based on the max. value, breaking values, displacement and force, constant force tests, step-force tests and so forth. They use the MODEL-1016C amplifiers.The test data and waveforms are displayed on LCD panels.Various protection devices such as safety covers and area sensors are available according to customer's safety requirements.
  • Highly rigid to make this model suitable for evaluation test and break test of various materials.
  • Capable of control at set force values and displacement amount to enable successive repeated tests as a standard feature.
  • Tensile test.
  • Compression test.
  • Strength test.
MODEL Max. force Force accuracy Test speed Speed changing Display accuracy
1431VC/5000 50kN（5000kgf） Depends on the load cell used. 0.5～300mm/min 5 steps or stepless 0.1 mm (resolution 0.01 mm)
1431VC/10000 100kN（10000kgf） Depends on the load cell used. 0.5～300mm/min 15 steps or stepless 0.1 mm (resolution 0.01 mm)
1431VC/20000 200kN（20000kgf） Depends on the load cell used. 0.5～300mm/min 15 steps or stepless 0.1 mm (resolution 0.01 mm)
