Designed to measure operating forces of switches and variable resistors and test endurance by applying torsional force.

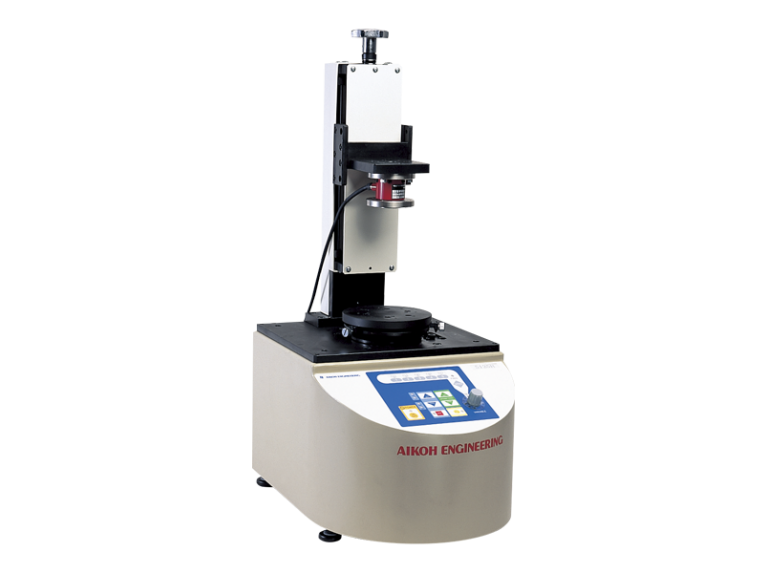

These are designed for complicated evaluation tests of various electronic,mechanical and other parts, including the torque angle tests, sliding torque tests, repetitive reducing torque measurement and so forth. The table in lower position rotates. The span from the work is adjusted with the torque meter mount in upper position, which is moved up and down manually. Select the proper torque meter and jig of the torque suitable to measurement. Test data and test waveform are displayed on the screen. In repetitive tests, waveforms are overwritten and displayed on the screen. Data are stored in the amplifier and printed.- A desktop torque tester.
- Designed to measure operating forces of switches and variable resistors and test endurance by applying torsional force.
- Rotary switch operating force test.
- Product/board torsion test.
- Cap opening force test.
- Screw tightening torque measurement.
- Evaluation test of various complicated parts.
- Torsion test of boards.
- Power window feeling test.
- Board evaluation test.
| MODEL | Max. output torque | Torque accuracy | Test speed | Speed changing |
| 5125VC | 5N・m（0.5kgf・m） | 0.01N・m | 0.2～6RPM | 5 steps or stepless |
| 5125VCW | 5N・m（0.5kgf・m） | 0.01N・m | 0.1～20RPM | 5 steps or stepless |
| 5125VCT | 5N・m（0.5kgf・m） | 0.01N・m | 0.1～20RPM | Freely settable (on the touch panel) |
