High rigidity to make this model suitable for various break tests.

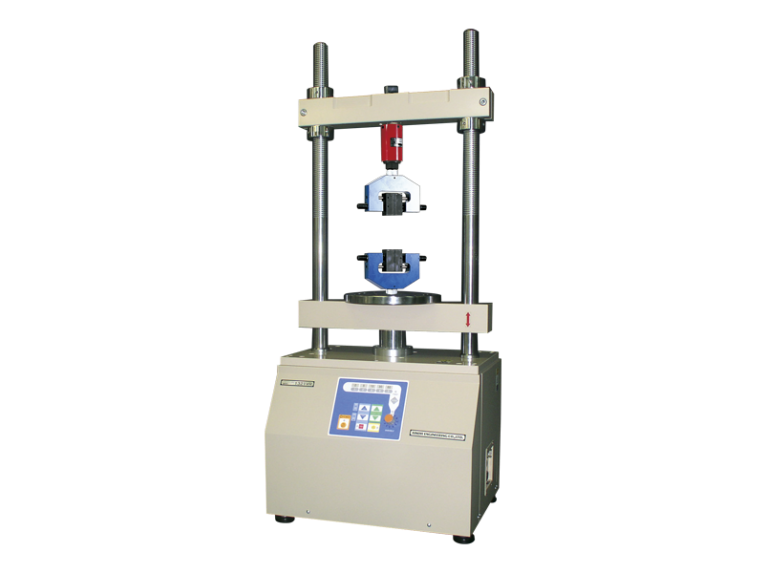

These models are large size testers designed for compression and tensile force tests up to 500 to 2000Kgf (5 to 20kN). They use the MODEL-1016C amplifier and display the measurement results on LCD panels. They are available in force measurement only types and force-displacement measurement types, six types in all,whose measurement force are 500Kgf, 1000Kgf and 2000Kgf. With large test stands, 800mm long columns, and 360mm column interval, these are suitable to measurement of large parts. The components and specifications may be changed according to test sample sizes of customers..| MODEL | Max. force | Force accuracy | Test speed | Detector | Display accuracy |
| 1320VC | 10kN（1000kgf） | Depends on the load cell used. | 2～60mm/min | None | ー |
| 1321VC | 10kN（1000kgf） | Depends on the load cell used. | 2～60mm/min | Rotary encoder | 0.1mm |
| 1322VC | 5kN（500kgf） | Depends on the load cell used. | 2～60mm/min | None | ー |
| 1323VC | 5kN（500kgf） | Depends on the load cell used. | 2～60mm/min | Rotary encoder | 0.1mm |
| 1324VC | 20kN（2000kgf） | Depends on the load cell used. | 2～40mm/min | None | ー |
| 1325VC | 20kN（2000kgf） | Depends on the load cell used. | 2～40mm/min | Rotary encoder | 0.1mm |
