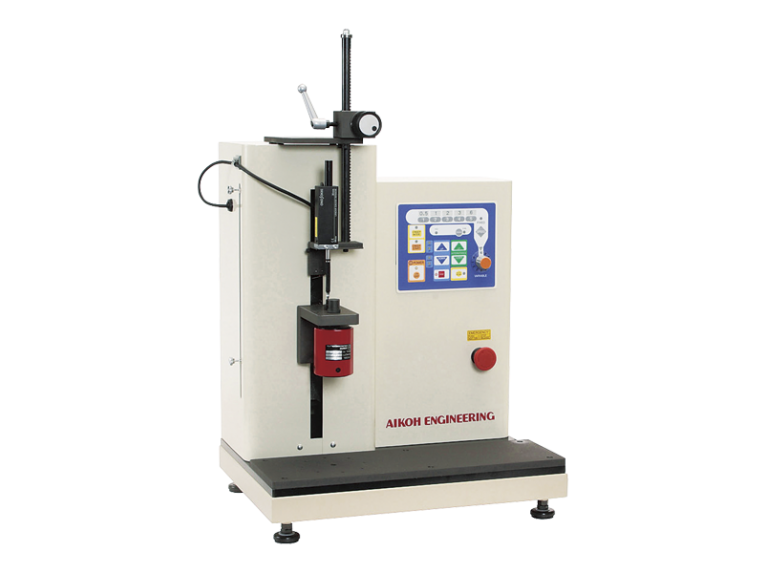

MODEL-1605 Series are highly versatile force testers capable of high precision tests.
These testers can perform force-displacement tests under various conditions.They are equipped with such functions as detailed motion setting required for various force tests and pickup data management.They are suitable for testing connector mating / unmating, metal characteristics and penetration.Tensile/compressive tests in a specific environment may also be conducted.(Please contact us for a temperature range.)- A desktop precision force tester.
- Most suitable for connector evaluation test.
- Force minimum display 0.001 N (when 5N load cell is used).
- Most suitable for testing small (miniature) parts.
- Capable of switch feeling test also.
- Product evaluation test.
- 3-point bending test.
- Switch feeling test (when optional CF card V-103A is used).
- Connector evaluation test.
- Bending test at preset displacement.
| MODEL | Max. force | Force accuracy | Test speed | Detector | Display accuracy |
| 1605VC | 500N（50kgf） | Depends on the load cell used. | 0.5～600mm/min | Rotary encoder | 0.1mm |
| 1605VCL | 500N（50kgf） | Depends on the load cell used. | 0.5～600mm/min | Rotary encoder/linear gage selection | Rotary encoder 0.01 mm, linear gage 0.001 mm |
