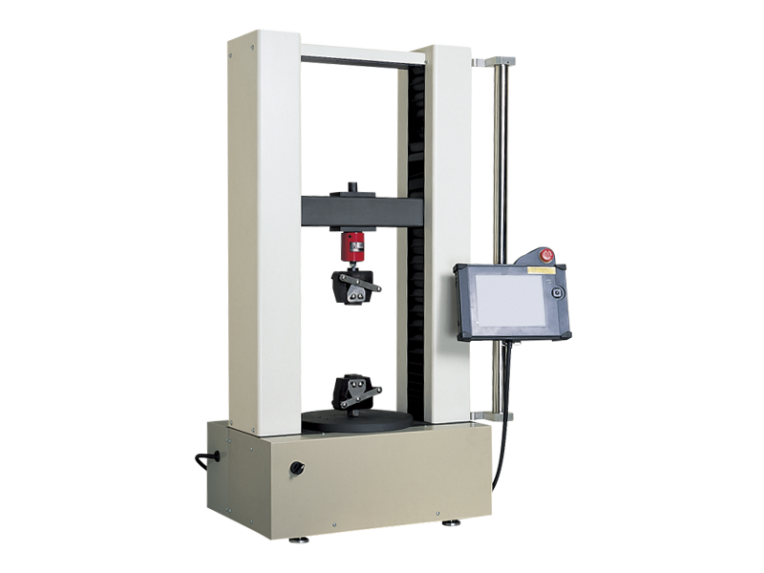

AIKOH 1840VCT Series Large precision force tester

Type: Force Tester

Supplier / Manufacturer: AIKOH ENGINEERING

Model: 1840VCT/200 / 1840VCT/500 / 1840VCT/1000 / 1840VCT/2000 / 1840VCT/5000

Industries & Applications:

Research & Laboratory R&D Quality Control

Large-size precision force tester designed for compression and tensile force tests up to 200 to 5000Kgf (2 to 50kN).

The test speed and control system conditions may be set on a touch panel. In combination with the MODEL-1016C amplifier, the basic testparameters including the travel distance, repetition frequency and so forth may be set on the amplifier screen and measurement results are displayed on a LCD. The stroke may be extended and the pitch of columns may be changed according to test sample sizes of customers.Tensile/compressive tests in a specific environment may also be conducted.(Please contact us for a temperature range.)

Compact and settable on a workbench.
Test speed setting and control system setting on the touch panel.
Addition of small-capacity load cells enables tests of a wide range of capacities.

Tensile/compression tests.
Strength test.
Repeat test.
Product evaluation test.
Bending test at preset displacement.

MODEL	Max. force	Force accuracy	Test speed	Speed changing	Display accuracy
1840VCT/200	2kN（200kgf）	Depends on the load cell used.	0.1～600mm/min	Numeric input on the touch panel	0.1mm
1840VCT/500	5kN（500kgf）	Depends on the load cell used.	0.1～600mm/min	Numeric input on the touch panel	0.1mm
1840VCT/1000	10kN（1000kgf）	Depends on the load cell used.	0.1～300mm/min	Numeric input on the touch panel	0.1mm
1840VCT/2000	20kN（2000kgf）	Depends on the load cell used.	0.1～300mm/min	Numeric input on the touch panel	0.1mm
1840VCT/5000	50kN（5000kgf）	Depends on the load cell used.	0.1～250mm/min	Numeric input on the touch panel	0.1mm
