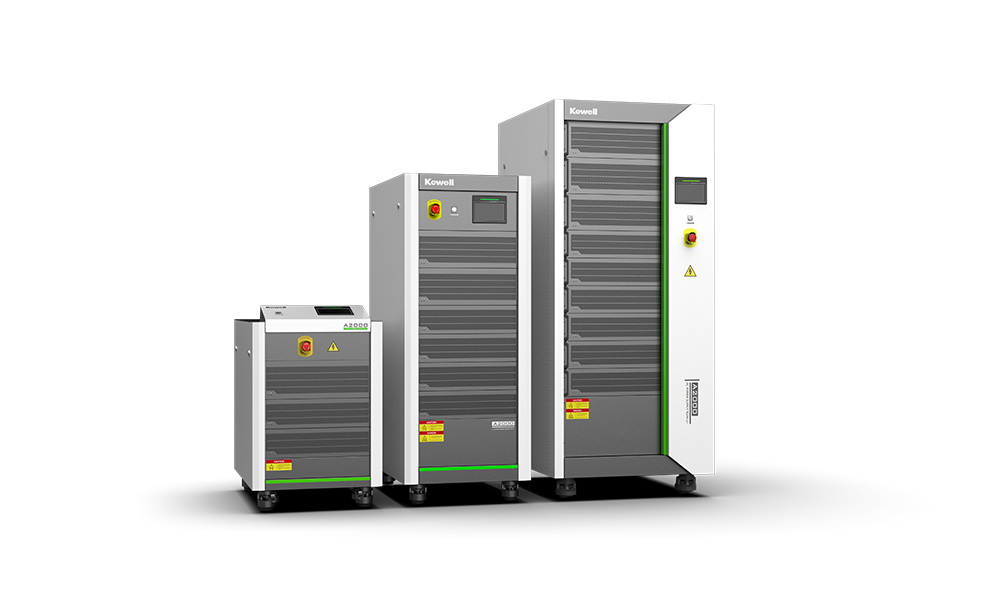

Kewell A2000 Series Bi-directional Programmable AC Power Supply

Kewell A2000 Bidirectional Programmable AC Source and Load

High-power regenerative AC testing for PV inverters, energy-storage converters, charging systems and grid-condition simulation.

The Kewell A2000 Series integrates programmable AC source and electronic load functions in a bidirectional platform. It can supply controlled AC conditions to the device under test (DUT) and accept power from regenerative equipment, supporting power-conversion tests in which energy flow may reverse.

Kewell categorizes the A2000 family under 100–800 V and 30–600 kW products, while its detailed specification separately states 0–900 V line-to-neutral output capability and 0–800 A output. These values refer to different descriptions of the family and must not be combined into an assumed single-model continuous operating point; detailed current, voltage and regenerative power should be verified in the selected system.

Third-generation SiC switching hardware is used for high efficiency and dynamic performance. The public manufacturer page lists output fundamental frequency from 40 to 70 Hz, efficiency up to 93.7%, parallel expansion, RS485/LAN communication and an external emergency-stop interface.

Programmable unbalance, flicker, harmonic/interharmonic superposition, and low-/high-/zero-voltage ride-through (LVRT/HVRT/ZVRT) functions help reproduce relevant AC grid disturbances. These capabilities can support engineering test plans but do not alone establish certified compliance with a specific grid code or immunity standard.

30–600 kWPublished series power class
0–900 V L-NManufacturer stated output capability
Up to 93.7%Published efficiency figure
Source + LoadRegenerative bidirectional testing

Bidirectional Source/Load Operation

Supply programmable AC to a DUT and absorb exported power from compatible regenerative systems.

High-Power Modular Platform

Kewell publishes a 30–600 kW series class, with expansion through supported parallel configurations.

SiC-Based Conversion Design

Third-generation silicon-carbide devices support the stated high efficiency and fast dynamics.

Grid Disturbance Simulation

Generate relevant voltage unbalance, flicker and voltage ride-through scenarios.

Harmonics and Custom Waveforms

Use supported harmonic/interharmonic superposition and multi-step programming for structured tests.

System Connectivity and Safety I/O

Integrate RS485, LAN and an external emergency-stop signal into an engineered test installation.

PV Inverter Grid Compliance Development

Apply controlled AC grid conditions to examine inverter behavior during defined test profiles.

Battery Energy Storage PCS Testing

Test AC source/load operation and regenerative power flow for storage power conversion systems.

EV Charging Equipment Validation

Exercise AC-side electrical scenarios for charging converters and related equipment.

LVRT and HVRT Evaluations

Simulate prescribed low- and high-voltage ride-through events for protection studies.

Grid Harmonic Susceptibility Testing

Superimpose harmonic/interharmonic components to observe equipment performance.

Power Conversion R&D

Use programmable AC source and sink operation for converter design and system verification.

Kewell A2000 Series Bidirectional AC Supply Specifications

The current Kewell global product page lists separate series filter ratings (100–800 V) and a detailed output capability (0–900 V line-to-neutral). Specify the actual selected model and installation voltage limits before publishing a model-specific product claim.

Manufacturer Published Series Specifications

SpecificationA2000 Series
Equipment typeRegenerative programmable bidirectional AC source and AC electronic load
Power class30–600 kW (family listing)
Catalog voltage class100–800 V (manufacturer category filter)
Stated AC voltage output0–900 V line-to-neutral (L-N); model-specific availability to confirm
Stated current output0–800 A; model-specific limit to confirm
Fundamental output frequency40–70 Hz (published operating range)
Converter technologyThird-generation SiC power electronics
EfficiencyUp to 93.7% (vendor published; conditions not specified on page)
Source and sink operationYes, AC source and AC electronic load
Programmable waveform functionsWaveform editing; multi-step sequence programming
Harmonic controlHarmonic and interharmonic superposition
Voltage disturbancesVoltage unbalance and flicker simulation
Ride-through functionsLVRT, HVRT, ZVRT (programs and limits configuration-dependent)
Parallel operationFlexible parallel connection described by Kewell
CommunicationsRS485; LAN
Safety I/OExternal emergency stop
Human interfaceTFT touchscreen and electrically operated switch

System Selection Considerations

ParameterRequired Clarification
Continuous vs transient ratingRequest the selected model's power, voltage, current, duration and derating limits
Source/sink quadrant operationConfirm regenerative energy path, grid connection and utility interconnection conditions
AC phase / topologyVerify required phase count, line-to-line and line-to-neutral ranges and wiring
Output harmonics and grid eventsConfirm waveform table, event durations, frequency limits and synchronization
Parallel cabinet installationConfirm compatible modules, facility cooling and electrical protection
Standards testingEstablish grid code or standard procedure separately; functions do not grant compliance
