Programmable Bi-directional DC Power Supply. With modular scalability up to 2.4 MW.

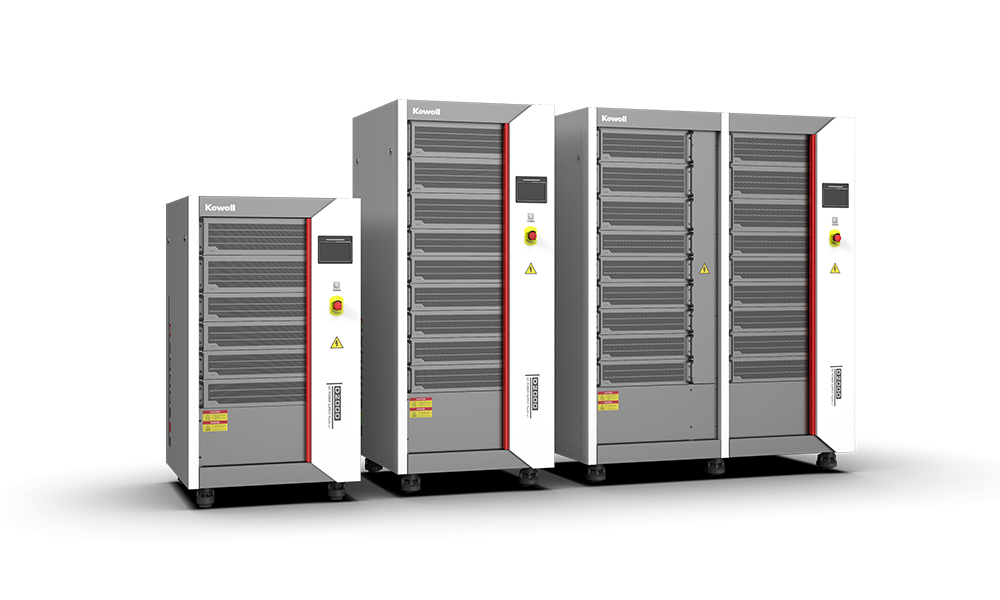

The D2000-EV is a second-generation bi-directional high-power DC supply using advanced SiC technology for high precision, efficiency, and dynamic response. It operates as a DC source, regenerative electronic load, and battery simulator with CV/CC/CR/CP modes. With modular scalability up to 2.4 MW, wide voltage/current ranges, and multiple battery models, it is ideal for EV, energy storage, and high-power electronics testing.- Third-generation SiC design
- Bi-directional DC power supply
- Regenerative electronic load
- Electrically operated switch + TFT touch screen
- Multi-step programming
- Voltage output range: 12~1200V
- Current output range: 0~1200A
- Efficiency: up to 95.5%
- CV/CC/CR/CP in load mode
- 7 fixed battery types for battery simulation
- 1st/2nd/3rd order battery models
- Parallel connection to as high as 2.4MW
- Maximum power density: 176kW/m3
- Comm. interface: RS485, LAN, and CAN
- Insulation monitoring & safety relay
