SiC-based bi-directional DC supply with IV simulation, regenerative load, and up to 2000V/600kW modular power.

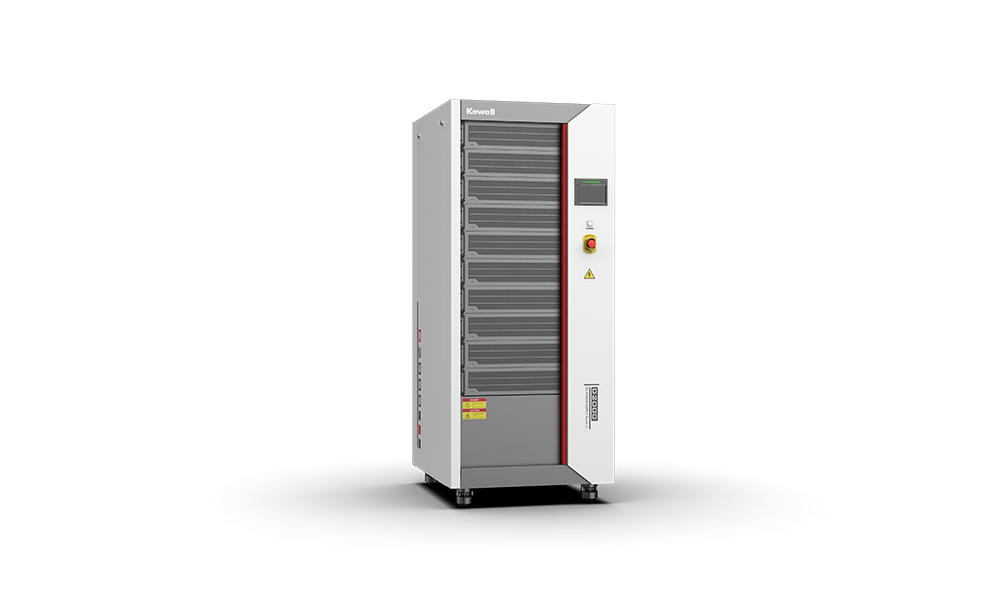

The D2000-IV is a bi-directional programmable DC power system using third-generation SiC technology for high precision, efficiency, and fast dynamics. It supports DC sourcing, IV curve simulation, regenerative load, and battery simulation with CV/CC/CR/CP modes. With up to 2000V, 900A, and scalable power to 2.4 MW, it is ideal for PV, EV, and high-power energy testing including MPPT and advanced IV profiling.- Third-generation SiC design
- Bi-directional DC power supply
- Regenerative electronic load
- Electrically operated switch + TFT touch screen
- Multi-step programming
- Voltage output range: 12~2000V
- Current output range: 0~900A
- Efficiency: up to 95.5%
- CV/CC/CR/CP in load mode
- 7 fixed battery types for battery simulation
- 1st/2nd/3rd order battery models
- IV curve simulation, SAS, Sandia
- Dynamic MPPT (EN50530)
- Parallel connection to as high as 2.4MW
- Maximum power density: 176kW/m3
- Comm. interface: RS485, LAN, and CAN
- Insulation monitoring & safety relay
