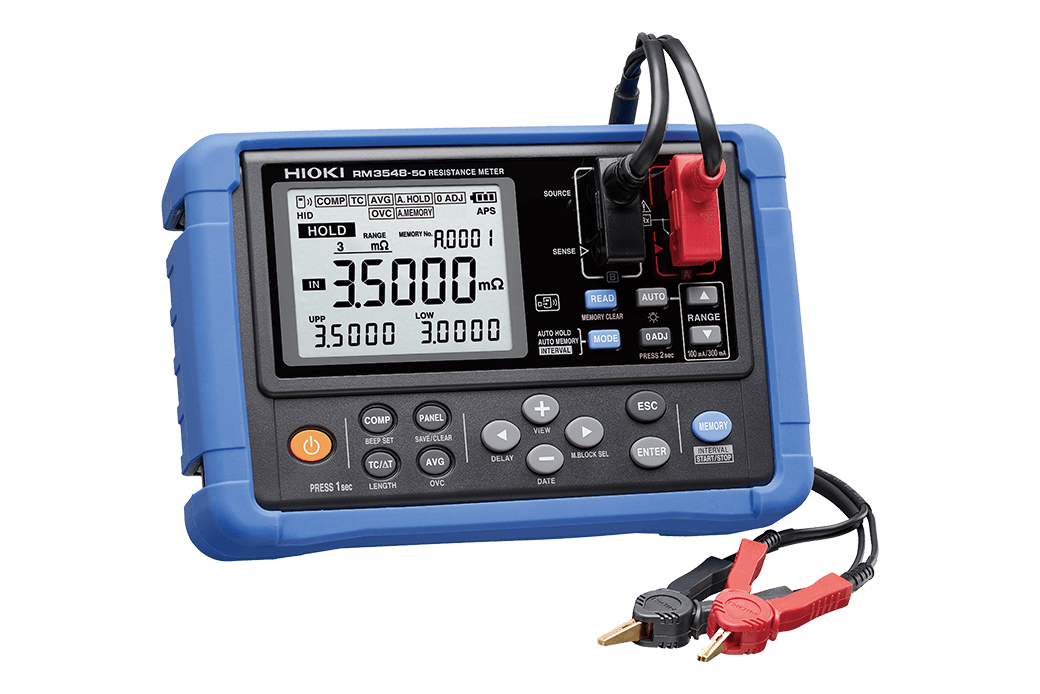

HIOKI RM3548-50 Resistance Meter

Portable Four-Wire Resistance Measurement for EV and Aircraft Maintenance

The HIOKI RM3548-50 is a battery-operated four-terminal resistance meter for maintenance and field inspection, with 0.02% basic accuracy and 0.1 µΩ maximum resolution.

Designed for measuring electrical connections, motor windings and equipotential bonding, the RM3548-50 combines four-wire DC resistance measurement with offset voltage compensation, temperature correction and comparator functions.

0.1 µΩ Best resistance resolution
0.02% Basic measurement accuracy
1 A Maximum testing current
3.5 MΩ Maximum resistance display value

The meter stores up to 1,000 manual or automatic results, or up to 6,000 interval records. Readings can be retrieved by USB, and optional Bluetooth connectivity requires the Z3210 Wireless Adapter for supported smartphone and Excel workflows.

Battery operation and application-specific test leads support EV maintenance, aircraft bonding verification and motor/transformer inspection. The current model replaces the former RM3548 and is distinct from the benchtop RM3544 and RM3545 series.

0.1 µΩ Portable Resolution

Measures low contact and bonding resistance on a 3 mΩ range with up to 1 A test current.

Four-Wire Measurement with OVC

Uses Kelvin connections and offset voltage compensation to reduce measurement lead and thermoelectric errors.

Automatic Temperature Correction

Normalizes temperature-sensitive resistance readings using the included Z2002 sensor.

Onboard Data Storage

Records up to 1,000 manual/auto or 6,000 interval measurement results.

Optional Bluetooth Transfer

Z3210 Wireless Adapter enables mobile data handling and supported spreadsheet workflows.

Field-Oriented Probe Selection

Choose compatible leads for EV bonding, aircraft inspection or motor maintenance tasks.

EV Equipotential Bonding

Measure low-resistance bonding paths during EV maintenance and inspection.

Aircraft Bonding Maintenance

Verify electrical bonding on aircraft structures with appropriate dedicated probes.

Motor Winding Maintenance

Inspect winding resistance for maintenance and troubleshooting of rotating machinery.

Transformer Service Checks

Compare winding resistance measurements with temperature correction.

Battery Busbar Connections

Check low-resistance connections on appropriately isolated busbars.

Field Measurement Reporting

Store readings and transfer data to maintenance records using USB or optional wireless capability.

Specification RM3548-50
Measurement method Four-wire DC resistance
Resistance ranges 3 mΩ to 3 MΩ nominal, 10 ranges
Maximum displayed resistance 3.5000 MΩ
Best resolution 0.1 µΩ at 3 mΩ range
Measurement accuracy ±0.020% rdg. ±0.007% f.s. (specified basic condition)
Test current 1 A at 3 mΩ range; down to 500 nA at 3 MΩ range
Maximum open-terminal voltage 5.5 V DC
Temperature measurement −10.0 to 99.9°C, with Z2002
Display refresh Approx. 100 ms without OVC; 230 ms with OVC
Internal data memory Up to 1,000 manual/auto; 6,000 interval data points
Communication USB mass storage; Bluetooth with optional Z3210
Power source 8 × AA alkaline or NiMH batteries
Battery operation Approx. 10 hours under specified conditions
Dimensions / mass 199 × 132 × 60 mm; about 890 g with batteries and protector

Measurement uncertainty varies with range and the OVC state. Wireless communication requires optional Z3210. Verify safe deenergized test conditions and the correct probes for bonding and maintenance applications.
