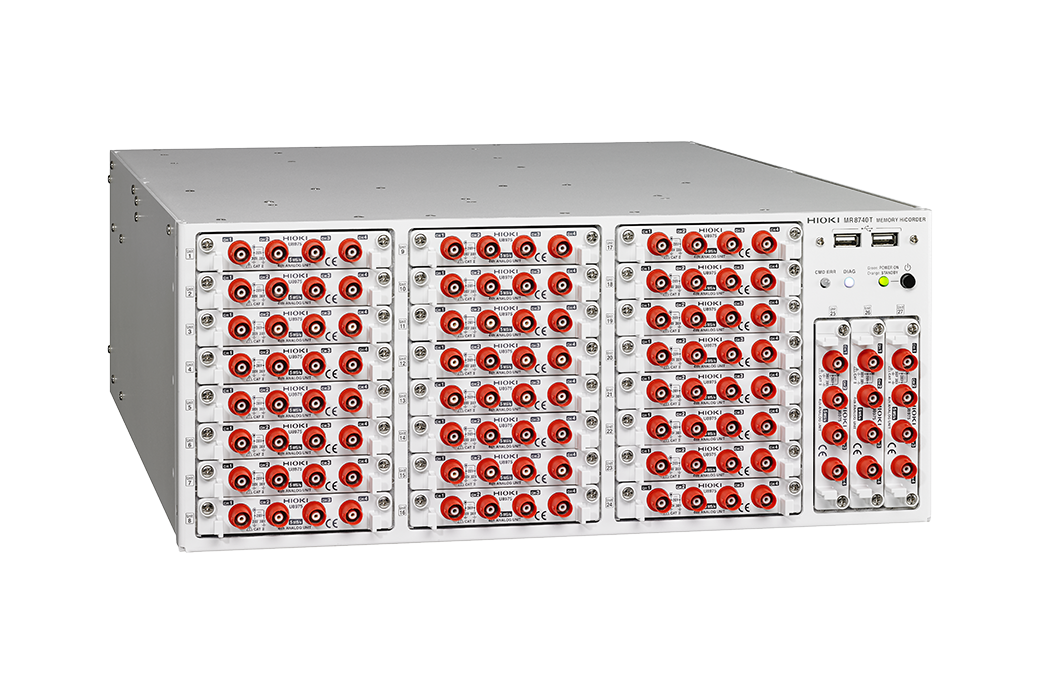

HIOKI MR8740T Memory HiCorder

Rackmount Data Acquisition with Up to 108 Analog Channels

The HIOKI MR8740T (order code MR8740-50) is a modular rackmount Memory HiCorder for high-density waveform acquisition and automated ECU testing, with up to 108 analog inputs using the proper optional modules.

It supports 27 input-unit slots, simultaneous sampling at up to 20 MS/s with compatible units, and integrated waveform recording. An alternate configuration offers up to 96 analog channels plus 48 logic channels, depending on installed modules.

108 Analog Ch Maximum with U8975 module configuration
20 MS/s Simultaneous high-speed sampling
1 Gword Installed data acquisition memory
27 Slots Input-unit expansion capacity

The MR8740T combines isolated analog acquisition with optional signal generation, including the U8794 VIR Generator Unit for voltage, current and resistance simulation in ECU and sensor circuit validation.

The currently published HIOKI specification lists a 640 GB internal SSD, 2.5GBASE-T support, and a 13.3 kg main-unit mass. These supersede older Denkei content stating 480 GB and 14 kg. Actual channel counts, input voltage limits and recording bandwidth depend on the selected modules.

Up to 108 Analog Channels

Populate the 27 module slots with compatible U8975 four-channel units for dense measurement arrays.

Analog and Logic Channel Mixing

Configure up to 96 analog plus 48 logic channels with supported 8973 logic units.

Simultaneous 20 MS/s Sampling

Record fast multi-channel events with simultaneous sampling on compatible analog modules.

Optional Sensor Signal Simulation

Generate voltage, current or simulated resistance when equipped with the appropriate U8794 module.

Expanded High-Speed Data Interfaces

Current published interfaces include dual LAN ports up to 2.5GBASE-T and USB 3.2.

Rack-Mounted, 4K-Capable Workflow

Rack-oriented chassis supports external high-resolution displays and automated test-station integration.

Automotive ECU Testing

Simulate selected sensor signals and record ECU responses in a single modular test environment.

High-Density PCB Evaluation

Collect synchronized electrical readings across many test points on complex boards.

Powertrain and Vehicle Signal Analysis

Measure multiple electrical waveforms related to engine, drive and vehicle control.

Signal Generation and Capture

Combine suitable generator and measurement modules to validate control circuit behavior.

Automated End-of-Line Test Systems

Integrate rackmount multi-channel acquisition with production validation workflows.

Multi-Point R&D Data Acquisition

Capture analog and logic signals simultaneously when the selected module layout supports them.

Specification Details
Order Code MR8740-50 (MR8740T family); main unit only
Input Slots Up to 27
Maximum Analog Channels 108, using U8975 compatible module configuration
Mixed Analog and Logic Up to 96 analog + 48 logic with supported modules
Alternative Analog Channel Layout 54 analog channels with 8966 2-channel units
Maximum Sampling Speed 20 MS/s, all channels simultaneously with supported modules
External Sampling Up to 10 MS/s
Analog Input Bandwidth Example DC to 5 MHz (−3 dB) using 8966
Analog Maximum Input Example 400 V DC with 8966; other modules have different limits
Recording Mode High-speed Memory recording
Total Memory Capacity 1 Gword
Internal Storage 640 GB SSD on current published manufacturer page
Removable Storage Up to 8 USB flash drives
Display Output HDMI up to 4096 × 2160; DisplayPort 1.4 ×3 up to 3840 × 2160
LAN 2 ports; 2.5GBASE-T / 1000BASE-T / 100BASE-TX / 10BASE-T
USB USB 3.2 Type-A ×3, Type-C ×1; USB 2.0 Type-A ×6
Power Supply 100–240 V AC, 50/60 Hz; 400 VA max
Main Unit Size 426 W × 177 H × 505 D mm
Main Unit Mass Approx. 13.3 kg
Accessory Requirement Compatible input units, connecting leads and other accessories sold separately

Data reflect HIOKI’s currently published MR8740T/MR8740-50 specifications. The original Denkei entry gave older SSD capacity (480 GB) and main-unit mass (14.0 kg); check any installed legacy configuration before changing support documentation. Maximum channels and performance depend on module configuration.
