HIOKI FT3700 / FT3701 Infrared Thermometer

Non-Contact Infrared Surface Temperature Measurement

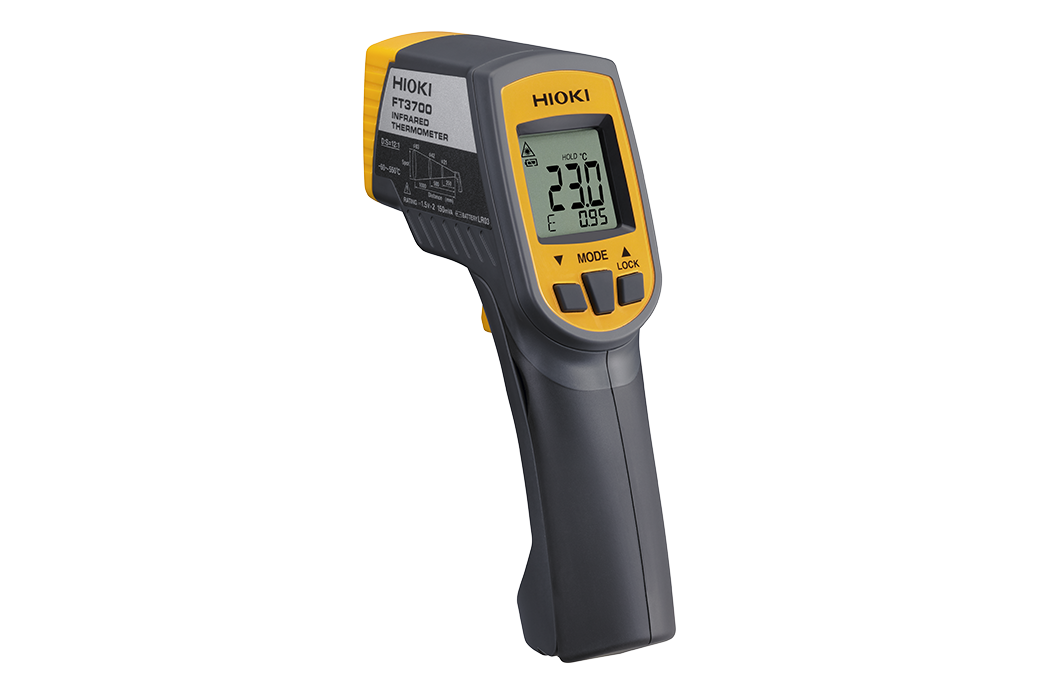

The HIOKI FT3700-20 and FT3701-20 are handheld infrared thermometers for measuring industrial surface temperatures at a distance, with dual-point laser markers to identify the target area.

The FT3700-20 is a 12:1 long-focus model with a stated measurement display range of −60 to 550°C. The FT3701-20 uses 30:1 optics for smaller targets at a distance and displays temperatures from −60 to 760°C.

12:1 / 30:1 Distance-to-spot ratios by model
Up to 760°C FT3701-20 display measurement limit
1 Second Typical 90% response time
Dual Laser Two-point target area indication

Both models provide selectable thermal emissivity from 0.10 to 1.00, MAX/MIN/AVG and differential readings, and a straightforward trigger-based measuring method for maintenance and inspection work.

The specified infrared accuracy range is −35 to 500°C for both models; accuracy is not specified below −35°C or above 500°C even though the instruments display a broader range. These instruments are for industrial surface measurement, not human body temperature.

Two Optical Configurations

Choose the 12:1 FT3700-20 for wider targets or the 30:1 FT3701-20 for smaller targets at a distance.

Dual-Point Laser Targeting

Two laser points provide a visible guide to the approximate measurement area.

Adjustable Surface Emissivity

Set emissivity from 0.10 to 1.00 in 0.01 increments for different target surfaces.

Fast Non-Contact Response

One-second 90% response supports quick checks without touching the target.

Useful Temperature Readouts

MAX, MIN, average and MAX–MIN difference functions help evaluate temperature variation.

Portable Maintenance Design

Trigger activation, alarm, backlight and battery operation support field workflows.

HVAC Outlet Temperature Checks

Measure supply air grille or duct-surface temperatures when physical access is limited.

Motor and Moving Equipment Checks

Take non-contact surface temperature readings on accessible parts of running machinery.

Electrical Cabinet Surface Screening

Check accessible exterior surfaces without making physical contact; follow electrical safety procedures.

Industrial Process Temperature Checks

Inspect suitable solid surfaces in manufacturing and maintenance processes.

Equipment Maintenance Trend Checks

Compare readings taken with a consistent distance, emissivity setting and target area.

Small-Target Temperature Measurement

Use the FT3701-20 30:1 optics for a smaller measurement spot at longer distances.

Specification FT3700-20 FT3701-20
Optical Configuration Long-focus Long-focus / precise-field
Distance-to-Spot Ratio 12:1 30:1
Field Diameter Example Ø83 mm at 1 m Ø100 mm at 3 m
Measurement Display Range −60.0 to 550.0°C −60.0 to 760.0°C
Specified Accuracy Temperature Range −35.0 to 500.0°C −35.0 to 500.0°C
Accuracy, −35.0 to −0.1°C ±10% rdg. ±2°C ±10% rdg. ±2°C
Accuracy, 0 to 100.0°C ±2°C ±2°C
Accuracy, 100.1 to 500.0°C ±2% rdg. ±2% rdg.
Accuracy Outside Specified Range Not specified Not specified
Display Resolution 0.1°C 0.1°C
Response Time 1 s (90%) 1 s (90%)
Infrared Wavelength 8–14 μm 8–14 μm
Emissivity Setting 0.10–1.00, 0.01 steps 0.10–1.00, 0.01 steps
Sighting 2-point red Class 2 laser, max 1 mW 2-point red Class 2 laser, max 1 mW
Additional Functions MAX/MIN/DIF/AVG, alarm, backlight MAX/MIN/DIF/AVG, alarm, backlight
Power Supply 2 × AAA alkaline cells 2 × AAA alkaline cells
Typical Battery Life Approx. 140 h, laser and backlight off Approx. 140 h, laser and backlight off
Dimensions 48 W × 172 H × 119 D mm 48 W × 172 H × 119 D mm
Mass Approx. 256 g including batteries Approx. 256 g including batteries

Measurement range and accuracy-guaranteed range are different: measurement accuracy is not specified below −35°C or above 500°C. Reading represents a target-area average, not a tiny laser-dot temperature. Industrial surface use only; not for measuring body temperature.
