Multi-Channel Solar Cell Evaluation for Long-Term Exposure Testing

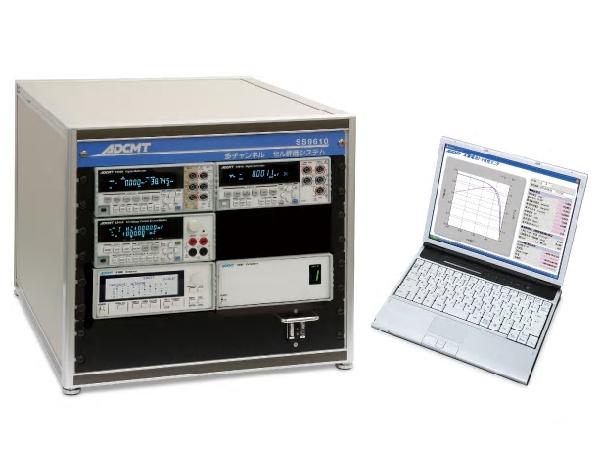

The ADCMT SS9610 evaluates photovoltaic conversion efficiency and degradation characteristics over extended periods by automatically measuring and logging the I-V characteristics of multiple solar cells.
The system records key solar cell parameters including short-circuit current, open-circuit voltage, maximum-power current and voltage, fill factor, conversion efficiency, series resistance, and parallel resistance. Environmental measurements such as solar radiation, temperature, humidity, and wind speed can also be incorporated into the evaluation.
Up to 50 Channels
Multi-channel measurement using one scanner with additional scanner cards
Long-Term Evaluation
Tracks conversion efficiency and degradation characteristics over time
Automated I-V Logging
Records Isc, Voc, Ipmax, Vpmax, FF, efficiency, and resistance parameters
Indoor or Outdoor
Supports solar simulators, exposure testing, and environmental measurements
A configurable ADCMT source monitor performs 0 V-crossing I-V sweeps, while the scanner connects multiple cells to the measurement system. The standard configuration supports 10 channels and can be expanded to 50 channels with scanner cards. Systems requiring more than 50 channels can be customized by adding scanners.
Measurement timing, suspended periods, channel-switching intervals, and the number of measurements can be scheduled through the system software. Logged data is automatically stored in daily or monthly CSV files for stable long-duration testing.
Explore additional instruments in the
Denkei Solar Cell Evaluation System selection →
Multi-Channel PV Cell Measurement
The standard system supports 10 channels and can be expanded to a maximum of 50 channels using additional scanner cards. Larger customized systems can be configured by adding scanners.
Long-Term Degradation Evaluation
Periodic I-V measurements track photovoltaic conversion efficiency and degradation characteristics during extended indoor or outdoor exposure testing.
Comprehensive Solar Cell Parameters
Logs Voc, Isc, Ipmax, Vpmax, maximum power, fill factor, conversion efficiency, series resistance, parallel resistance, and complete I-V measurement data.
Environmental Data Integration
Supports up to five environmental measurement inputs, including solar radiation, temperature, humidity, wind speed, and panel temperature.
Selectable Source Monitor
The source monitor can be selected according to the required cell voltage and measurement-current ranges, with bipolar output enabling I-V evaluation across 0 V.
Programmable Measurement Scheduling
Configure the measurement start date and time, suspended periods, measurement intervals, channel-switching intervals, and number of measurements.
Load Resistance Connection
Optional actuator-card configurations can connect cells not currently being measured to load resistances, allowing degradation evaluation under conditions closer to actual operation.
Automatic CSV File Creation
Daily or monthly file creation prevents excessive file growth and supports reliable long-term data collection, with configurable file names and storage destinations.
Solar Simulator Control
Digital I/O or contact-signal output can control a solar simulator or other light-source shutter as part of an automated measurement sequence.
Long-term solar cell exposure testing
Photovoltaic conversion-efficiency evaluation
Solar cell degradation and lifetime studies
Multi-channel I-V characteristic measurement
Indoor solar simulator testing
Outdoor photovoltaic field testing
Dye-sensitized solar cell evaluation
Next-generation solar cell R&D
Photovoltaic material degradation studies
Temperature and solar-radiation correlation analysis
SS9610 System Specifications
| System Type | Multi-channel solar cell evaluation system |
|---|---|
| Standard Measurement Channels | 10 channels |
| Maximum Channels per Scanner | 50 channels with additional scanner cards |
| Expanded Configuration | More than 50 channels available through a customized multi-scanner configuration |
| Primary Measurement | Solar cell I-V characteristics |
| Logged Solar Cell Parameters |
Open-circuit voltage Voc Short-circuit current Isc Maximum-power current Ipmax Maximum-power voltage Vpmax Maximum power Fill factor FF Conversion efficiency η Series resistance Rs Parallel resistance Rsh |
| I-V Log Data | Number of data points, cell voltage, and measurement current |
| Environmental Inputs | Up to 5 inputs for measurements such as solar radiation, temperature, humidity, wind speed, and panel temperature |
| Source Operation | Bipolar output supporting I-V characteristic evaluation across 0 V |
| Light-Source Control | Shutter control using scanner digital I/O or compatible source-monitor contact output |
| Measurement Scheduling | Start date and time, suspended period, measurement interval, channel-switching interval, measurement count, and measurement-channel settings |
| Load Resistance Function | Optional connection of non-measured channels to load resistances using a scanner actuator card |
| Log File Format | CSV |
| Automatic File Creation | Daily or monthly |
| System Interface | GPIB |
| Computer | User-supplied PC with compatible National Instruments PCI-GPIB or USB-GPIB interface |
Compatible Source Monitor Configurations
| Source Monitor | Voltage Range | Current Range |
|---|---|---|
| 6240A | 0 to ±15 V | 0 to ±1 A |
| 6241A | 0 to ±32 V | 0 to ±500 mA |
| 6242 | 0 to ±6 V | 0 to ±5 A |
| 6243 | 0 to ±110 V | 0 to ±2 A |
| 6244 | 0 to ±20 V | 0 to ±10 A |
System configuration and measurement capability depend on the selected source monitor, scanner cards, environmental sensors, and optional equipment. Consult Denkei Americas for configuration assistance.
