Expandable Scanner Platform for Multi-Channel Automated Testing
The ADCMT 3100 / 3101 is an expandable scanner and switch platform for multi-channel data acquisition, semiconductor testing, electronic-component inspection, and automated measurement systems.

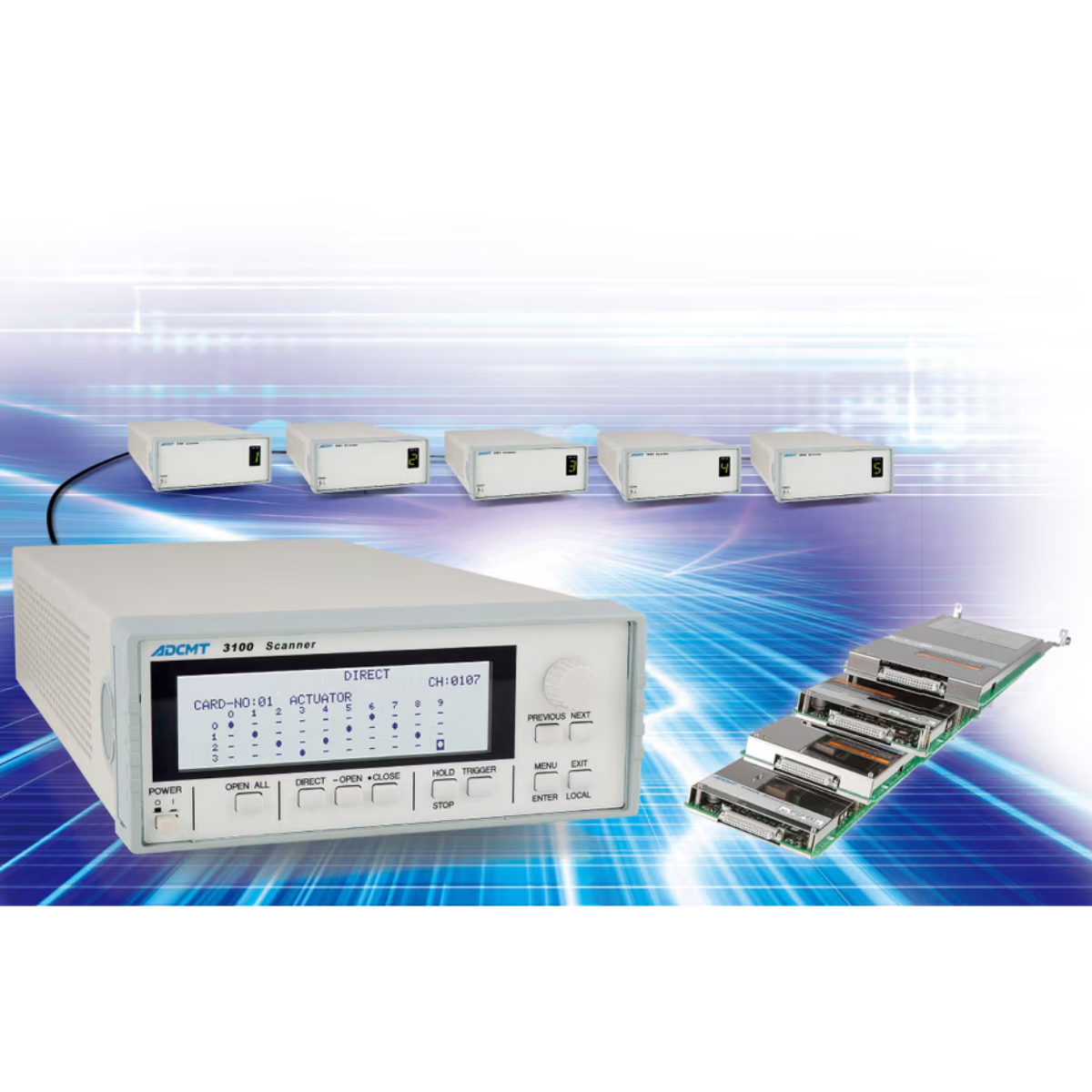

The 3100 scanner provides two switch-card slots and can operate independently for compact systems. Up to five 3101 extenders can be connected through ScanBus, expanding the system to a total of 17 switch-card slots.
Up to 17 Slots
3100 plus as many as five 3101 extenders
Up to 1,360 Channels
Maximum configuration with 1-wire multiplexer cards
330 channels/s
Maximum high-speed switching capability
Up to 10 A
Large-current switching with compatible switch cards
Multiplexer, actuator, and matrix cards support high-speed, high-voltage, high-current, microcurrent, low-thermal-EMF, and general-purpose signal switching. This enables one scanner platform to support a wide variety of measurement instruments and DUT configurations.
The 3100 can be controlled from the front panel or remotely through USB and GPIB. Standard digital I/O provides additional control of relays, indicators, and external equipment in automated test systems.
Expandable to 17 Slots
Start with two switch-card slots in the 3100 and add up to five 3101 extenders with three slots each for a total of 17 slots.
Up to 1,360 Channels
Configure as many as 1,360 switching channels when using compatible 1-wire multiplexer cards across the fully expanded system.
330 Channels/s Switching
High-speed switching supports multi-point data acquisition and automated component inspection requiring rapid channel sequencing.
High-Current Switching to 10 A
Compatible large-current multiplexer and actuator cards support switching currents up to 10 A for power and component testing.
High-Voltage Switching
Optional high-voltage multiplexer cards support applications up to 1000 V, depending on the installed card.
Low-Thermal-EMF Switching
Compatible cards such as the 31005B provide thermal EMF performance at approximately the 1 μV level for precision low-level measurement.
Multiplexer, Actuator and Matrix Cards
Select from multiple switch-card architectures to build switching systems optimized for voltage, current, resistance, or signal routing.
Digital I/O Control
Open-collector digital output supports sink current up to 150 mA, while inputs accept levels from TTL through 28 V for external equipment control.
USB and GPIB Remote Control
Operate locally from the front panel or integrate the scanner into automated measurement systems through USB and GPIB.
Multi-channel voltage measurement
Multi-channel resistance measurement
Semiconductor automated testing
Electronic component production inspection
High-voltage signal switching
High-current device testing
Low-level precision measurement
Automated test-system signal routing
| Specification | 3100 Scanner | 3101 Extender |
|---|---|---|
| Function | Main scanner / controller | Switch-card expansion chassis |
| Switch-Card Slots | 2 | 3 |
| Maximum Extenders | Up to 5 × 3101 | Part of expanded ScanBus system |
| Maximum System Slots | 17 slots | |
| Maximum Channels | Up to 1,360 channels with 1-wire multiplexers | |
| Maximum Switching Speed | Up to 330 channels/s | |
| Maximum Current Switching | Up to 10 A with compatible cards | |
| Maximum High-Voltage Switching | Up to 1000 V with compatible card | |
| Switch Card Types | Multiplexer, actuator, matrix | |
| Maximum Device-to-Device Distance | 10 m | |
| Maximum ScanBus Length | 20 m total | |
| Remote Interface | USB, GPIB | Controlled through ScanBus |
| Digital I/O | Standard | System controlled |
Voltage, current, channel count, insulation resistance, and thermal EMF specifications depend on the installed switch card. Refer to the relevant ADCMT switch-card specifications when configuring a measurement system.
