6½-Digit Precision Source for Calibration and Working-Standard Applications

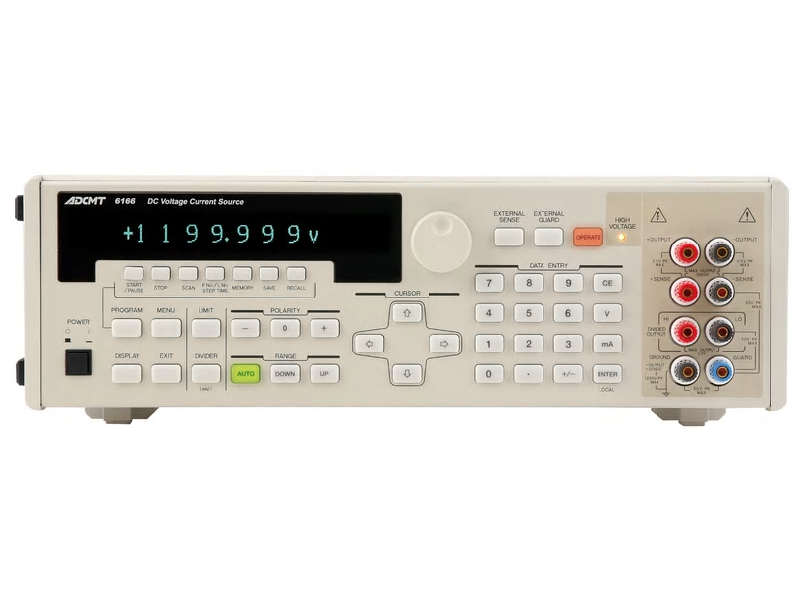

The ADCMT 6166 is a high-accuracy, high-stability DC voltage/current source designed for use as a working standard in calibration laboratories, production systems, and precision electrical measurement environments.
A PWM-based reference-voltage system provides a wide bipolar source range from ±10 nV to ±1200 V for voltage and from ±1 nA to ±120 mA for current. Smooth polarity switching supports precise positive and negative source generation without changing external connections.
±1200 V
Maximum high-voltage output
±120 mA
Wide current-source capability
6½ Digits
High-resolution programmable generation
±35 ppm/year
High long-term voltage-source accuracy
The instrument provides high short-term stability of ±5 ppm over 24 hours, internal storage for up to 1,000 source settings, and programmable trigger control for automated source sequences.
A built-in thermal electromotive-force function can simulate thermocouple outputs from −220°C to +1820°C. USB and GPIB interfaces, rear output terminals, trigger input, and interlock input support both calibration benches and automated measurement systems.
Wide Bipolar Voltage Output
Generate DC voltage from ±10 nV to ±1200 V for precision calibration, characterization, and high-voltage reference applications.
Wide Current Source Range
Source current from ±1 nA to ±120 mA for precision meter calibration and electrical-device testing.
6½-Digit Generation
High-resolution source control enables use as a working standard for calibration laboratories and production inspection systems.
High Accuracy and Stability
Long-term voltage accuracy of ±35 ppm/year and stability of ±5 ppm over 24 hours support demanding reference-source applications.
Bipolar Output
Smooth positive-to-negative polarity transitions eliminate the need to reconnect output wiring for reverse-polarity testing.
Thermal EMF Simulation
Simulate JIS-compliant thermocouple signals corresponding to temperatures from −220°C to +1820°C with 0.1°C resolution.
Programmable Source Memory
Store up to 1,000 source settings and execute programmed values through external trigger control.
High-Voltage Safety Control
Trigger and interlock inputs support controlled high-voltage operation and external safety devices such as foot switches.
System Integration
Standard USB and GPIB interfaces, rear output terminals, and compatibility with legacy 6161 remote commands simplify integration into automated systems.
Digital multimeter calibration
Voltage and current meter calibration
Working-standard reference source
Calibration laboratory systems
High-voltage instrument verification
Thermocouple thermometer calibration
Automated production calibration
Precision electronic-device evaluation
| Generation Resolution | 6½ digits |
|---|---|
| Output Method | Bipolar |
| Maximum Output | ±1200 V / ±12 mA |
| Voltage Source Range | ±10 nV to ±1200 V |
| Voltage Source Accuracy | 0.0035% typical |
| Current Source Range | ±1 nA to ±120 mA |
| Current Source Accuracy | 0.0055% typical |
| Long-Term Accuracy | ±35 ppm/year |
| Short-Term Stability | ±5 ppm / 24 hours |
| Thermal EMF Output | −220°C to +1820°C, 0.1°C resolution |
| Typical Output Noise | 3 mVp-p |
| Settling Time | 1 second or less |
| Program Memory | 1,000 data sets |
| Interfaces | USB, GPIB; BCD factory option |
