High-Resolution Handheld Optical Power Meter

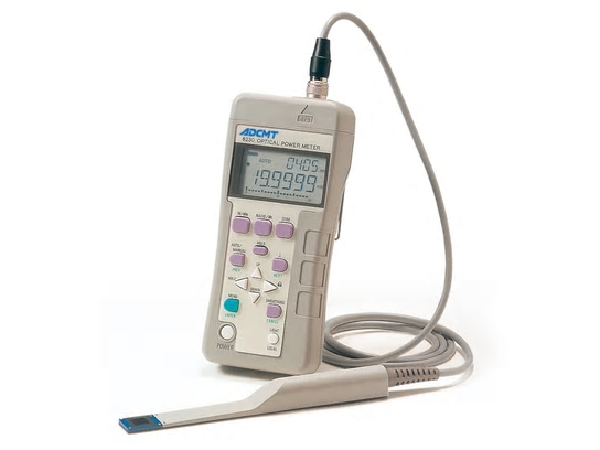

The ADCMT 8230 provides high-resolution optical power measurement for the development, production, and automated testing of laser diodes, optical pickups, and optical drives.
Nine compatible optical sensors cover general-purpose, blue-violet, high-power, and three-wavelength measurement. Thin, cylindrical, and wide-area sensor configurations support optical pickups, confined measurement locations, optical benches, fibers, and high-NA lenses.
5½-Digit Display
High-resolution optical power measurement in W, dBm, or dBr
0.001 dB Resolution
Precise relative optical power measurement
Nine Sensor Options
General-purpose, blue-violet, high-power, and three-wavelength sensors
405 / 650 / 780 nm
Supports Blu-ray Disc, DVD, and CD laser measurement
Blue-violet sensors provide a flat sensitivity characteristic around 405 nm. Three-wavelength sensors support 405 nm, 650 nm, and 780 nm laser measurements, while high-power sensors measure optical power up to 200 mW.
The standard USB interface allows direct digital data acquisition from a PC and supports automated production systems without requiring an additional GPIB interface. An analog output is also provided.
Compare additional instruments in the
Denkei Optical Power Meter selection →
5½-Digit Optical Power Display
Provides optical power resolution down to 0.1 pW in watt display or 0.001 dB in dBm display.
Nine Compatible Optical Sensors
Select from general-purpose, blue-violet, high-power, and three-wavelength sensors in thin, cylindrical, or wide-area configurations.
405 nm Blue-Violet Measurement
Compatible 82312B and 82322B sensors provide a flat wavelength sensitivity characteristic and reduced incident-angle dependency around 405 nm.
Three-Wavelength Optical Testing
Compatible 82314B, 82314BW, and 82324B sensors support 405 nm, 650 nm, and 780 nm laser measurement for Blu-ray Disc, DVD, and CD applications.
High-Power Measurement to 200 mW
The 82313B and 82323B sensors measure high-power laser output up to 200 mW with a minimum specified beam-spot diameter of 0.1 mm.
1 nm Wavelength Correction
Automatic wavelength sensitivity correction adjusts the connected sensor response according to the wavelength setting in 1 nm increments.
USB System Integration
Standard USB connectivity supports direct PC data acquisition and simplifies integration into automated optical-device production systems.
Flexible Sensor Shapes
Thin sensors suit optical pickups and confined spaces, while cylindrical sensors support optical benches, built-in systems, and fiber-output measurement.
Wide-Area Sensor Option
The 82314BW provides a larger light-receiving area for stable measurement of emission from high-NA lenses.
Laser diode optical power measurement
Optical pickup development and production
Blu-ray Disc 405 nm laser testing
DVD 650 nm laser testing
CD 780 nm laser testing
High-power laser measurement up to 200 mW
High-NA lens emission measurement
Optical-fiber output measurement
Automated optical-device production testing
Optical bench and laboratory measurement
8230 Specifications
| Power Display | 5½ digits |
|---|---|
| Display Units | mW, μW, nW, dBm, dBr |
| Wavelength Display | 4 digits |
| Display Resolution |
0.1 pW in watt display 0.001 dB in dBm display |
| Measurement Ranges | 8 ranges |
| Range Switching | Automatic, manual, or remote |
| Measurement Speed | 5 readings/s or more |
| Wavelength Sensitivity Correction | Automatic correction by wavelength setting in 1 nm steps |
| Meter Accuracy |
20 nW range: ±(0.55% + 2,000 digits) 200 nW range: ±(0.15% + 200 digits) 2 μW to 200 mW ranges: ±(0% + 70 digits) |
| Accuracy Condition | Values are added to the connected sensor accuracy and apply within 24 hours after offset-zero execution |
| Interfaces | USB and analog output |
Compatible Optical Sensor Families
| Specification | General-Purpose | Blue-Violet | High-Power | Three-Wavelength |
|---|---|---|---|---|
| Models | 82311B 82321B |
82312B 82322B |
82313B 82323B |
82314B 82314BW 82324B |
| Available Shapes | Thin Cylindrical |
Thin Cylindrical |
Thin Cylindrical |
Thin Thin and wide Cylindrical |
| Wavelength Range | 390 to 1100 nm | 390 to 450 nm | 390 to 1100 nm | 390 to 900 nm |
| Power Range |
−60 to +17 dBm 1 nW to 50 mW |
−50 to +20 dBm 10 nW to 100 mW |
−50 to +23 dBm 10 nW to 200 mW |
−50 to +20 dBm 10 nW to 100 mW |
| Standard Calibration Wavelength | 780 nm | 405 nm | 650 nm | 405 nm |
| Minimum Beam Spot | 3 mm dia. | 1 mm dia. | 0.1 mm dia. | 3 mm dia. |
| Primary Use | General optical power measurement | 405 nm blue-violet lasers | High-power lasers | 405 / 650 / 780 nm lasers |
Optical power range, measurement accuracy, calibration wavelength, and wavelength correction depend on the connected sensor and selected calibration options.
