Two-Channel Digital Multimeters for Synchronous and Parallel Measurement
The ADCMT 7352A and 7352E combine two independent measurement channels with twin A/D converters, enabling synchronous measurement without switching between channels.
Channel A supports DC voltage/current, AC voltage/current, resistance, frequency, diode, and continuity measurements, while Channel B supports DC voltage/current and AC current measurement. Temperature measurement is also available through the rear TEMP input.
Twin A/D Converters
Independent Ach and Bch measurement
2-Channel Synchronous
Measure two functions without channel switching
10 pA to 10 A
Wide current measurement capability across Ach and Bch
Up to 140 rdgs/s
High-speed single-channel measurement
The independent channel architecture allows parallel measurements such as voltage/current, voltage/temperature, current/temperature, and AC/DC measurements while reducing the influence between channels.
The 7352A provides USB, GPIB, and RS-232 interfaces for system integration, while the 7352E provides USB for a simpler system configuration.
Compare additional instruments in the
Denkei Digital Multimeter selection →

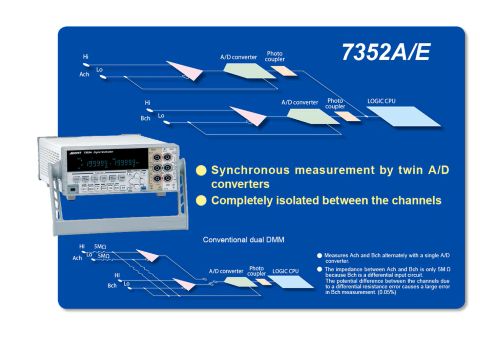

Twin A/D Converter Architecture
Independent A/D converters for Channel A and Channel B enable synchronous two-channel measurement without switching measurement functions between the channels.
Independent Two-Channel Measurement
Channel B is electrically independent from Channel A, supporting accurate parallel measurement even when a potential difference exists between the two channels.
Wide Current Measurement Range
Channel A supports current measurement from 10 pA to 2 A, while Channel B extends measurement up to 10 A.
High-Speed Measurement
The series supports up to 140 readings per second for single-channel measurement and up to 123 readings per second for two-channel synchronous measurement.
Multiple Measurement Functions
Measure combinations of voltage, current, resistance, AC signals, frequency, and temperature for component, power-unit, and system evaluation.
Flexible System Interfaces
The 7352A includes USB, GPIB, and RS-232 interfaces, while the 7352E provides USB connectivity for simpler measurement systems.
DC/DC converter input and output evaluation
Power unit testing
Voltage and current parallel measurement
Current and temperature measurement
Production-line measurement systems
Multi-channel R&D measurement systems
7352A / 7352E Specifications
| Specification | 7352A | 7352E |
|---|---|---|
| Maximum Display | 199,999 (Ach / Bch) | |
| Maximum Measurement Speed | 140 readings/s | |
| DC Voltage — Ach | 1 μV to 1000 V | |
| DC Voltage — Bch | 1 μV to 200 V | |
| Accuracy — Typical | 0.011% / year | |
| DC Current — Ach | 10 pA to 2 A | |
| DC Current — Bch | 100 μA to 10 A | |
| Resistance — Ach | 1 mΩ to 200 MΩ | |
| AC Voltage — Ach | 1 μV to 700 V True RMS | |
| AC Voltage Frequency Range | 20 Hz to 100 kHz | |
| AC Current — Ach | 1 nA to 2 A True RMS | |
| AC Current — Bch | 100 μA to 10 A True RMS | |
| Temperature Measurement |
K (CA): -50°C to 1370°C T (CC): -50°C to 400°C | |
| Data Memory | 20,000 | |
| Interface | USB, GPIB, RS-232 | USB |
| External Trigger | Supported | Not available |
