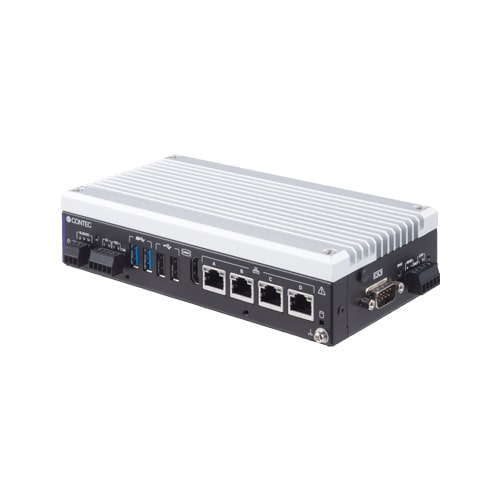

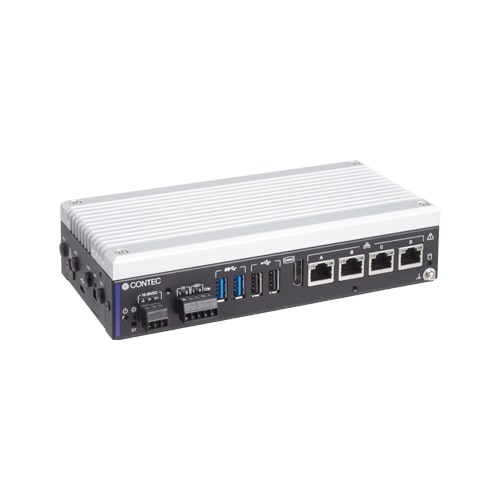

Industrial Edge AI Computer DX-U2000

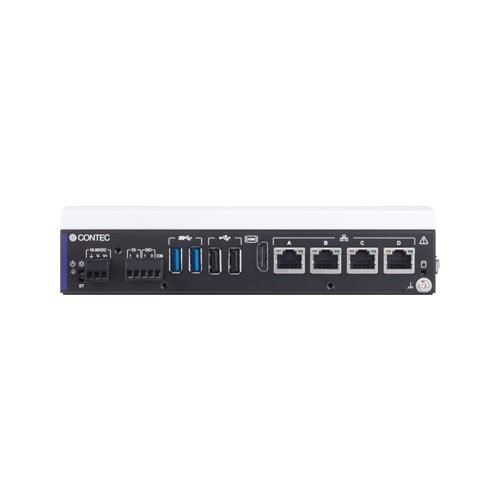

An industrial AI computer powered by NVIDIA Jetson Orin NX, offering 4G LTE, Gigabit LAN, NVMe storage, and Ubuntu for real-time AI tasks in rugged environments This industrial edge AI comuter, powered by the NVIDIA Jetson Orin NX module, is built for This industrial edge AI computer, powered by the NVIDIA® Jetson Orin NX™ module, is built for practical, real-world applications. It features four Gigabit LAN ports, an HDMI port, four USB ports, general I/O, serial, and CAN ports, as well as an RTC (real-time clock) for flexible connectivity and integration. With large-capacity NVMe storage included as standard, this system is designed to handle demanding tasks in rugged environments. To ensure durability, it comes with pre-attached sheet metal and connector caps for dust protection, preventing debris from entering through the vents. Ubuntu is pre-installed, and the JetPack SDK is available, allowing users to run applications developed with the Jetson developer kit. The LTE model also includes a SIM-free LTE communication module, supporting 4G LTE Cat. 4 connectivity, making it ideal for remote or mobile applications.This Edge AI accelerator leverages the power of the NVIDIA Jetson Orin NX, making it suitable for real-time AI inference tasks in fields such as image inspection and predictive maintenance. It includes built-in large-capacity NVMe storage, ensuring that users concerned about storage capacity can rely on it for data-heavy applications with confidence. Key Features:
• 4G LTE Cat.4 Communication: A SIM-free LTE communication module is available, compliant with Japan's Radio Law, enabling 4G LTE Cat.4 communication (requires a separate SIM card contract). Note that wireless communication functionality is limited to use within Japan.
• Four Gigabit LAN Ports: Ideal for edge computing setups requiring alternating connections between different network layers, such as video acquisition and integration with higher-order information systems.
• Flexible Installation: The device comes with an L-shaped mounting bracket, allowing for easy installation on walls, VESA-compatible LCD monitors, or 35-mm DIN rails using the provided DIN rail adapter.
• Wide Operating Temperature Range: Designed for stable operation in harsh environments, the device can function reliably between -20°C and 60°C, provided adequate airflow is maintained (0.7m/s).
Mechanical Design
| Mounting | DIN Rail Mount; VESA 100 x 100; Wall Mount |
|---|
Software Support
| Supported OS | Linux Ubuntu; SDK JetPack |
|---|
Core System
| Processor | ARM Cortex-A78AE v8.2 2GHz (8core); ARM Cortex-A78AE v8.2 2GHz (6core) |
|---|---|
| CPU Generation (Development code) | - |
| CPU socket | - |
| Memory | up to 16GB |
| RAS | - |
| GPU | 1024 CUDA Core, 32 Tensor Core |
| AI Performance | 100 TOPS (INT8); 70 TOPS (INT8); - |
| Security | - |
Interface
| Video | 1x HDMI |
|---|---|
| LAN | 4x 1000BASE-T/100BASE-TX/10BASE-T |
| Wireless | 4G LTE CAT4 |
| Audio | - |
| I/O | 2x USB3.2 Gen2 (USB3.1); 2x USB2.0; 1x RS-232C; 1x RS-485; 1x CAN |
Power
| Input voltage | 10 to 30VDC |
|---|
Environment
| Operating temperature | -20 to 60°C (-4 to 140°F) w/ airflow 0.7m/s |
|---|---|
| Storage temperature | -20 to 60°C (-4 to 140°F) |
| Standards & Certifications | CE; FCC Class A; TELEC; UKCA; VCCI Class A |
