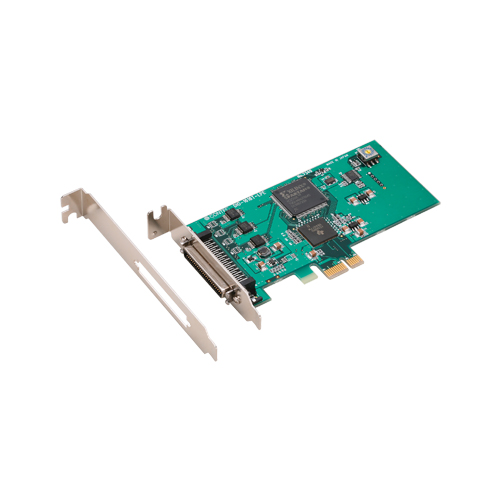

CONTEC DIO-1616T-LPE Digital I/O Low Profile PCI Express Card
Low-profile PCI Express digital I/O card with 16 non-isolated TTL inputs, 16 open-collector outputs, 200 ns response, and interrupt support on all input channels.
High-Speed Digital I/O for PCI Express Systems
The CONTEC DIO-1616T-LPE is a low-profile PCI Express digital I/O card providing 16 non-isolated TTL-level inputs and 16 non-isolated open-collector outputs for PC-based control, monitoring, and test systems.
With input and output response times of up to 200 ns, the card is designed for applications requiring fast digital signal interfacing. All 16 input channels can be used as interrupt sources, with interrupt enable or disable control and selectable interrupt edges.16 Inputs / 16 OutputsTTL-level digital input and open-collector output
200 nsMaximum input and output response time
16 Interrupt InputsAll digital inputs can generate interrupt events
Low Profile PCIeAlso supports standard-size slots using the supplied bracket
16 Digital Inputs
Provides 16 non-isolated TTL-level digital input channels for high-speed PC-based signal acquisition and control.
16 Open-Collector Outputs
Provides 16 non-isolated open-collector digital output channels with a maximum rated output of 30 VDC and 40 mA per channel.
200 ns Response
Input and output circuits provide response times of up to 200 ns for high-speed digital I/O applications.
Interrupt on All Inputs
All 16 input signals can be used as interrupt events, with bit-level enable or disable control and selectable interrupt edges.

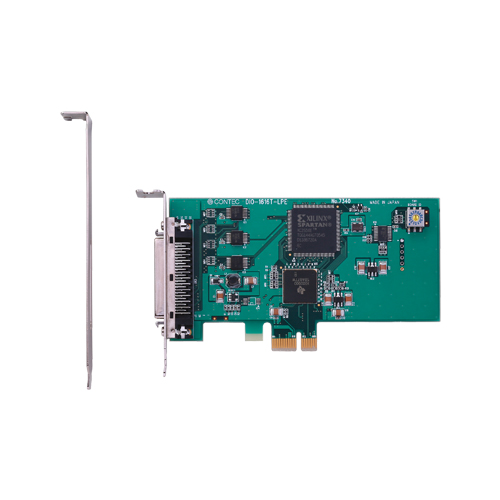

Low Profile PCI Express
Designed for low-profile PCI Express slots and also supports standard-size slots by replacing the bracket with the supplied standard bracket.

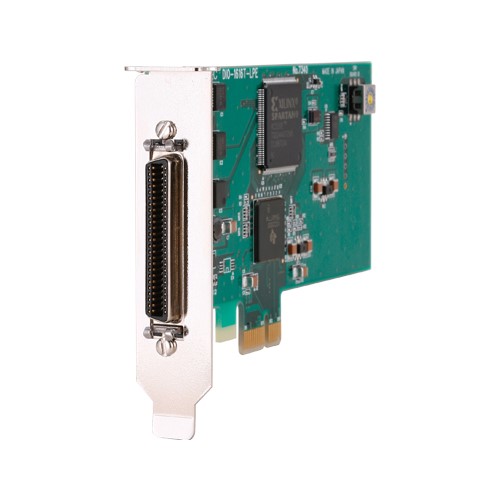

50-Pin Connector
Uses a 50-pin miniature ribbon connector for connection to external digital signals and optional terminal accessories.
Legacy Card Compatibility
Provides equivalent functionality and compatible connector signal assignment with the CONTEC PIO-16/16T(LPCI)H.
Windows and Linux Support
CONTEC provides digital I/O driver and development resources for supported Windows and Linux environments.
Automated Test Systems
High-speed digital signal input and output for PC-controlled test and measurement systems.
Machine Control
Digital interfacing between industrial PCs and machine-control hardware.
Equipment Monitoring
Monitoring of fast digital status and control signals from connected equipment.
Production Equipment
PCI Express digital I/O integration for automated production and inspection systems.
Event Detection
Interrupt-based detection of digital input events without continuous software polling.
Legacy System Migration
PCI Express replacement path for systems using compatible PIO-16/16T(LPCI)H signal connections.
| Model | DIO-1616T-LPE |
|---|---|
| Bus Interface | PCI Express |
| Board Size | Low Profile |
| Digital Inputs | 16 channels |
| Digital Outputs | 16 channels |
| Input Voltage | 5 VDC TTL |
| Output Voltage | 5 VDC TTL |
| Input Circuit | Non-isolated TTL-level input, negative logic |
| Output Circuit | Non-isolated TTL open-collector output, negative logic |
| Input Response Time | 200 ns max. |
| Output Response Time | 200 ns max. |
| Interrupt Inputs | 16 channels |
| Maximum Output Rating | 30 VDC, 40 mA per channel |
| Connector | 50-pin miniature ribbon connector |
| Built-In Power Supply | None |
| Supported Slot | Low Profile PCI Express / Standard size with supplied bracket |
| Supported OS | Windows / Windows Server / Linux, depending on driver version |
Legacy Card Compatibility
| Compatible Legacy Card | PIO-16/16T(LPCI)H |
|---|---|
| Function Compatibility | Equivalent digital I/O functionality |
| Connector | Compatible connector shape |
| Signal Assignment | Compatible connector signal assignment |
| PCI Express Installation | Low-profile card with standard-size bracket supplied |
