Fanless High-Performance Embedded Computing for Industrial Systems

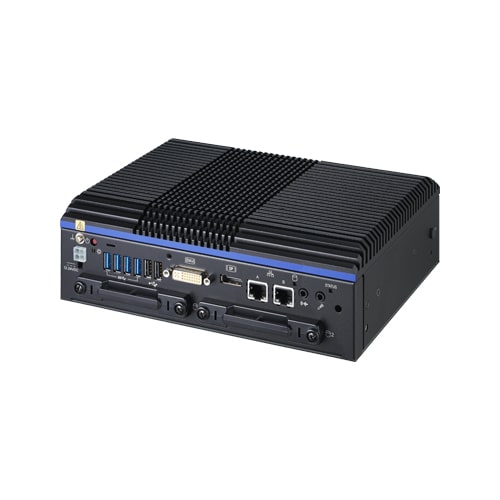

The CONTEC BX-M4600 Series is a fanless industrial box computer powered by 13th Generation Intel Core processors for factory automation, machine control, industrial data processing, and embedded computing applications.
The series combines high-performance computing with dual 2.5 Gigabit Ethernet, USB 3.2 Gen2, serial interfaces, removable 2.5-inch SATA storage, and a wide 9 to 36 VDC input range. Multiple processor and memory configurations are available to support different industrial computing requirements.13th Gen Intel CoreCore i3, Core i5, and Core i7 processor options
2 × 2.5GbEHigh-speed industrial network connectivity
2 × SATA BaysRemovable 2.5-inch storage for system and data management
9–36 VDCWide-range DC power input for industrial installations
13th Gen Intel Core Processors
Available with Intel Core i3-13100TE, Core i5-13500TE, or Core i7-13700TE processors for different performance requirements.
Fanless Industrial Design
Fanless construction reduces moving components and supports installation in industrial equipment and control systems.
Dual 2.5GbE LAN
Two 2500BASE-T Ethernet ports provide high-speed network connectivity for industrial systems and data-intensive applications.
Removable SATA Storage
Two front-accessible 2.5-inch SATA drive bays simplify storage replacement, maintenance, and separation of system and collected data.
Rich Industrial Interfaces
Includes USB 3.2 Gen2, USB 2.0, DisplayPort, DVI-I, multiple serial ports, GPIO, and audio interfaces.
Up to 64 GB Memory
Supports up to 64 GB of system memory for demanding industrial applications and data-processing workloads.
TPM 2.0 Security
Built-in TPM 2.0 supports system security and storage-protection requirements in industrial deployments.
Wide 9–36 VDC Input
Wide-range DC input with overvoltage and overcurrent protection supports integration into industrial power environments.
Factory Automation
Embedded computing for production equipment, factory control systems, and industrial automation.
Machine Control
PC-based control platform for industrial machines and automated equipment.
Industrial Data Processing
Local processing and storage of production, equipment, and measurement data.
Equipment Monitoring
Continuous monitoring of industrial systems using network, serial, and digital interfaces.
Digital Signage
Industrial graphics platform for display systems and digital signage applications.
Machine Vision Systems
Industrial PC platform for image-processing and camera-based inspection systems requiring high computing performance.
| Series | BX-M4600 Series |
|---|---|
| Processor Options | Intel Core i3-13100TE / Core i5-13500TE / Core i7-13700TE |
| CPU Generation | 13th Generation Intel Core (Raptor Lake-S) |
| Memory | Up to 64 GB |
| Security | TCG TPM 2.0 |
| Video Output | 1 × DisplayPort 1.4 / 1 × DVI-I |
| LAN | 2 × 2500BASE-T |
| USB | 4 × USB 3.2 Gen2 / 2 × USB 2.0 |
| Serial Interfaces | 3 × RS-232C / 1 × RS-232C, RS-422A, or RS-485 |
| Storage | 2 × removable 2.5-inch SATA drive bays |
| Expansion | 1 × M.2 Key B / 1 × M.2 Key E |
| Input Voltage | 9–36 VDC |
| System Monitoring | Hardware monitor and watchdog timer |
| Mounting | Desktop / Wall Mount / VESA 75 × 75 / VESA 100 × 100 |
| Operating Temperature | Up to 55°C depending on configuration and required airflow |
| Supported OS | Windows IoT Enterprise configurations available depending on model |
| Certifications | CE / FCC Class A / UKCA / VCCI Class A |
Processor Options
| Processor | Positioning |
|---|---|
| Intel Core i3-13100TE | Entry configuration for general industrial control and embedded computing. |
| Intel Core i5-13500TE | Mid-range configuration for higher-performance automation and data-processing applications. |
| Intel Core i7-13700TE | High-performance configuration for demanding computing, graphics, and industrial workloads. |
