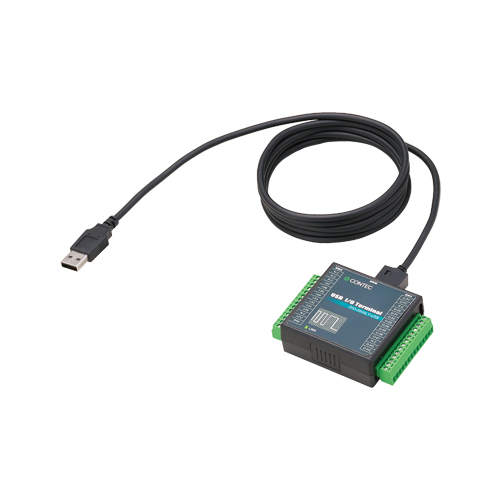

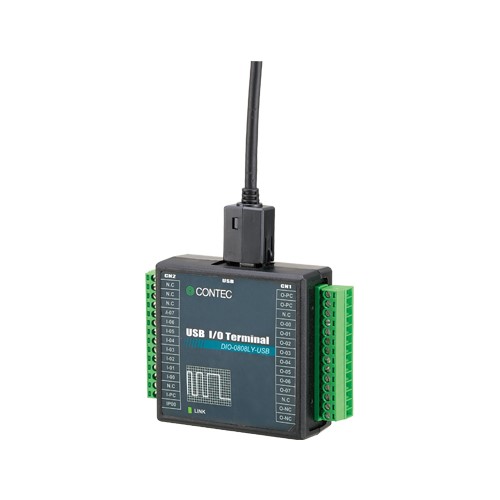

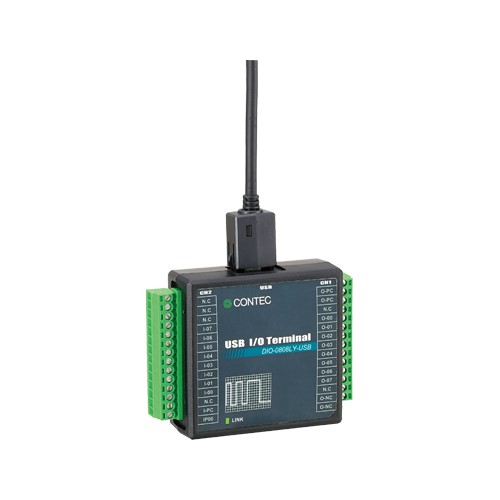

CONTEC DIO-0808LY2-USB Digital I/O USB Terminal
8-channel isolated digital input and 8-channel isolated digital output USB terminal for PC-based industrial control, monitoring, automation, and test systems.
Isolated Digital I/O Expansion via USB
The CONTEC DIO-0808LY2-USB is a compact USB digital I/O terminal designed to add isolated digital signal input and output capability to PC-based control, monitoring, automation, and test systems.
It provides 8 opto-coupler isolated digital inputs and 8 opto-coupler isolated open-collector outputs for 12 to 24 VDC signals. USB bus power eliminates the need for a separate power supply for the unit, while screw-terminal connections simplify integration with industrial equipment.8 Inputs / 8 OutputsOpto-isolated digital I/O for industrial signal interfacing
12–24 VDCSupports common industrial digital signal voltage levels
300 μsMaximum input and output response time
USB Bus PoweredNo external power supply required for the unit
8-Channel Isolated Input
Provides 8 opto-coupler isolated digital input channels supporting current-sink output signals.8-Channel Isolated Output
Provides 8 opto-coupler isolated open-collector outputs with current-sink configuration.12–24 VDC Signal Support
Digital inputs and outputs support 12 to 24 VDC signals for industrial equipment interfacing.USB Bus-Powered Operation
Supports USB 2.0 and USB 1.1 and operates from USB bus power without requiring an external power supply for the unit.Interrupt Control
All 8 digital input channels support interrupt control for event-driven signal monitoring.Digital Filter
Built-in digital filtering helps reduce unwanted input transitions caused by signal noise.Protected Output Circuit
Output circuitry incorporates surge-voltage protection and overcurrent protection.Windows / Linux Support
CONTEC provides supported device drivers for Windows and Linux development environments.Factory Automation
Digital signal interfacing between PC-based systems and industrial equipment.
Machine Control
Input monitoring and digital output control for machines and automated equipment.
Equipment Monitoring
Monitoring of switches, sensors, status signals, and other digital inputs.
Production Test Systems
Digital I/O integration for PC-controlled production and functional test equipment.
Inspection Equipment
Digital signal interfacing for automated inspection and quality-control systems.
Laboratory Automation
PC-based digital control and monitoring of laboratory equipment and test setups.
| Model | DIO-0808LY2-USB |
|---|---|
| Series | PC-HELPER USB Type Y |
| Bus Specification | USB |
| Digital Inputs | 8 channels |
| Digital Outputs | 8 channels |
| Input Operating Voltage | 12–24 VDC |
| Output Operating Voltage | 12–24 VDC |
| Input Circuit | Opto-isolated input for current-sink output |
| Output Circuit | Opto-isolated open-collector output, current-sink type |
| Input Response Time | 300 μs max. |
| Output Response Time | 300 μs max. |
| Interrupt Control | 8 input channels |
| Digital Filter | Supported |
| Connector | 2 × 14-pin screw terminal blocks |
| Power | USB bus powered |
| Supported OS | Windows / Linux |
Replacement for DIO-0808LY-USB
| Previous Model | DIO-0808LY-USB |
|---|---|
| Successor Model | DIO-0808LY2-USB |
| Digital I/O Specifications | No change from the previous model |
| New Functions | 8-channel interrupt control and digital filter |
| Device Identification | Changed from internal ID to switch setting |
| Maximum Concurrent Units | Changed from 127 to 16 |
| USB Connector | Position and orientation changed from the previous model |
| Driver Migration | API-DIO(WDM) / API-DIO(LNX) must be updated to a supported version when replacing the previous model |
