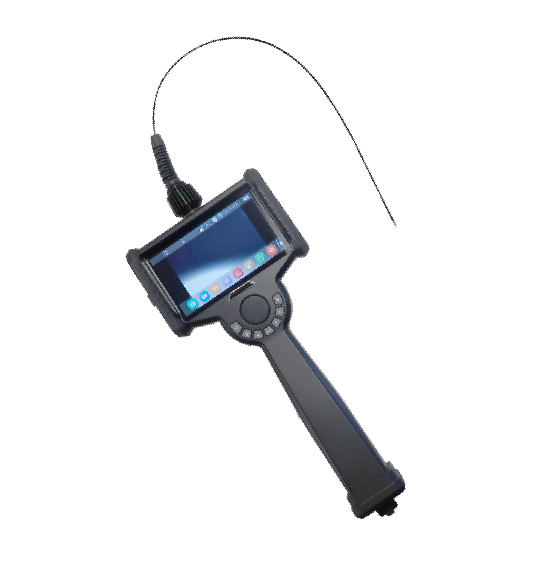

Shodensha MIVS-1805TP 1.8 mm Ultra-Thin Industrial Endoscope

Shodensha
Type: Industrial Endoscopes, Inspection & Testing Systems
Supplier / Manufacturer: Shodensha
Model: MIVS-1805TP

Ultra-thin industrial endoscope with a 1.8 mm probe, 160,000-pixel imaging, 120° field of view, 2 mm close focusing, and a 6-inch touchscreen for inspection inside narrow and difficult-to-access areas.

Industries & Applications:
1.8 mm EndoscopeBorescopeIndustrial EndoscopeInternal InspectionQuality InspectionUltra-Thin EndoscopeVisual Inspection
Contact Us

1.8 mm Ultra-Thin Endoscope for Narrow Internal Inspection

The Shodensha MIVS-1805TP is an ultra-thin industrial endoscope with a 1.8 mm probe designed for visual inspection inside narrow holes, precision components, machinery, and other difficult-to-access internal spaces.

The 160,000-pixel camera combines a wide 120° field of view with close focusing down to approximately 2 mm, supporting detailed observation in confined areas. Fiber-optic illumination provides strong, natural white light even when inspecting at very short working distances.
1.8 mm ProbeUltra-thin insertion diameter for narrow spaces and small openings
160,000 PixelsClear imaging for detailed visual inspection
120° Field of ViewWide viewing angle for efficient internal inspection
2 mm Close FocusDesigned for detailed observation at very short working distances
The MIVS-1805TP also features a detachable probe, durable tungsten-steel cable construction, IP67 protection for the insertion section, image and video recording, and HDMI output for viewing inspection images on an external display.

1.8 mm Ultra-Thin Probe

The 1.8 mm probe enables inspection inside narrow holes, small components, and confined internal spaces that are difficult to access with conventional inspection cameras.

160,000-Pixel Imaging

Provides clear imaging with image processing optimized for detailed industrial visual inspection.

Fiber-Optic Illumination

Fiber-optic lighting delivers strong, natural white illumination to the probe tip for improved visibility in dark and confined inspection areas.

120° Wide Field of View

A 120° viewing angle provides a broad view of internal surfaces and helps reduce repositioning during inspection.

Approx. 2 mm Close Focus

Supports clear observation from approximately 2 mm, making the endoscope suitable for inspection where very little working distance is available.

Detachable Probe Design

The camera probe can be removed from the main unit, allowing probe replacement and use of compatible probe sizes without replacing the complete system.

Durable Tungsten-Steel Cable

The probe cable uses tungsten-steel construction to improve durability when working around narrow passages, obstacles, and industrial equipment.

6-Inch Touchscreen & HDMI Output

A 6-inch touchscreen supports on-site viewing and operation, while HDMI output allows inspection images to be displayed on an external monitor.

Precision Component Inspection Internal visual inspection of small mechanical parts, precision assemblies, and components with restricted access.
Small Holes & Narrow Passages Inspection inside openings and passages where conventional industrial endoscopes cannot be inserted.
Manufacturing Quality Inspection Visual checking for defects, contamination, damage, burrs, or other internal conditions during production and quality control.
Machinery Inspection Inspection of internal equipment and mechanical structures without requiring extensive disassembly.
Maintenance & Troubleshooting Visual investigation of difficult-to-access internal areas during equipment maintenance and failure analysis.
Research & Engineering Detailed observation of confined internal spaces for engineering evaluation, development, and laboratory inspection.
Model MIVS-1805TP
Probe Diameter 1.8 mm
Camera Resolution 160,000 pixels
Effective Probe Length 0.5 m
Monitor 6-inch touchscreen
Monitor Resolution 1024 × 768
Field of View 120°
Minimum Focusing Distance Approx. 2 mm
Dust / Water Protection IP67, insertion section
Illumination Fiber-optic illumination
Brightness Adjustment OFF + 9 levels
External Output HDMI
Storage MicroSD card up to 128 GB / 128 GB internal memory
Still Image Format JPEG, 400 × 400 or 640 × 480
Video Format MP4, 400 × 400 or 640 × 480, 30 fps
Power Supply 4 × 18650 batteries, 3.7 V / 2200 mAh or 5 V / 3.0 A AC adapter
Battery Operating Time Approx. 4 hours
Insertion Section Operating Temperature -20°C to 70°C
Main Unit Operating Temperature -10°C to 50°C
Storage Temperature -20°C to 60°C, non-condensing
Dimensions 350 × 150 × 60 mm
Weight Approx. 820 g, excluding insertion section
