Shodensha MIVS-08505TP 0.85 mm Ultra-Thin Industrial Endoscope

Shodensha
Type: Industrial Endoscopes, Inspection & Testing Systems
Supplier / Manufacturer: Shodensha
Model: MIVS-08505TP

Ultra-thin industrial endoscope with a 0.85 mm probe, 160,000-pixel imaging, selectable close-range or standard focus, 120° field of view, and a 6-inch touchscreen.

Industries & Applications:
0.85 mm EndoscopeBorescopeClose-Range InspectionIndustrial EndoscopeInternal InspectionMicro Hole InspectionUltra-Thin Endoscope
Contact Us

0.85 mm Ultra-Thin Endoscope for Extremely Small Inspection Areas

The Shodensha MIVS-08505TP is an ultra-thin industrial endoscope featuring a 0.85 mm probe for visual inspection inside extremely small holes, narrow spaces, and miniature components.

The MIVS-08505TP is available with two focus specifications to match the inspection distance: a close-range type with an observation depth of 0.5 to 3 mm, and a standard type covering 3 to 70 mm. The 160,000-pixel camera and 120° field of view support clear internal observation across a range of inspection conditions.
0.85 mm Probe Ultra-thin diameter for extremely small holes and narrow spaces
Two Focus Options Choose 0.5–3 mm close-range or 3–70 mm standard observation
160,000 Pixels Clear imaging with noise-reduction image processing
120° Field of View Wide viewing angle for internal inspection
Fiber-optic illumination provides strong light and natural white illumination at the probe tip. The system also features a 6-inch touchscreen, detachable probe design, still-image and video recording, and HDMI output for sharing inspection images on an external display.

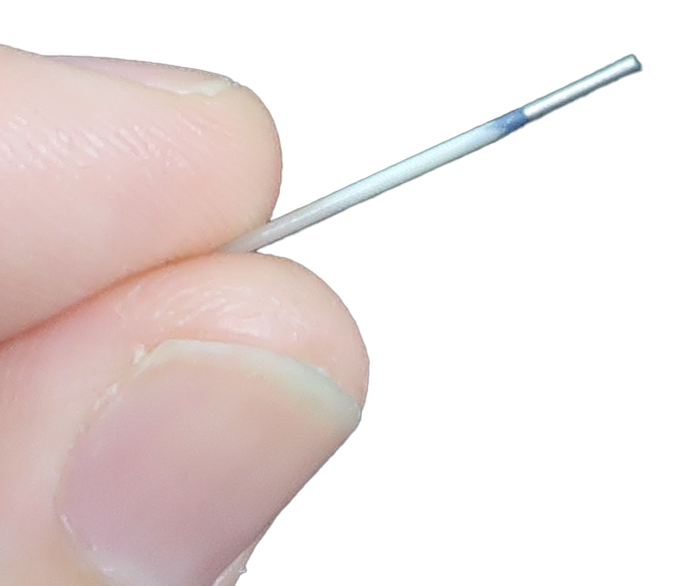

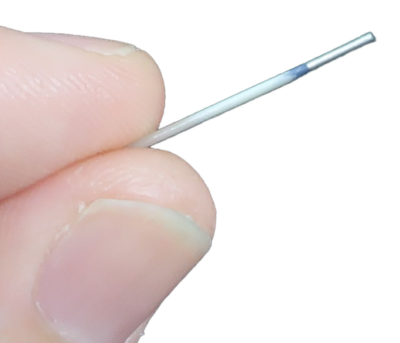

0.85 mm Ultra-Thin Probe

The 0.85 mm probe enables internal observation through extremely small holes and confined spaces that are difficult to access with conventional industrial endoscopes.

Two Focus Configurations

Select either a close-range focus specification of 0.5 to 3 mm or a standard focus specification of 3 to 70 mm depending on the inspection distance.

160,000-Pixel Imaging

High image-processing performance and noise reduction provide clear endoscope images for detailed internal observation.

Fiber-Optic Illumination

Fiber-optic lighting delivers strong illumination and natural white light for inspection inside narrow and dark spaces.

120° Wide Field of View

A 120° field of view provides a wider viewing area than conventional narrow-angle industrial endoscopes.

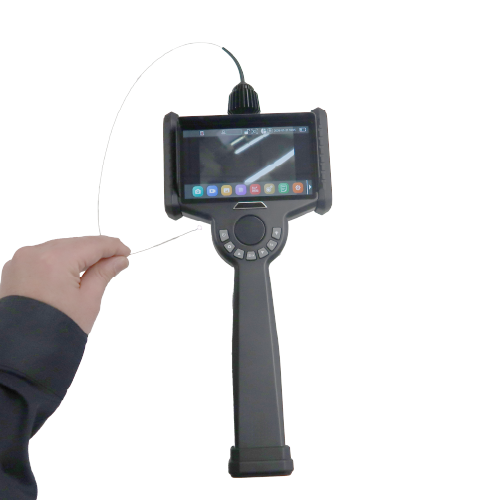

6-Inch Touchscreen

The 6-inch touchscreen supports image viewing, still-image and video storage, and brightness adjustment directly from the main unit.

Detachable Probe Design

The probe can be removed from the main unit, allowing compatible camera cable units to be replaced or changed independently.

HDMI Output

HDMI output allows the endoscope image to be displayed on an external monitor for viewing by multiple users.

Micro Hole Inspection Internal observation of extremely small holes using the 0.85 mm probe.
Miniature Component Inspection Visual inspection of very small components and internal structures.
Ultra-Close Inspection The 0.5–3 mm close-range focus option supports observation where the probe must be positioned extremely close to the target.
General Internal Inspection The 3–70 mm standard focus option supports conventional internal inspection at a broader working distance.
Pipe Inspection Internal visual inspection of narrow piping and confined passages.
Machinery Inspection Observation of internal machine areas that are difficult to access directly.
Model MIVS-08505TP
Probe Diameter 0.85 mm
Camera Resolution 160,000 pixels
Effective Probe Length 0.5 m
Focus Options Close-range: 0.5–3 mm / Standard: 3–70 mm
Monitor 6-inch touchscreen
Monitor Resolution 1024 × 768
Field of View 120°
Storage MicroSD card up to 128 GB / 128 GB internal memory
External Output HDMI
Languages Japanese, English, Chinese, German, Spanish, French, Italian
Illumination Fiber-optic illumination
Brightness Adjustment OFF + 9 levels
Power Supply 4 × 18650 batteries, 3.7 V / 2200 mAh or 5 V / 3.0 A AC adapter
Battery Operating Time Approx. 4 hours
Still Image Format JPEG, 400 × 400 or 640 × 480
Video Format MP4, 400 × 400 or 640 × 480, 30 fps
Insertion Section Operating Temperature -20°C to 70°C
Main Unit Operating Temperature -10°C to 50°C
Storage Temperature -20°C to 60°C, non-condensing
Dimensions 350 × 150 × 60 mm
Weight Approx. 820 g, excluding insertion section

Standard Type (Observation Depth: 3–70 mm)
