Shodensha MIVS-1205TP 1.2 mm Ultra-Thin Industrial Endoscope

Shodensha
Type: Industrial Endoscopes, Inspection & Testing Systems
Supplier / Manufacturer: Shodensha
Model: MIVS-1205TP

Ultra-thin industrial endoscope with a 1.2 mm probe, 160,000-pixel imaging, 120° field of view, approximately 2 mm close focus, and a 6-inch touchscreen for detailed inspection inside extremely narrow spaces.

Industries & Applications:
1.2 mm EndoscopeBorescopeIndustrial EndoscopeInternal InspectionPrecision InspectionUltra-Thin EndoscopeVisual Inspection
Contact Us

1.2 mm Ultra-Thin Endoscope for Extremely Narrow Internal Inspection

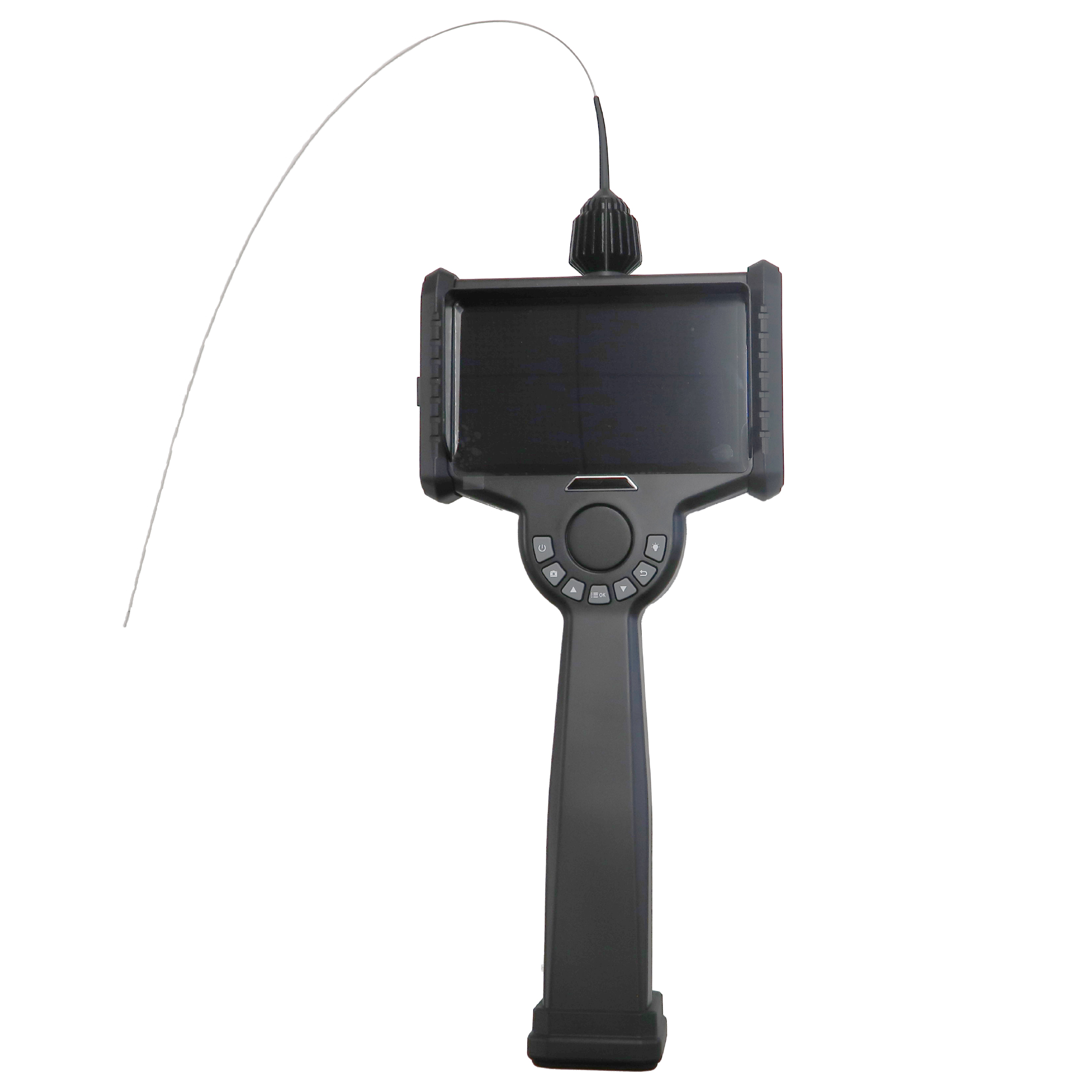

The Shodensha MIVS-1205TP is an ultra-thin industrial endoscope featuring a 1.2 mm probe for visual inspection inside extremely narrow holes, small components, precision assemblies, and other difficult-to-access internal spaces.

The 160,000-pixel camera combines a wide 120° field of view with close focusing from approximately 2 mm, supporting detailed observation where conventional industrial endoscopes may be too large to insert. Fiber-optic illumination delivers strong, natural white light for improved visibility in dark and confined areas.
1.2 mm Probe Ultra-thin insertion diameter for extremely narrow openings
160,000 Pixels Clear imaging for detailed visual inspection
120° Field of View Wide viewing angle for efficient internal inspection
Approx. 2 mm Close Focus Detailed observation at very short working distances
The MIVS-1205TP also features a detachable probe, durable spring-tube cable construction, IP67 protection for the insertion section, a 6-inch touchscreen, still-image and video recording, and HDMI output for viewing inspection images on an external display.

1.2 mm Ultra-Thin Probe

The 1.2 mm probe enables inspection inside extremely narrow holes, small precision components, and confined structures that are difficult to access with larger endoscopes.

160,000-Pixel Imaging

High image-processing performance and noise reduction provide clear images for detailed internal observation.

Fiber-Optic Illumination

Fiber-optic lighting provides strong illumination and natural white light for close-range observation in narrow and dark spaces.

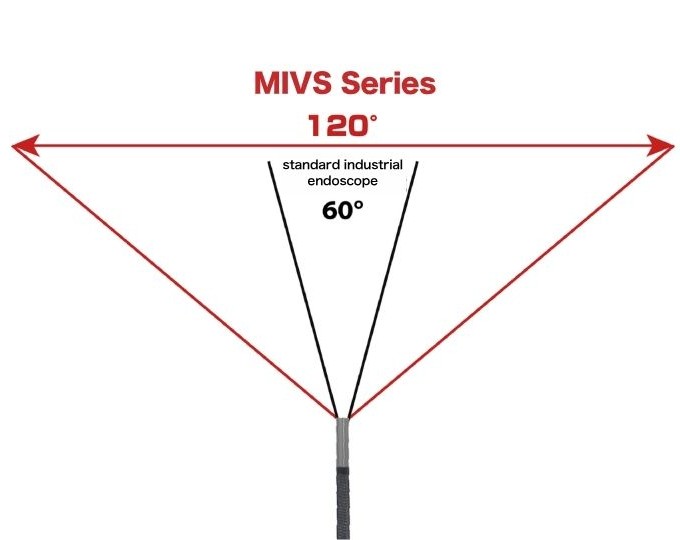

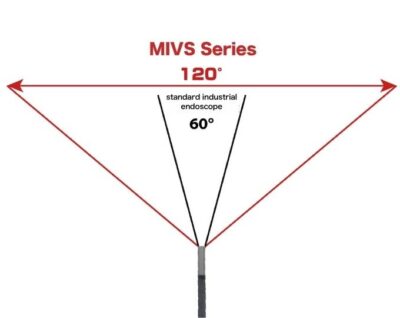

120° Wide Field of View

The 120° field of view provides broad visibility inside confined areas and supports efficient inspection.

Approx. 2 mm Close Focus

The camera can focus from approximately 2 mm, allowing clear observation when positioned very close to the inspection target.

Detachable Probe Design

The probe can be removed from the main unit, allowing probe replacement and installation of compatible probe sizes.

Durable Spring-Tube Cable

The spring-tube cable provides durability in environments with dirt and obstacles while also supporting easier cleaning.

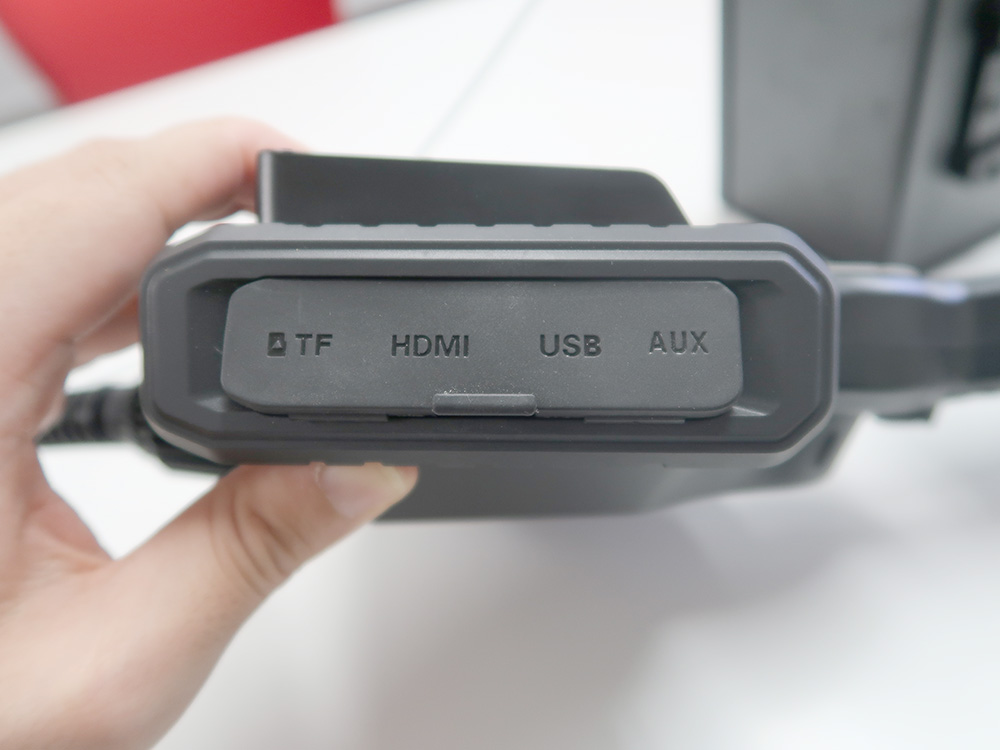

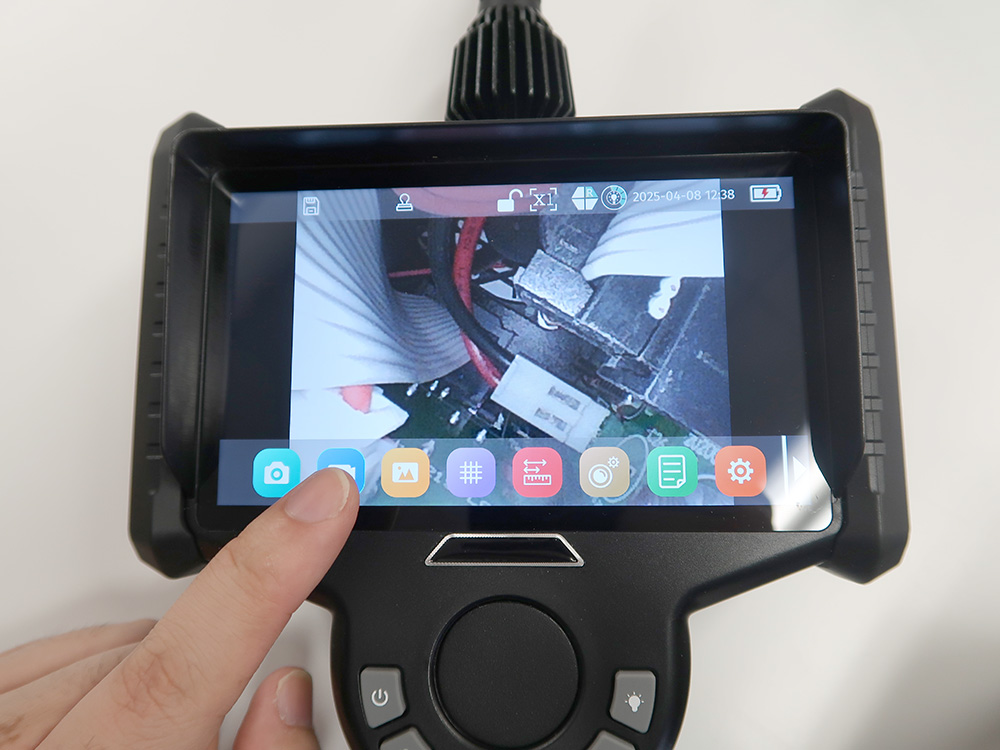

6-Inch Touchscreen & HDMI Output

The 6-inch touchscreen supports viewing, recording, and brightness adjustment, while HDMI output enables image sharing on an external display.

Small Hole Inspection Visual inspection inside small-diameter holes and openings using the 1.2 mm probe.
Narrow & Complex Spaces Internal observation in narrow or intricate areas where larger industrial endoscopes are difficult to insert.
Continuous Hole Inspection The thin, short probe design supports smooth insertion and operation when inspecting consecutive holes and confined passages.
Defect & Contamination Inspection Close visual observation of scratches, burrs, foreign material, and other small internal abnormalities.
Close-Range Internal Inspection Observation of internal surfaces from working distances as close as approximately 2 mm.
Industrial Equipment Inspection Internal visual inspection in manufacturing and equipment environments where access is restricted.
Model MIVS-1205TP
Probe Diameter 1.2 mm
Camera Resolution 160,000 pixels
Effective Probe Length 0.5 m
Monitor 6-inch touchscreen
Monitor Resolution 1024 × 768
Field of View 120°
Minimum Focusing Distance Approx. 2 mm
Dust / Water Protection IP67, insertion section
Illumination Fiber-optic illumination
Brightness Adjustment OFF + 9 levels
External Output HDMI
Storage MicroSD card up to 128 GB / 128 GB internal memory
Languages Japanese, English, Chinese, German, Spanish, French, Italian
Still Image Format JPEG, 400 × 400 or 640 × 480
Video Format MP4, 400 × 400 or 640 × 480, 30 fps
Power Supply 4 × 18650 batteries, 3.7 V / 2200 mAh or 5 V / 3.0 A AC adapter
Battery Operating Time Approx. 4 hours
Insertion Section Operating Temperature -20°C to 70°C
Main Unit Operating Temperature -10°C to 50°C
Storage Temperature -20°C to 60°C, non-condensing
Dimensions 350 × 150 × 60 mm
Weight Approx. 820 g, excluding insertion section
