Shodensha MIVS-08010TP 0.8 mm Ultra-Thin Industrial Endoscope

Shodensha
Type: Industrial Endoscopes, Inspection & Testing Systems
Supplier / Manufacturer: Shodensha
Model: MIVS-08010TP

Ultra-thin industrial endoscope with a 0.8 mm probe, 1.0 m probe length, 160,000-pixel imaging, 120° field of view, and a 6-inch touchscreen for inspection inside extremely small holes and narrow spaces.

Industries & Applications:
0.8 mm EndoscopeBorescopeIndustrial EndoscopeInternal InspectionMicro Hole InspectionUltra-Thin EndoscopeVisual Inspection
Contact Us

0.8 mm Ultra-Thin Endoscope for Extremely Small Holes and Narrow Spaces

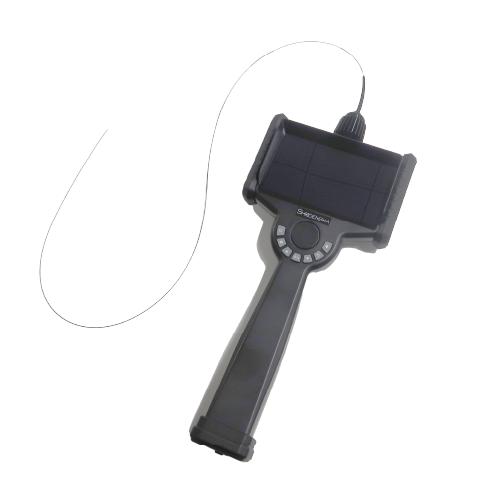

The Shodensha MIVS-08010TP is an ultra-thin industrial endoscope featuring a 0.8 mm probe for visual inspection inside extremely small holes and narrow spaces that are difficult to access with conventional industrial endoscopes.

The 1.0 m probe combines 160,000-pixel imaging with a wide 120° field of view. Fiber-optic illumination delivers strong light and natural white illumination to the probe tip, supporting clear observation inside dark and confined areas.
0.8 mm Probe Ultra-thin diameter for extremely small holes and confined spaces
1.0 m Probe Length Extended reach for internal inspection
160,000 Pixels Clear imaging with noise-reduction image processing
120° Field of View Wide viewing angle for internal observation
The MIVS-08010TP also features a detachable probe, IP67 protection for the insertion section, a 6-inch touchscreen, still-image and video recording, brightness adjustment, and HDMI output for displaying inspection images on an external monitor.

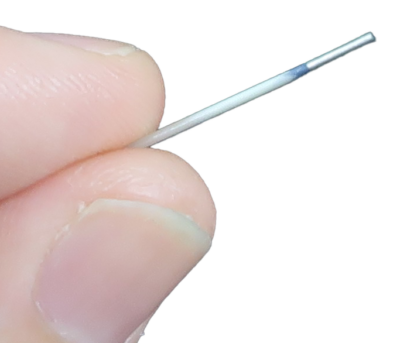

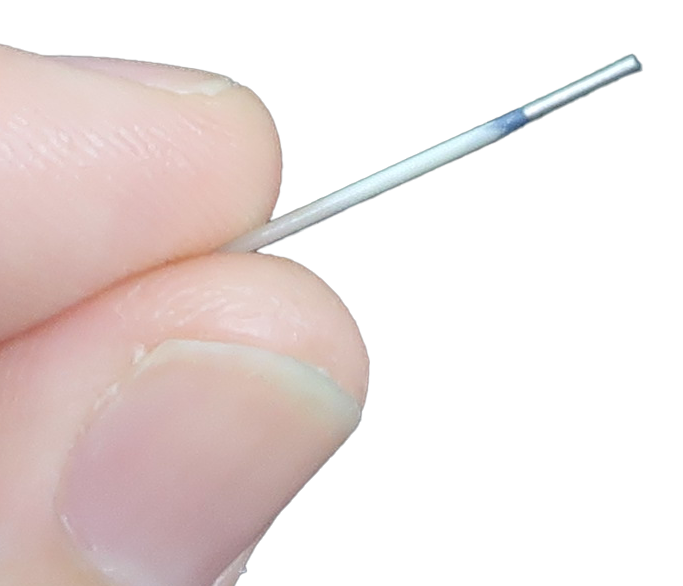

0.8 mm Ultra-Thin Probe

The 0.8 mm probe enables internal observation through extremely small holes and narrow spaces that are difficult to access with conventional industrial endoscopes.

1.0 m Probe Length

The camera probe provides an effective length of 1.0 m for reaching inspection points inside narrow and confined areas.

160,000-Pixel Imaging

High image-processing performance and noise reduction provide clear images for detailed internal observation.

Fiber-Optic Illumination

Fiber-optic lighting delivers strong illumination and natural white light to the probe tip for viewing inside dark and confined spaces.

120° Wide Field of View

The 120° field of view provides broad visibility of internal surfaces during inspection.

IP67 Insertion Section

The insertion section is rated IP67 for protection against dust and temporary water immersion.

Detachable Probe Design

The probe can be detached from the main unit, allowing compatible camera cable units to be replaced or changed.

6-Inch Touchscreen & HDMI Output

The 6-inch touchscreen supports image viewing, recording, and brightness adjustment, while HDMI output allows images to be displayed on an external monitor.

Micro Hole Inspection Internal visual inspection through openings as small as required for a 0.8 mm probe.
Narrow Space Inspection Observation inside confined areas that are difficult to access with larger industrial endoscopes.
Small Component Inspection Visual observation inside compact components and structures with restricted internal access.
Continuous Hole Inspection The ultra-thin probe supports insertion and observation through consecutive holes and narrow passages.
Defect & Foreign Material Inspection Visual checking of scratches, burrs, foreign material, and other small abnormalities inside confined areas.
Industrial Equipment Inspection Internal visual inspection of equipment and machinery where direct access is limited.
Model MIVS-08010TP
Probe Diameter 0.8 mm
Camera Resolution 160,000 pixels
Effective Probe Length 1.0 m
Monitor 6-inch touchscreen
Monitor Resolution 1024 × 768
Dust / Water Protection IP67, insertion section
Field of View 120°
Storage MicroSD card up to 128 GB / 128 GB internal memory
External Output HDMI
Languages Japanese, English, Chinese, German, Spanish, French, Italian
Illumination Fiber-optic illumination
Brightness Adjustment OFF + 9 levels
Power Supply 4 × 18650 batteries, 3.7 V / 2200 mAh or 5 V / 3.0 A AC adapter
Battery Operating Time Approx. 4 hours
Still Image Format JPEG, 400 × 400 or 640 × 480
Video Format MP4, 400 × 400 or 640 × 480, 30 fps
Insertion Section Operating Temperature -20°C to 70°C
Main Unit Operating Temperature -10°C to 50°C
Storage Temperature -20°C to 60°C, non-condensing
Dimensions 350 × 150 × 60 mm
Weight Approx. 820 g, excluding insertion section
