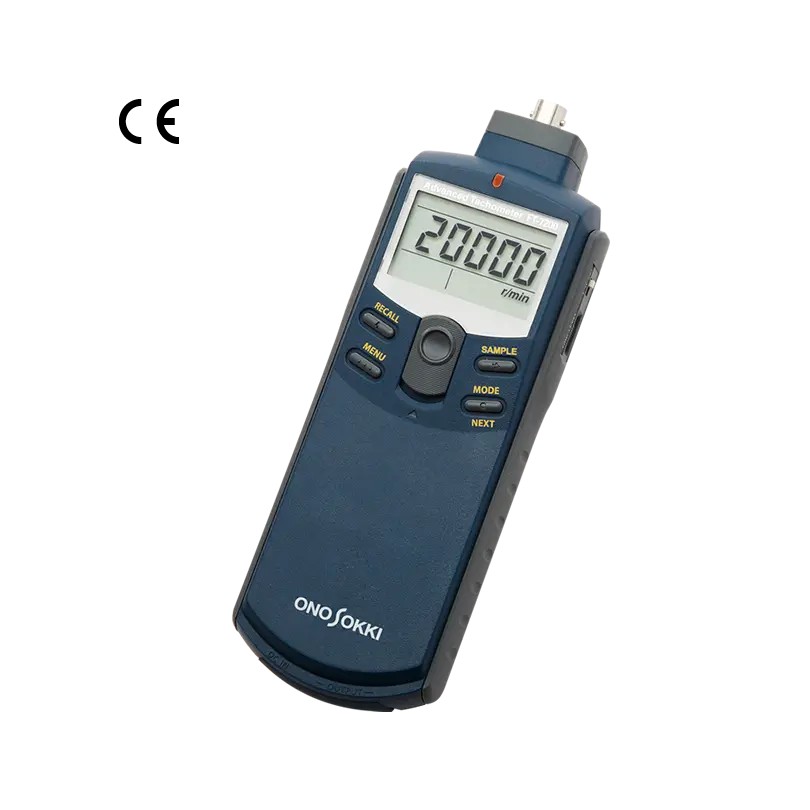

An easy-to-use, highly functional, compact and handy high-performance digital tachometer
U.S.-based sales, and delivery available. FT-7200 is a handheld FFT tachometer enabling high-accuracy, non-contact RPM measurement from sound, vibration, or magnetic flux. Ideal for motors, engines, fans, and compressors with inaccessible shafts. ・Non-contact tachometer for motor speed measurement ・FFT-based RPM analyzer for vibration and sound signals ・Handheld digital tachometer for engines and compressors ・Rotation speed measurement without reflective tape ・Advanced tachometer for acceleration and deceleration analysis• FFT-based frequency analysis for complex waveform RPM measurement • Non-contact rotation measurement using sound, vibration, or magnetic flux • High follow-up performance during rapid acceleration/deceleration • Multiple measurement algorithms for stable and transient rotation • Compatible with microphones, accelerometers, and engine sensors
・What is the FT-7200 used for? → Measuring rotation speed of motors and engines without direct shaft access. ・Can it measure RPM without contact? → Yes, using sound, vibration, or magnetic flux signals. ・Is it suitable for accelerating motors? → Yes, advanced FFT algorithms follow rapid speed changes accurately. Applications : EV motors, industrial motors, compressors, fans, engines, home appliances Industries : Automotive, EV/HEV, manufacturing, maintenance, R&D, quality inspection
・What is the FT-7200 used for? → Measuring rotation speed of motors and engines without direct shaft access. ・Can it measure RPM without contact? → Yes, using sound, vibration, or magnetic flux signals. ・Is it suitable for accelerating motors? → Yes, advanced FFT algorithms follow rapid speed changes accurately. Applications : EV motors, industrial motors, compressors, fans, engines, home appliances Industries : Automotive, EV/HEV, manufacturing, maintenance, R&D, quality inspection
5 kinds of algorithms in 2 measurement modes can be selected depending on measurement requirement. C, D and E modes follow up changes in accelerated/decelerated rotation speed. Even when the maximum peak frequency is lost, the peak value is predicted and the rotation speed can be calculated in the C mode. The D mode can follow up changes of the maximum peak and appropriate rotation speed can be selected from up to 8 frequency peaks in the E mode.
| Measurement mode | MODE | Measurement algorithm |
| Steady rotation measurement (Constant)(This mode is effective when rotating speed of a measurement object is constant.) | A | Maximum power spectrum peak detection method |
| B | Peak-interval mode method | |
Acceleration/deceleration rotation measurement (Active) (This mode is effective when rotating speed of a measurement object changes.) | C | Maximum power spectrum peak detection method (Multi-order peak follow-up method) |
| D | Maximum power spectrum peak detection method (Maximum power spectrum peak follow-up method) | |
| E | Maximum power spectrum peak detection method (Specific power spectrum peak follow-up method) |
| Feature | Details |
|---|---|
| Computing System | FFT Calculation |
| Measurement RPM Range | 250 Hz Range: 3.75 Hz to 250 Hz, 500 Hz Range: 7.5 Hz to 500 Hz, 2 kHz Range: 30 Hz to 2 kHz (18,000 to 99,999 r/min) |
| RPM Resolution | Depends on Frequency Range and Number of Pulses Set |
| Measurement Accuracy | +/- 2 x RPM Resolution +/- 1 |
| Measurement Time | 250 ms |
| Display | 7 Segment LED, 5 Digits, 10.2 mm Character Height |
| Pulse Count Set Range | 0.5 to 200 in 0.5 Steps |
| Rotational Direction Determination Function | Not Available |
| Exponential Averaging | Select: Off, 2, 4, 8, or 16 Times |
| Analog Output | 0 to 1 V / 0 to F.S. |
| Comparator Output | Not Available |
| Interface | None |
| Dimensions | 189.5 mm (L) x 66 mm (W) x 47.5 mm (D) |
| Weight | Approximately 230 g |
| Power / Battery Life | Four type AAA batteries or AC Adapter |
| Operating Temperature | 32° to 104° F / 0° to 40° C |
| Description | Advanced Handheld Tachometer |
| Applicable Detectors | OM-1500, OM-1200, IP-292, IP-296, IP-3000A, IP-3100, FT-0801, VP-202, VP-1220, NP-2000 series NP-3000 series, MI-1432(microphone)+ MI-3111(preamplifier), Magnetic flux leakage sensor, LED reflected-light optical fiber sensor. |
| Pulse Output | Hi: 4.5 V or more, Lo: 0.5 V or less |
