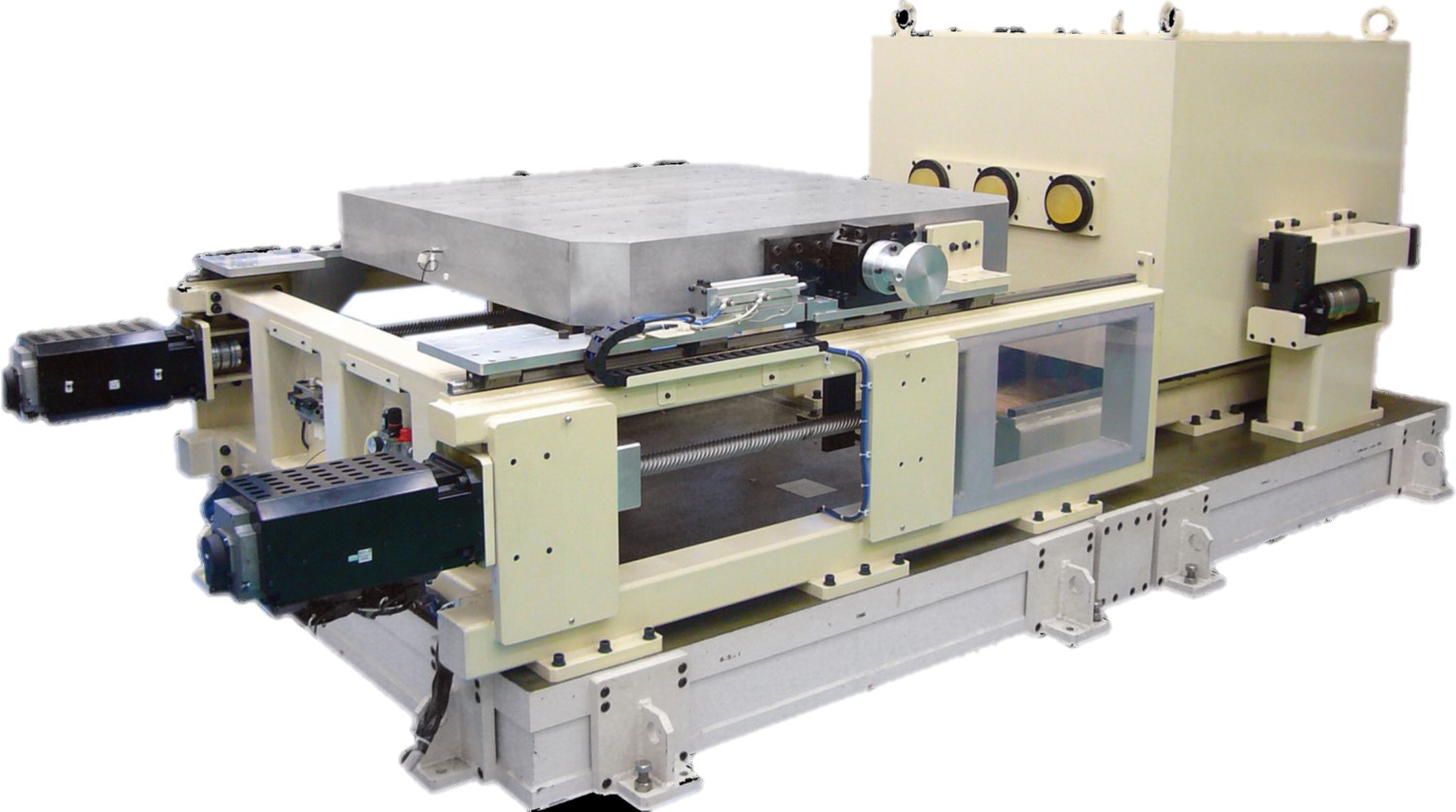

KOKUSAI HST Series Fully Electric Servomotor Drive Shock Tester

Electric Servo-Driven Mechanical Shock Testing for EV Batteries

The KOKUSAI HST Series uses fully electric servomotor actuation for controlled mechanical shock testing of battery cells, modules and other automotive components.

KOKUSAI applies servomotor positioning and dynamic motion-control technology to shock test systems designed to reproduce specified impact events. The family includes different table sizes and rated payload capacities to accommodate small components through large battery assemblies.

150 kgHST150/60 rated maximum payload
500 kgHST500/150 rated maximum payload
1,000 kgHST1000/1800 rated maximum payload
150 GPublished peak acceleration example at specified payload

Select the HST150/60 impact configuration, HST500/150 impact configuration, or HST1000/1800 impact bulk-head configuration based on specimen mass, fixture dimensions and required shock pulse. The published high-acceleration examples are specified at loads lower than each machine’s maximum payload.

The manufacturer references ECE R100 Part 2, UN 38.3 and GB/T 31467.3 as intended test applications. This does not independently certify any particular fixture, waveform or laboratory test plan; verify the required protocol and final configuration.

Fully Electric Servo Actuation

Servo-controlled motion and positioning help reproduce mechanical shock profiles without relying on a conventional hydraulic drive.

Three Payload Classes

Choose among 150 kg, 500 kg and 1,000 kg maximum-payload configurations.

Platform Size Options

Select 600 × 600 mm, 1,500 × 1,500 mm or 1,800 × 1,800 mm test tables.

Defined Shock Pulse Profiles

Specify acceleration and duration at the actual test payload; published 150 G and 50 G values are conditional examples.

Efficient Test Sequencing

Servo drive technology supports repeatable positioning and test reset for structured test programs.

Battery-Test Oriented Design

Target testing referenced by UN 38.3, ECE R100 Part 2 and GB/T 31467.3 with procedure-specific confirmation.

EV Battery Module Shock Tests

Apply defined mechanical shock pulses to battery assemblies with suitable mass and fixtures.

Battery Pack Qualification

Develop impact-test procedures for large vehicle battery systems within the selected platform limits.

Automotive Component Durability

Evaluate mechanical response of electrical and mechanical assemblies to shock.

Transportation Simulation

Reproduce representative impact events specified by an approved transport test plan.

UN 38.3 Test Development

Configure shock-test methods to support applicable transportation test requirements.

Shock Pulse Research

Compare component responses to changes in peak acceleration, duration and loading.

SpecificationDetails
ActuationFully electric servomotor drive
ModelsHST150/60 (impact); HST500/150 (impact); HST1000/1800 (impact bulk-head)
HST150/60 table600 × 600 mm
HST150/60 maximum payload150 kg
HST150/60 maximum shock duration15 ms (source wording: Max.)
HST150/60 example: high acceleration150 G peak / 6 ms at 50 kg payload
HST150/60 example: low acceleration50 G peak / 11 ms at 50 kg payload
HST500/150 table1,500 × 1,500 mm
HST500/150 maximum payload500 kg
HST500/150 maximum shock duration25 ms (source wording: Max.)
HST500/150 shock examples150 G / 6 ms or 50 G / 11 ms at 150 kg payload
HST1000/1800 table1,800 × 1,800 mm
HST1000/1800 maximum payload1,000 kg
HST1000/1800 maximum shock duration20 ms (source wording: Max.)
HST1000/1800 shock examples150 G / 6 ms or 50 G / 11 ms at 350 kg payload
Referenced test standardsECE R100 Part 2, UN 38.3, GB/T 31467.3 (application references; no blanket certification implied)

Acceleration/duration examples apply only at the stated payload; they are not guaranteed at the maximum rated payload. Confirm waveform, shock direction, fixture center of gravity, safety enclosure and standard-specific profile with KOKUSAI.
