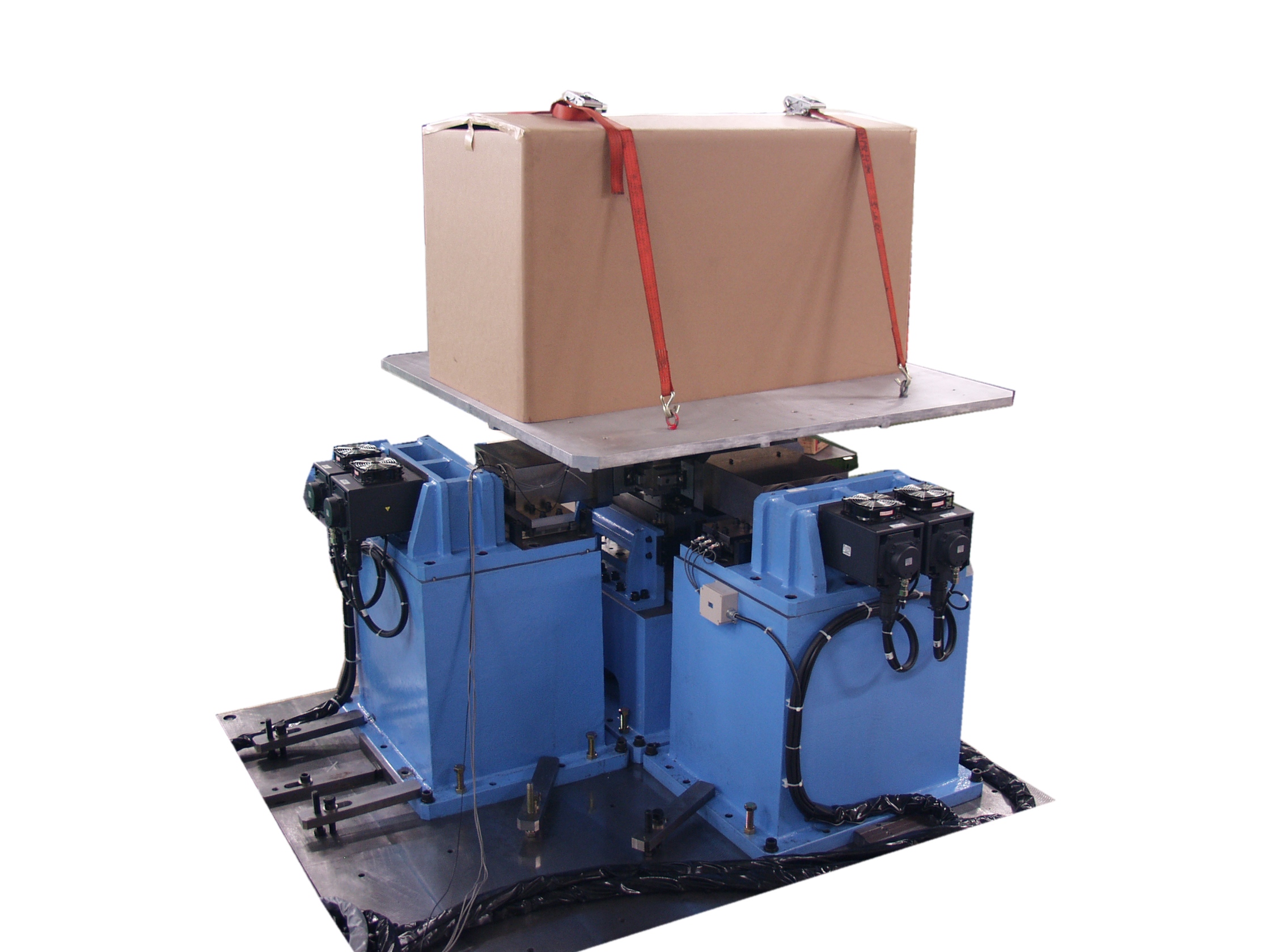

3-AXIS SIMULTANEOUS VIBRATION TESTER
This 3-axis system can test all vectors simultaneously, making it more efficient over conventional single-axis solutions. This system provides the ultimate convenience of running your tests without the need to change the orientations in between each test. The whole system itself is just the machine, one control unit, and a personal computer for setup and analysis. With the precise position control and its state-of-the-art servomotor technology, a wide spectrum of wave patterns such as sine, triangular, frequency sweeps, etc. can be simulated. There is little to no maintenance for this tester since it has an automatic greasing system to ensure a stress-free operation.- High Accuracy - Precise simulation of the actual environment
- Energy Efficient - 90% energy reduction
- Low Maintenance - No oil changes or valve replacements necessary
- Space Saving - 50% less floor space occupancy
- To perform stress simulation to optimize packaging for the packaging industries
- For battery testing to increase travel distance, which is a major challenge for the EV/PHV sector
| Models | 3DSD-08 | 3DSD-10 | 3DSD-15 | 3DSD-20 |
| Frequency Range | 5 - 200 Hz | 5 - 200 Hz | 5 - 200 Hz | 5 - 200 Hz |
| Acceleration (max)* | 3.6 G | 3.6 G | 3.6 G | 3.6 G |
| Velocity (max) | 0.7 m/s | 0.7 m/s | 0.7 m/s | 0.7 m/s |
| Displacement (max)** | 50 mm p-p | 50 mm p-p | 50 mm p-p | 50 mm p-p |
| Payload | 100 Kg | 300 Kg | 500 Kg | 1,000 Kg |
| Table Dimensions | 800mm x 800mm | 1,000mm x 1,000mm | 1,500mm x 1,500mm | 2,000mm x 2,000mm |
