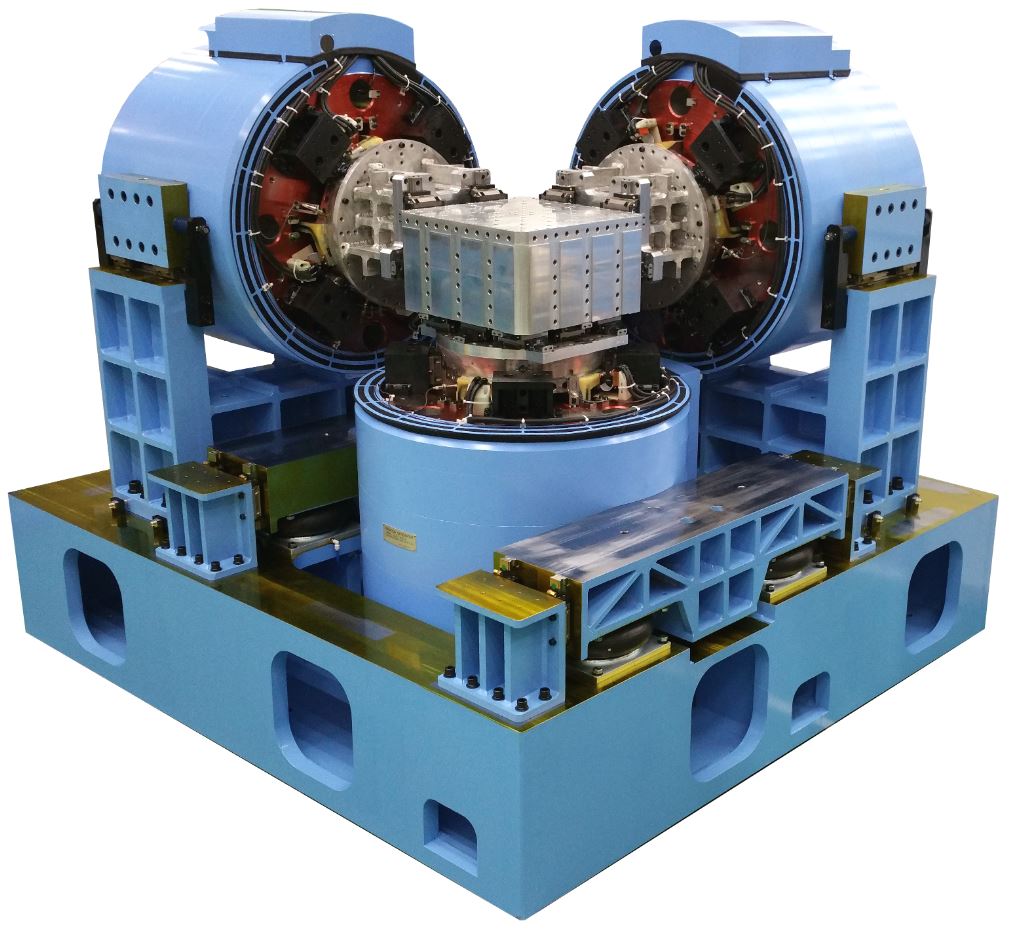

3-Axis Simultaneous Vibration Test System
This Electro-Dynamic Shaker was designed with the next generation of automobiles in mind. Creating an equipment that mimics real-life simulations and that is highly reliable were Kokusai's top priority throughout the designing process. The top five key factors for this series include: I. 3-Axis simultaneous testing II. Table uniformity III. Low crosstalk IV. PSD random & Real-wave pattern V. 2000HZ- Table Uniformity -This feature increases precision and it is beneficial for testing parts like PCBs with a low rigidity and a big surface.
- Low Crosstalk - This feature reduces development costs incurred from over-testing. High crosstalk systems are prone to have less control and more abrupt interruptions during operation.
| Model No. | VTS-20MO-3 | VTS-30MO-3 | VTS-40MO-3 | VTS-50MO-3 | VTS-60MO-3 |
| Exciting Force (Sine) | 20 [kN] | 30 [kN] | 40 [kN] | 50 [kN] | 60 [kN] |
| Maximum Acceleration | 10G | 15G | 20G | 24G | 28G |
| Frequency Range | 5 – 2000 Hz | ||||
| Stroke | ±25mm (50mm p=p) | ||||
| Table Dimensions | 500mm x 500mm | ||||
