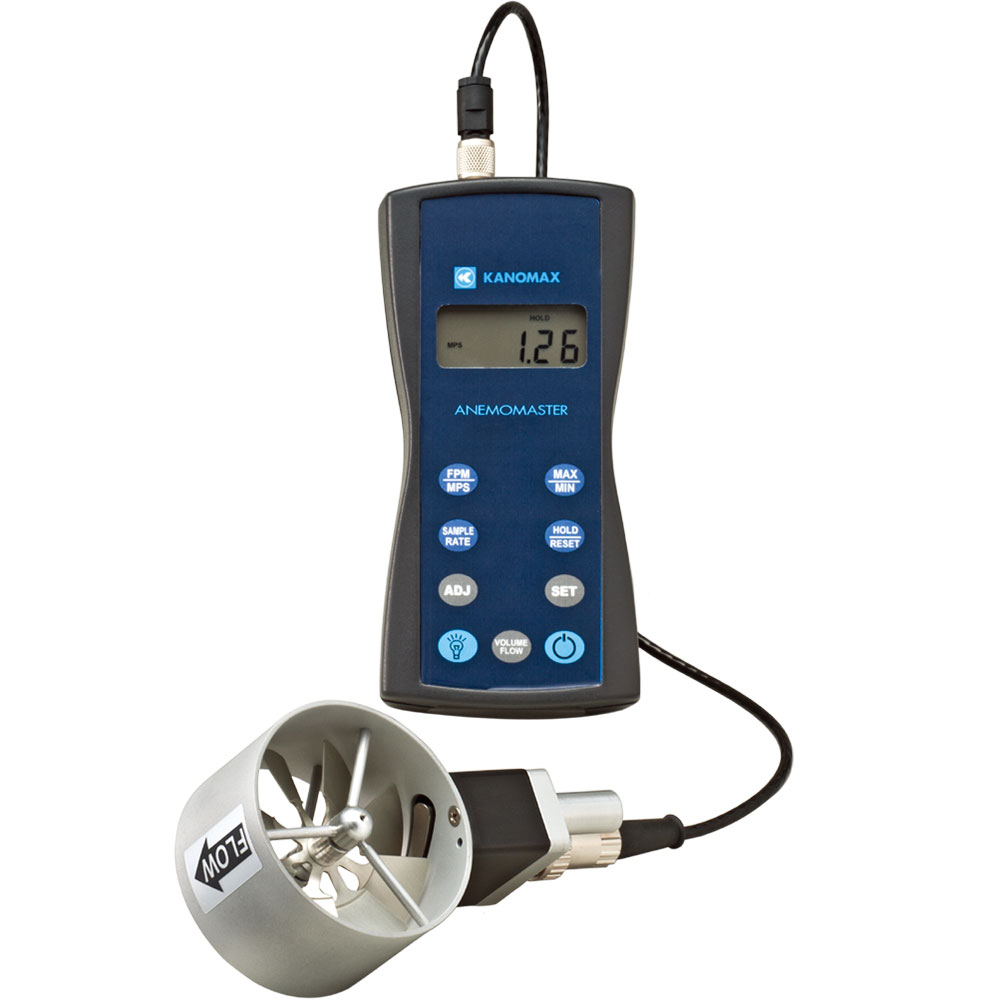

KANOMAX 6820 Series Rotating Vane Anemometer

KANOMAX
Type: Anemometer
Supplier / Manufacturer: KANOMAX
Model: 6820 Series

Industries & Applications:
AutomotiveAerospace & DefenseResearch & LaboratoryQuality ControlMaintenanceField Measurement
Contact Us

New models, same high accuracy airflow velocity readings

U.S.-based sales, and delivery available. The Anemomaster™ Rotating Vane 6820 Series of anemometers offers a range of highly accurate airflow measuring devices. Models include industrial grade enclosure and probe. They automatically calculate volume flow in CFM (cubic feet per minute) or CMH (cubic meters per hour). When measuring ducts dimensions are stored in memory on turn-off and do not need to be re-entered. These vane anemometers can store up to 10 different commonly-used duct sizes for quick, convenient readings in the field. Models also available for airflow/temperature and airflow/temperature/humidity.
  • High accuracy: +/- 1.0 % of reading
  • 40 FPM of air velocity sensitivity
  • Temp. Measurements from -22 to 212F
  • Three output options available:
    • Analog voltage
    • USB
    • RS232
  • Rugged metal probe and vane
  • This is a high quality instrument which provides accurate air velocity and volume flow measurements in the harshest environments
  • The user can easily enter the size of the duct opening and the 6822 automatically calculates the volume flow rate from the duct
  • The duct size is automatically stored in memory on turn-off and up to 10 unique duct sizes can be stored and recalled for frequent use
  • Includes NIST-traceable calibration certificate*
*NIST TRACEABLE CALIBRATIONS are performed at our facility in ANDOVER, NJ
  • HVAC Ventilation and Balancing
  • Laboratory Control
  • IAQ Investigation
  • Industrial Hygiene Quality Control
Air Velocity Range 1″ Probe: 300 to 6890 FPM (1.5 to 35 m/s)
2.75″ Probe: 40 to 3800 FPM (0.2 to 20 m/s)
Accuracy 1″Probe: ±0.5% of Full-scale + 0.75% of READING ±1 digit
2.75″Probe :±1.0% of READING ±1 digit
Resolution 1 FPM or 0.01 m/s
Temperature (6813 & 6815) Range APT (VANE TEMP): -4 to 212˚F (-20 to 100˚C)
HTP202 TEMP Probe: -4 to 176˚F (-20 to 80˚C)
Accuracy ± (0.3°C + 0.2% of READING in °C)
Resolution 0.1 ˚F or 0.1℃
Humidity (6815) Range 5.0 to 95.0 %RH
Accuracy ± 2.0 %RH
Resolution 0.1 %RH
