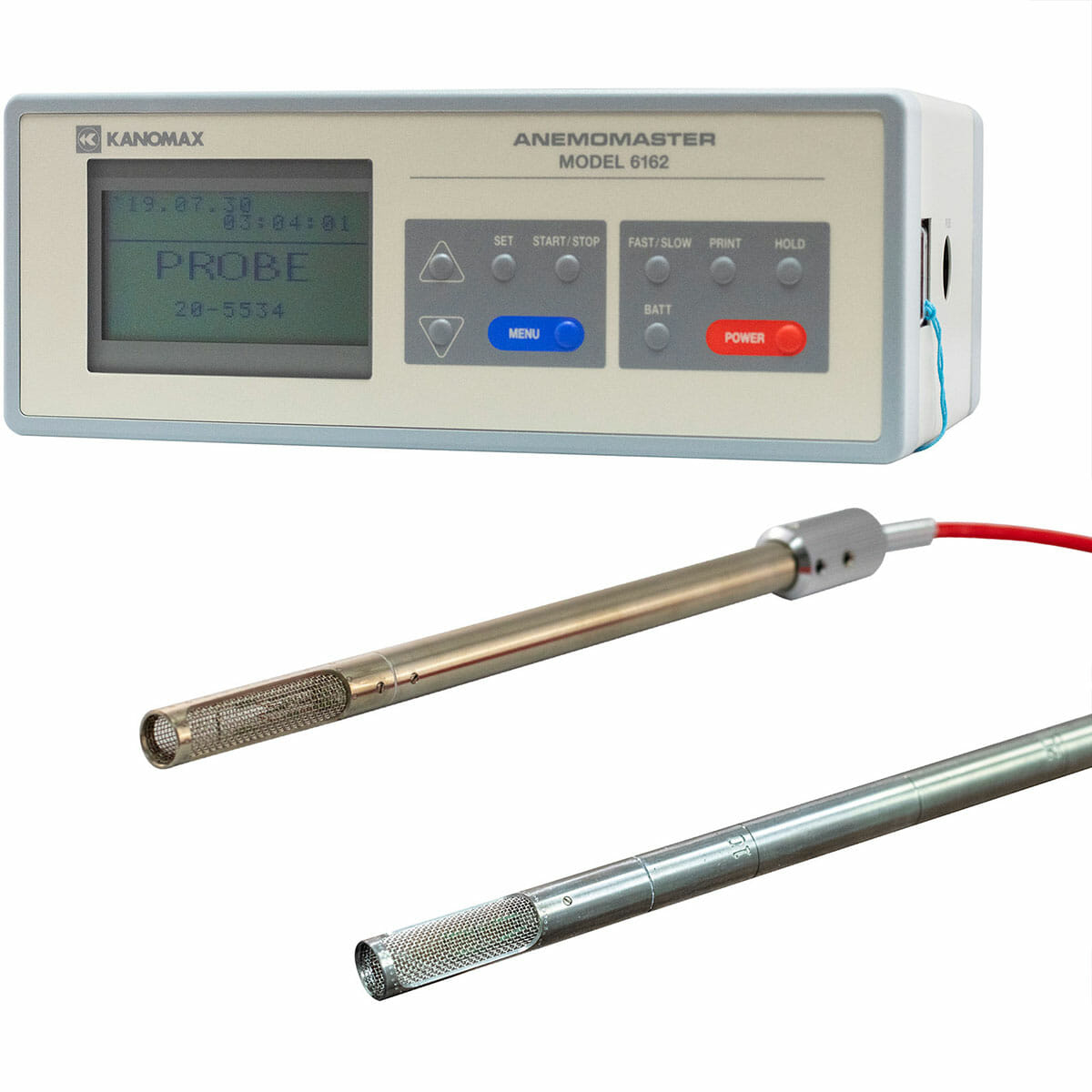

KANOMAX 6162 Series High Temperature Anemometer

KANOMAX
Type: Anemometer
Supplier / Manufacturer: KANOMAX
Model: 6162 Series

Industries & Applications:
R&DProduction TestingQuality Control
Contact Us

Test airflow in high temperature conditions up to 932°F

U.S.-based sales, and delivery available. The Kanomax 6162 Series High Temperature Anemometer is engineered for precise measurements in extreme heat. Ideal for applications such as drying process control, maintaining airflow in forming processes, exhaust air management, and device performance testing. It features interchangeable probes, optional accessories, and complies with ISO 13579 and NFPA 86 standards, ensuring efficiency in various industries. *Excludes sales to WA, OR, CA, NV, MT, ID, WY, UT, and MI.
  • Simultaneous measurement of air velocity and temperature up to 500℃ (932°F)
  • Two probes selections, Middle Temperature up to 200℃ (392°F) and High Temperature up to 500℃ (932°F)
  • Temperature compensation circuitry ensures accurate velocity measurements in rapidly fluctuating air stream temperatures
  • RS232C interface, analog output and remote control terminal equipped
  • Store up to 999 measurements
  • Simultaneous display of air velocity and temperature
  • Secondary temperature compensation circuit provides quick response time
  • Standard with a NIST traceable calibration certificate*
  • Graphic display allows easy review of historical data
  • 6162 allows you to easily interchange smart probes
  • Drying process control
  • Forming process control
  • Exhaust air measurement
  • Device performance testing
  • ISO 13579 energy efficiency testing
  • NFPA 86 testing for industrial ovens
Main Unit Specifications
General Specifications
Analog Output DC 0 to 1V
Interface RS-232C/printer
Input Remote start/stop function
Datalogging Store up to 999 measurements
Power Supply 6 × 1.5 V C cells / AC adapter (100 to 240 V)
Operating Environment
Main Unit 41 – 104 ºF (5 – 40 ºC)
Storage Environment 14 to 122°F (-10 to 50°C) with no condensation
Dimensions
Main Unit 8.7″ x 5.9″ x 3.3″ (220 x 150 x 85mm)
Weight 3.9 lbs (1.8kg)
What’s Included Meter, operation manual, AC adapter, analog output cable (2pc), shoulder strap, C-batteries (6 qty)
Warranty 1 year
Probe Specifications
Model 0203 0204
Temperature Range
Air Velocity Measuring Range 32 to 212°F 40 to 9840 fpm (0.2 to 50.0 m/s)
212 to 392°F 80 to 9840 fpm (0.4 to 50.0 m/s)
392 to 572°F n/a 138 to 9840 fpm (0.7 to 50.0 m/s)
572 to 752°F n/a 197 to 9840 fpm (1.0 to 50.0 m/s)
Accuracy +/- 3% of reading
Temperature Measuring Range 32 to 392°F (0 to 200°C) 32 to 932°F (0 to 500°C)
Accuracy +/- 1% of reading
General Specifications
Dimensions / Weight Ø 11 x 200mm (Ø 0.4″ x 7.8″), 0.4 lbs (200 g) Ø 14 x 1000mm (Ø 0.6″ x 39.4″)1.1 lbs (500 g)
Probe Cables Teflon Coating
Heat-resistance 392°F (200°C)
Extension Cable Vinyl Coating
Heat-resistance 176°F (80°C)
