Handheld particle counters for accurate measuring and monitoring

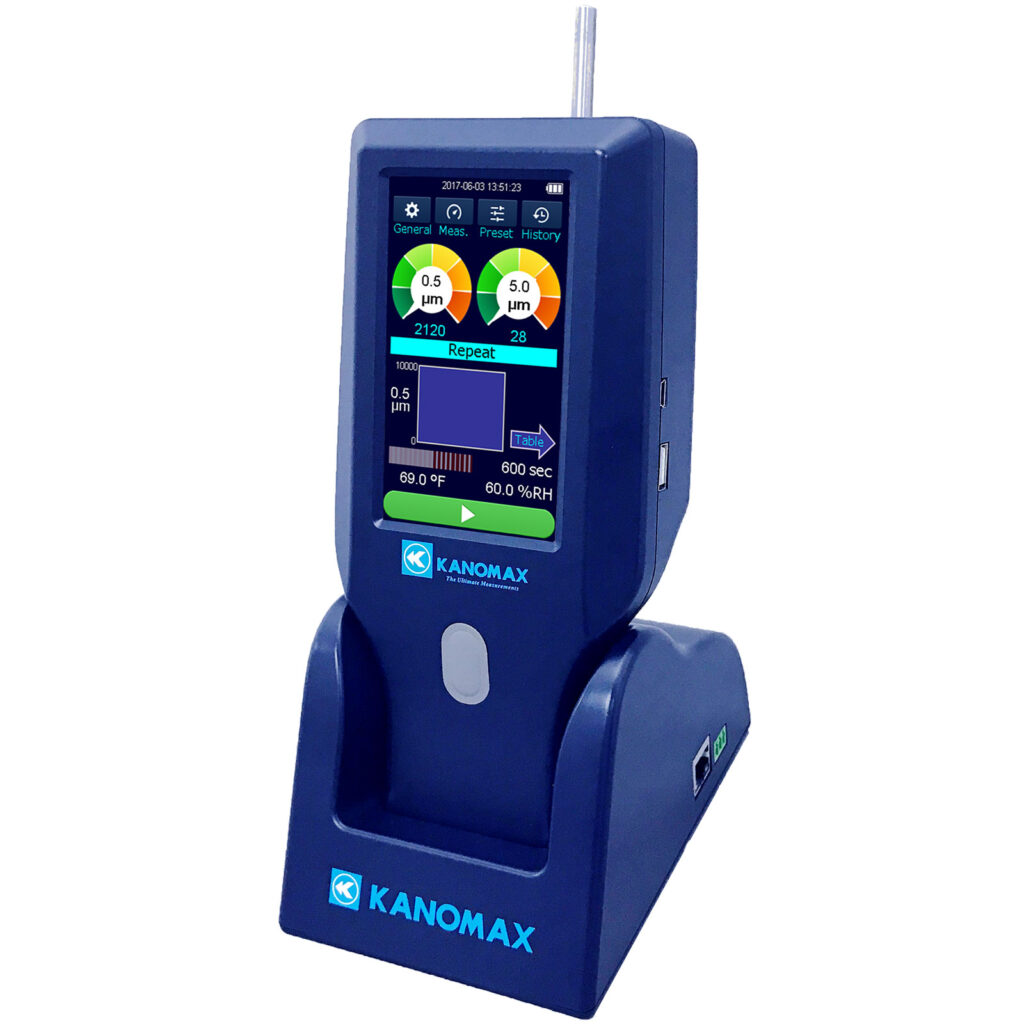

U.S.-based sales, and delivery available. The Kanomax Handheld Particle Counters (Models 3888 & 3889) are advanced portable instruments designed for cleanroom monitoring, operating room verification, filter integrity testing, indoor air quality (IAQ) investigation, and data center contamination control. Engineered for precision and reliability, these handheld particle counters deliver high-accuracy airborne particle measurement for critical environments where contamination control is essential. Combining cutting-edge optical technology with practical usability, the 3888 and 3889 models provide consistent, high-performance particle counting across pharmaceutical, semiconductor, food & beverage, and medical industries.The 3888 and 3889 models maintain the proven accuracy of previous generations while introducing enhanced usability and faster data collection.
Key features include:
Large 4.3-inch full-color LCD touchscreen for intuitive operation
Real-time graphical data display for rapid interpretation
Storage of up to 10,000 data logs
Onboard USB port for direct data download to a USB drive
Seamless transfer to Windows 10 applications
Compliance with ISO 21501-4 standards
Fully RoHS compliant
With fast measurement capability and simplified data management, Kanomax handheld particle counters are ideal for regulatory inspections, validation processes, and routine environmental monitoring in controlled environments.
| Main Unit Specifications | |||
|---|---|---|---|
| Product | Handheld Particle Counter | ||
| Model | 3888 | 3889 | |
| Particle Measurement | Sizes | 3 channels (0.3, 0.5, 5.0μm) | 6 channels (0.3, 0.5, 1.0, 3.0, 5.0, 10.0μm) |
| Flow Rate | 0.1CFM (2.83L/min) Accuracy: ±5% (Compliant with JIS B9921 and ISO21501-4) | ||
| Maximum Measurable Concentration | 10% for 2,000,000 particles/CF (compliant with JIS B9921 and ISO21501-4) | ||
| Counting Efficiency | 50±20% (for PSL particles near the minimum measurable size) 100±10% (for PSL particles of 1.5 to 2 times as large as the minimum measurable size) (Compliant with JIS B9921 and ISO21501-4) | ||
| False Count | ≦1 particle/5 minutes (Compliant with JIS B9921 and ISO21501-4） | ||
| Size Resolution | ≦15% (for PSL particles near 0.3μm) (Compliant with JIS B9921 and ISO21501-4) | ||
| Display | 4.3 inch color LCD, Resistive touch panel | ||
| Communication | Standard | USB (Host: for printer and USB flash memory, Device: for PC) | |
| Stand (option) | RS485, Ethernet, and WiFi connection points in the base/stand | ||
| Recording Media | Media | Internal memory | |
| Number and Format | Up to 10,000 records in CSV format | ||
| Language | English, Japanese, Chinese, and Spanish | ||
| Power | Internal Supply | Li-ion rechargeable battery (Replaceable) | |
| External Supply | AC adapter - Input 100 to 240 V | ||
| Continuous Operation Time | 5 hours (Single measurement) | ||
| Operating Environment | Main Body | From 10 to 40 ℃, from 0 to 85%RH (With no condensation) | |
| Probe | From 0 to 50 ℃, from 2 to 98%RH (With no condensation) | ||
| Dimension | W213 X H100 X D55 mm | ||
| Weight | 650g | ||
| Hydrothermal Measurement (Available as an option for the 6- channel portable particle counter) | Measurement Range | (Temperature) From 0 to 50℃ (Humidity) From 2.0 to 98.0％RH | |
| Display Resolution | (Temperature) 0.1℃ (Humidity) 0.1％ | ||
| Humidity Accuracy | ±3.0% (30 to 85%RH), ±5% (other range of humidity) | ||
| Temperature Accuracy | ±0.5℃ | ||
| Response Time | Approximately 60 seconds or less (90％ response) | ||
