KANOMAX 6501 Series Climomaster Anemometer

KANOMAX
Type: Anemometer
Supplier / Manufacturer: KANOMAX
Model: 6501 Series

Contact Us

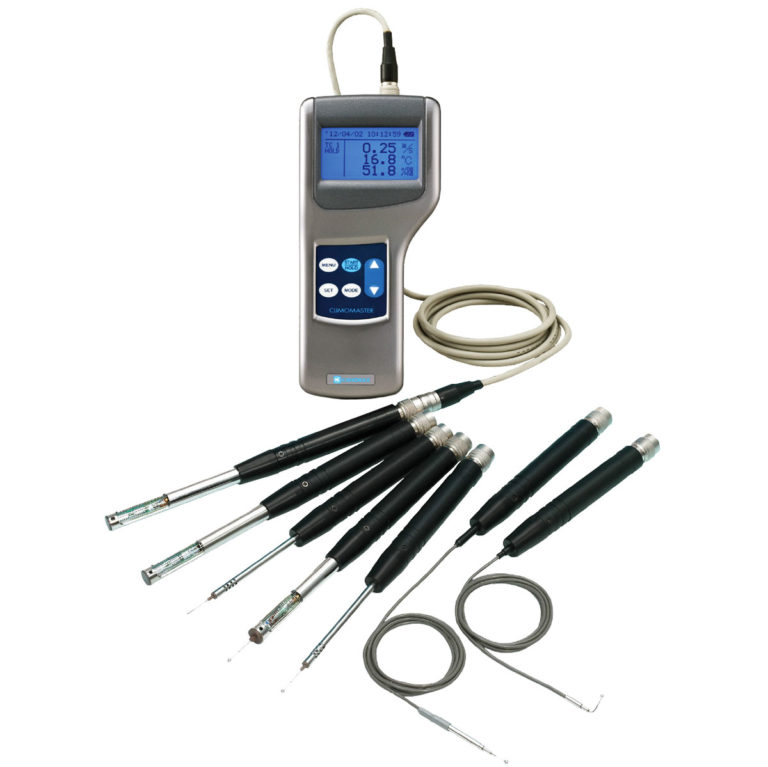

The most accurate handheld hot-wire anemometer of its kind

U.S.-based sales, and delivery available. The Climomaster anemometer is a research grade handheld hot-wire anemometer that promises level 2% m.v. accuracy, making it the most accurate hot-wire airflow meter in the world. It offers a ton of flexibility and options including 8 different probes types. These probes are all interchangeable and can be used with a single main unit without any additional calibration.

Precision Engineered for Unmatched Accuracy

The Kanomax Climomaster 6501 Series stands as a testament to precision engineering, offering an unparalleled 2% m.v. accuracy level. This exceptional accuracy earmarks it as the world’s most precise hot-wire airflow meter, ideal for research-grade applications.

Versatile and Interchangeable Probe Options

This anemometer boasts remarkable flexibility with a suite of eight different probe types, each meticulously designed for specific environments. Whether it’s measuring temperature, humidity, turbulent or high-velocity airflow, or in confined spaces like circuit board cooling profiles, these probes are fully interchangeable with a single main unit, requiring no additional calibration, thus ensuring seamless adaptability.

Robust Data Management

With a substantial storage capacity for 20,000 records and advanced data logging capabilities, the Climomaster 6501 ensures detailed and extensive data collection. For enhanced functionality, optional features like a pressure sensor and analog output are available upon request.

Designed for Various Applications

The Climomaster 6501 is the go-to instrument for a range of critical applications. Its diverse utility spans HVAC Testing, Indoor Air Quality (IAQ) Investigations, Critical Environment Certification, HEPA Filter Performance Testing, Turbulent Air Testing, and Manufacturing Process Controls.

Comprehensive Accessory Range

To bolster its performance, the Climomaster 6501 Series comes with an array of additional accessories. These include software for data analysis, extension rods for hard-to-reach areas, a hands-free case for convenience, and specialized cable lengths to suit varied requirements.

Automatic Barometric Pressure Compensation

A standout feature of the Climomaster 6501 is its automatic barometric pressure compensation. This ensures that the device maintains its high accuracy even in extreme altitudes, making it a reliable tool in diverse environmental conditions.

Climomaster Main Unit Specifications

Main Unit Specifications
Differential Pressure
Range-5 to 5 kPa
Resolution0.01 kPa
Accuracy±3% of READING or ±0.01 kPa whichever is greater
General Specifications
Analog OutputDC 0 to 1 V
InterfaceUSB / Printer
DataloggingStores up to 20000 measurement data
Power Supply6 × AA Batteries or AC Adapter (AC 100 to 240 V , 50/60 Hz)
Weight0.9 lbs (400 g)
Operating Environment41 to 104°F (5 to 40°C) with no condensation
Storage Environment14 to 122°F (-10 to 50°C) with no condensation
StandardsCE-mark
Warranty2 year
What’s IncludedMeter, Operation Manual, Carrying Case, USB Cable, AA Batteries, 2m Probe Cable
Unit Model6501-0E6501-CE
Differential PressureO
Analog OutputO
USB InterfaceOO
Printer InterfaceOO

Climomaster Probe Specifications

Measurement Specifications
Air Velocity
Range2 to 9840 FPM (0.01 to 50 m/s)
Resolution1 FPM (0.01 m/s)
Accuracy+/- 2% of READING or +/- 0.015 m/s (+/- 3 FPM) whichever is greater
Temperature
Range-4 to 158°F (-20 to 70°C)
Resolution1°F (0.1°C)
Accuracy+/- 1°F (+/- 0.5 °C)
Relative Humidity
Range2.0 to 98.0 %RH
Resolution0.1%
Accuracy±2.0% (at range of 2 to 80%) ±3.0% (at range of 80 to 98%)
General Specifications
Operating Environment-4 to 158°F (-20 to 70°C) with no condensation
Storage Environment14 to 122°F (-10 to 50°C) with no condensation
StandardsCE-mark
Warranty2 year
Standard AccessoriesProbe, NIST Certificate

Probe Model6531-2G6541-2G6561-2G6542-2G6533-2G6543-2G6551-2G6552-2G
Air Velocity Range (FPM)2 to 60002 to 60002 to 98402 to 60002 to 10002 to 10002 to 60002 to 6000
Airflow DirectionUniUniUniOmniOmniOmniOmniOmni
Probe TypeRodRodRodNeedleSphericalSphericalMiniatureMiniature
Air VelocityOOOOOOOO
TemperatureOOOOOO
Relative HumidityOO
