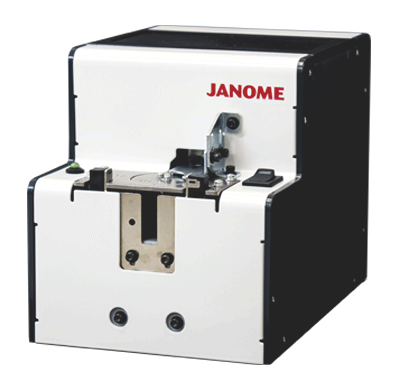

Automatic Screw Presenter
The Automatic Screw Presenter is a versatile solution for both manual and robot-mounted screwdriver applications. It supports a wide range of screw sizes (M1.0 to M5.0) and types, including ferrous and non-ferrous screws. The device also offers an external output signal for screw presence detection and is designed to be compact for space-saving installation. Custom configurations and mounting plates are available to meet specific requirements.• Manual and Robot Types Available Janome offers specialized models tailored for both handheld and robot-mounted screwdrivers, accommodating screw sizes from M1.0 to M5.0.
Robot Model Manual Model • Easy Changeover for Greater Versatility Switching to different screw sizes is simple—just replace the rail.
• Dependable Delivery Employs a horizontal method for smooth and steady screw presentation.
• Overload Protection Function Automatically corrects when too many screws are in the scooping chamber by reversing the motor briefly. If the issue persists, the safety function cuts off motor power. • External Output Signal All models include an external output signal line:
Robot Model
Manual Model- JSP-RSD / JSP-MS Series: Compatible with 8 sizes (M1.0 to M3.0)
- JSP-R / JSP-M Series: Compatible with 3 to 4 sizes (M2.0 to M3.0 and M3.5 to M5.0)
• Broad Compatibility Compatible with a wide variety of ferrous, non-ferrous, and other screw types.
• Dependable Delivery Employs a horizontal method for smooth and steady screw presentation.
• Overload Protection Function Automatically corrects when too many screws are in the scooping chamber by reversing the motor briefly. If the issue persists, the safety function cuts off motor power. • External Output Signal All models include an external output signal line:Manual: Outputs signal when a screw is picked up. Robot: Outputs signal for screw presence/absence.
• Mounting Plates for Robot Installation Various types, directions, and heights of mounting plates are available for desktop robots. • Space-saving Compact size, ideal for small desktop robots with a narrow footprint.Manual
JSP-M Series JSP-MS Series Robot JSP-R Series JSP-RSD Series
JSP-M SeriesCompatible Screw Size：M2.0～M5.0
JSP-MS SeriesCompatible Screw Size：M1.0～M3.0
JSP-R SeriesCompatible Screw Size：M2.0～M5.0
JSP-RSD SeriesCompatible Screw Size：M1.0～M3.0
| Application | Manual | Robot | |||
|---|---|---|---|---|---|
| Series Name | JSP-MS Series | JSP-M Series | JSP-RSD Series | JSP-R Series | |
| Compatible Screw Size | M1.0～M3.0 | M2.0～M5.0 | M1.0～M3.0 | M2.0～M5.0 | |
| Maximum Screw Shaft Length | 20mm | 18mm | 20mm | 18mm | |
| Screw Supply Volume | 80cc | 150cc | 80cc | 150cc | |
| Cycle Time | - | - | 0.9sec | 1.5sec | |
| External Dimensions (W×D×H) | 123×181×145.9mm | 129.4×215×138.5mm | 123×181×145.9mm | 133.4×274×138.5mm | |
| Weight (with rail) | 2.9kg | 3.7kg | 3.0kg | 4.4kg | |
| Power Supply | Input | AC100～240V (single phase) 50/60Hz | |||
| Output | DC15V 2.4A AC adapter | ||||
| Operating Environment | Temperature | 0～40℃ | |||
| Humidity | 10～90％ | ||||
Specifications may be modified without prior notice.
