| Programmer | AF 9724 2 units |
| Maximum number of sockets | 32 |
| Target device | Write target device of AF9724 Flash microcontrollers, NOR / NAND Flash and Serial Flash, etc. of various manufacturers |
| Target package | Package size of maximum 20 mm x 20 mm (including lead), minimum 4 mm x 4 mm (without leads only mold) package size |
| Applicable tray | JEDEC compliant tray 20 trays |
| Tray stage | 4 trays (empty tray, supply tray, storage tray, NG tray) |
| Target socket | Open top type socket stroke: 8 mm or less Socket opening height: 12 to 20 mm or less Socket opening and closing force: 8.0 kg · f or less |
| Carrying capacity | 1 Device transportation, mounting, discharge, housing time (1 tray average) Open top socket: 2.5 seconds * Including image processing time. Tray transfer time is not included. Depends on target device, tray. |
| CCD camera | 4 units for socket position detection/device pick-up correction (2MP) 2units for marking and inspection (5MP) For 3D inspection (4MP) |
| Power supply / air | AC 200V 50A Three-phase 50/60 Hz / 0.5 MPa (External supply air is 0.39 MPa or more) |
| Size / Weight | Approximately D1170 × W2300 × H1420 mm (3 color patrites etc., except for protrusions) / about 1500 kg |
3D appearance inspection compatible programming system

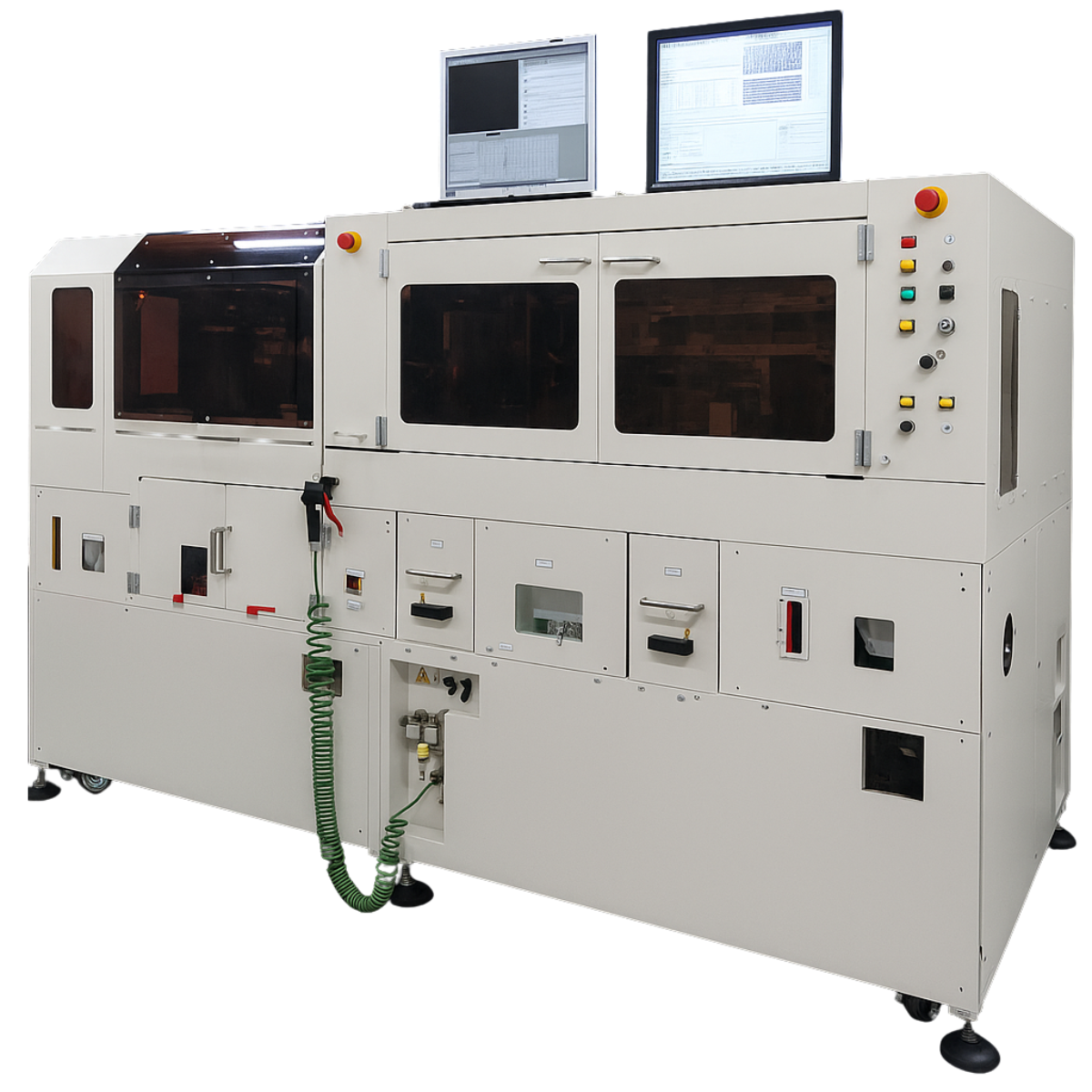

Flash Support Group is a top-tier manufacturer in the device programming sector, offering expertly designed manual and automated programmers tailored for engineering and manufacturing needs. With a focus on innovation and precision, Flash Support Group ensures efficient programming solutions for diverse applications, catering to a global clientele. Their commitment to quality and technology places them at the forefront of the industry.TEH2724-2LSC simultaneously handles data programming, laser marking and 3D appearance inspection. ・High-quality 4-head robot enables output of up to 1,160 pcs/hour (program + mark + inspection) ・Laser marking standard ・3D inspection detects bent leads and checks for coplanarity of leads and balls. ・OPTION - Marking inspection - Lead inspection - Barcode reader
Traceability The PC-based system enables monitoring of the operation status, tracing of the operation history, and data analysis. Wearable terminal (option) A watch-type wireless receiver for information of equipment failure or completion of operation. Useful when the plant has a loud noise or notification using sounds or displays is difficult.
