Laser marker for IC trays, supporting logos, QR codes, and 20-tray unmanned marking with image inspection

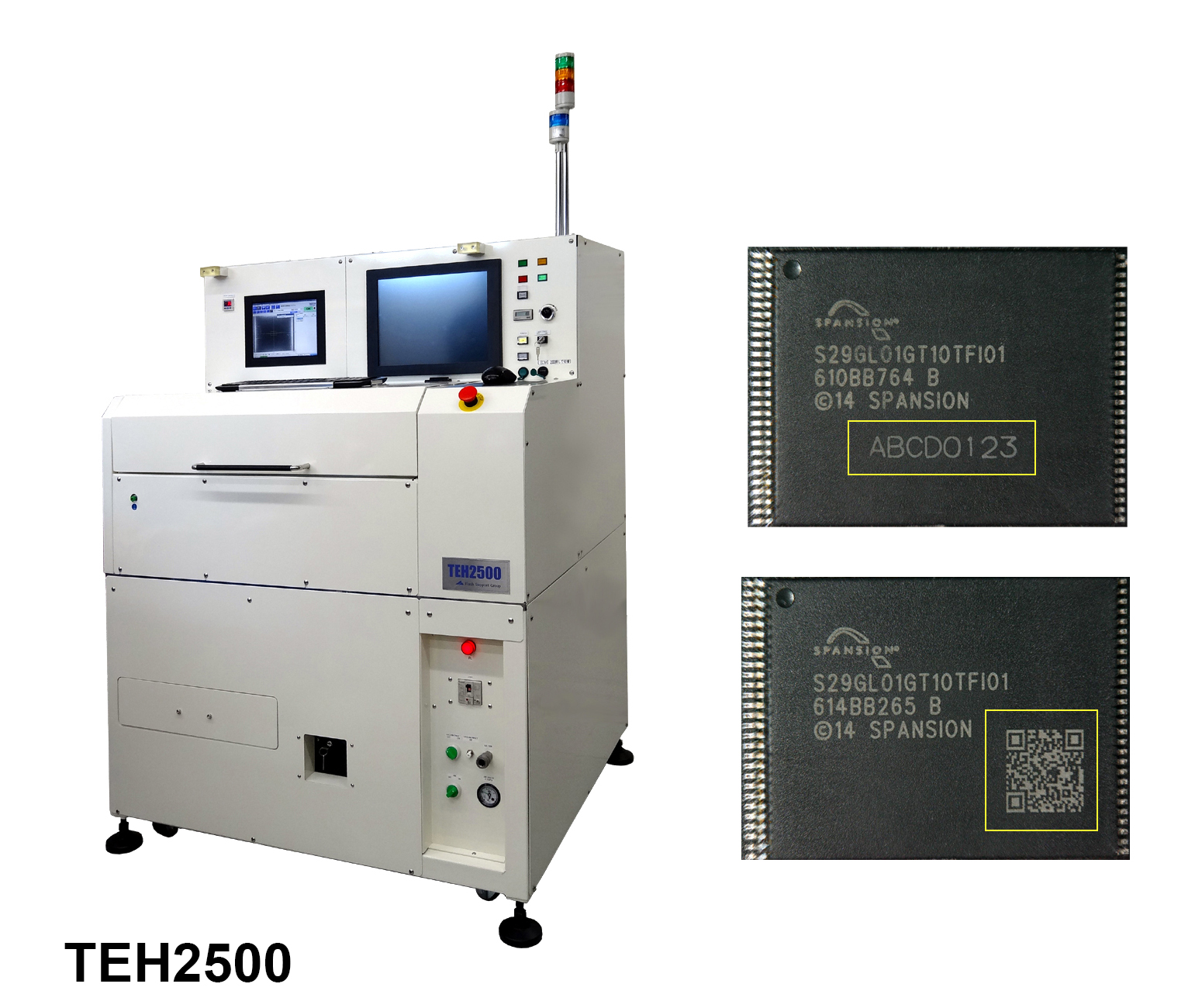

The TEH2500 is a high-precision laser marking system designed for IC chips on trays. It supports a wide range of marking formats including logos, special characters, QR codes, and 2D barcodes. With the ability to operate continuously and unmanned for up to 20 trays, it boosts production efficiency. A 5-megapixel CCD camera enables image recognition for accurate marking alignment and post-marking inspection. The laser marking is semi-permanent, making it ideal for traceability by printing essential data such as serial numbers, destinations, or lot codes on each chip. This system is a valuable asset for manufacturers aiming to improve quality control and automate labeling processes.| Mounting laser | KEYENCE MD-X2000 laser marker * It can be changed according to customer's request |
| Printing type | External character font, data character, serial number, bar code, QR code, logo image, BMP / PNG / TIF etc. |
| Loader (supply) /Unloader (storage) | Each 20 sheets stacking method |
| On-board camera | 5 million pixel CCD camera |
| Power supply / air | AC 200 V 3 phase 50/60 Hz 15 A / 0.5 MPa |
| Device size | D 900 mm × W 1, 200 mm × H 1, 500 mm About 350 kg |
